4.0 COMPONENT DIMENSIONS

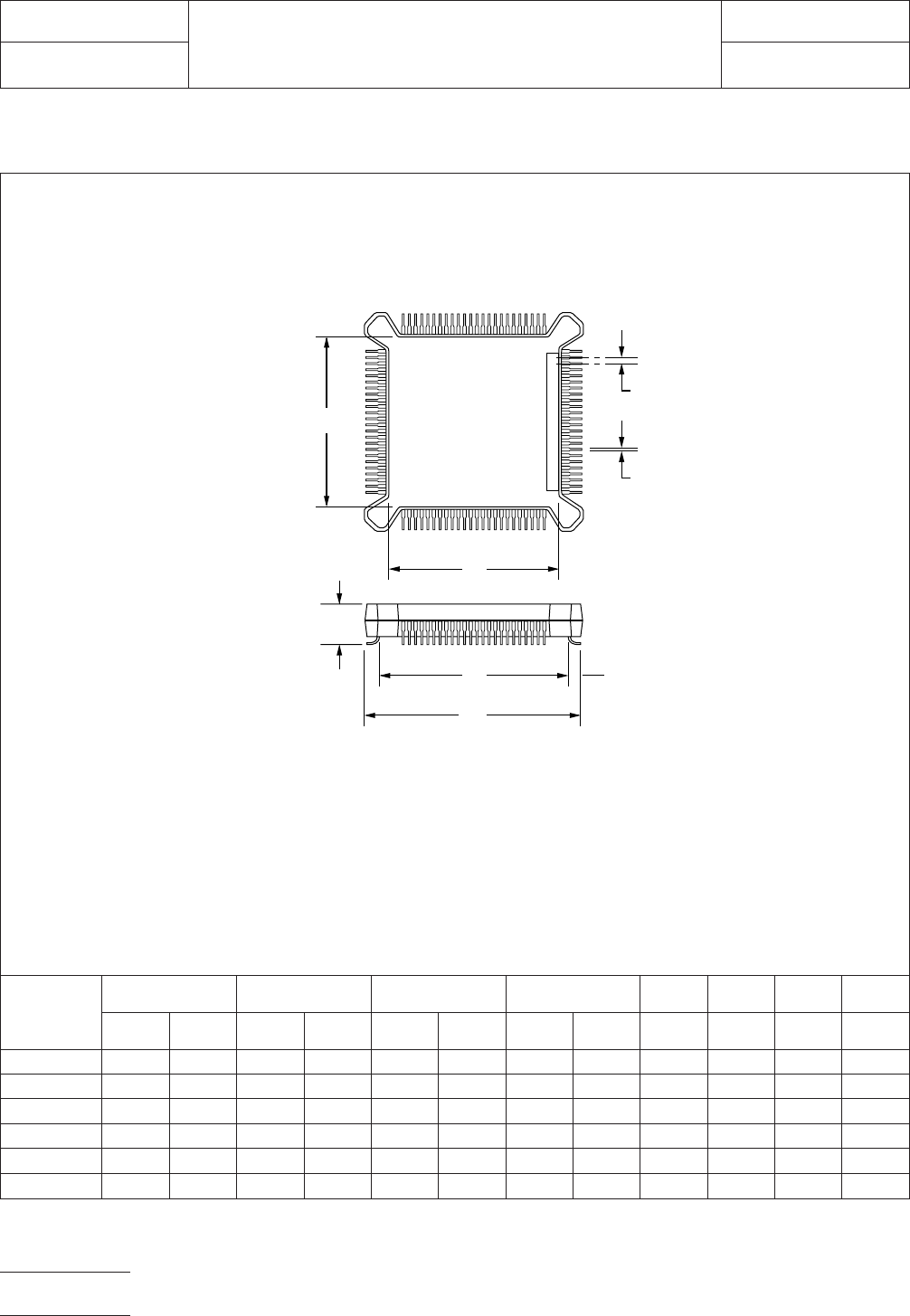

Figure 2 provides the component dimensions for PQFP components.
PQFP
Component
Identifier
(Pin Count)
L (mm) S (mm) W (mm) T (mm) A (mm) B (mm) E (mm) H (mm)
min max min max min max min max max max basic max
PQFP 84 19.55 20.05 17.55 18.16 0.20 0.30 0.75 1.00 16.80 16.80 0.635 4.57
PQFP 100 22.10 22.60 20.10 20.71 0.20 0.30 0.75 1.00 19.35 19.35 0.635 4.57
PQFP 132 27.20 27.70 25.25 25.81 0.20 0.30 0.75 1.00 24.40 24.40 0.635 4.57
PQFP 164 32.25 32.75 30.25 30.86 0.20 0.30 0.75 1.00 29.40 29.40 0.635 4.75
PQFP 196 37.35 37.85 35.35 35.96 0.20 0.30 0.75 1.00 34.40 34.40 0.635 4.57
PQFP 244 41.65 42.15 39.65 40.26 0.20 0.30 0.75 1.00 45.40 45.40 0.635 4.57
Figure 2 PQFP dimensions
S
L
H
T
W
E
A
B
IPC-782-11-1-2
IPC-SM-782
Subject
PQFP
Date
5/96
Section
11.1
Revision
A
Page2of4
5.0 LAND PATTERN DIMENSIONS

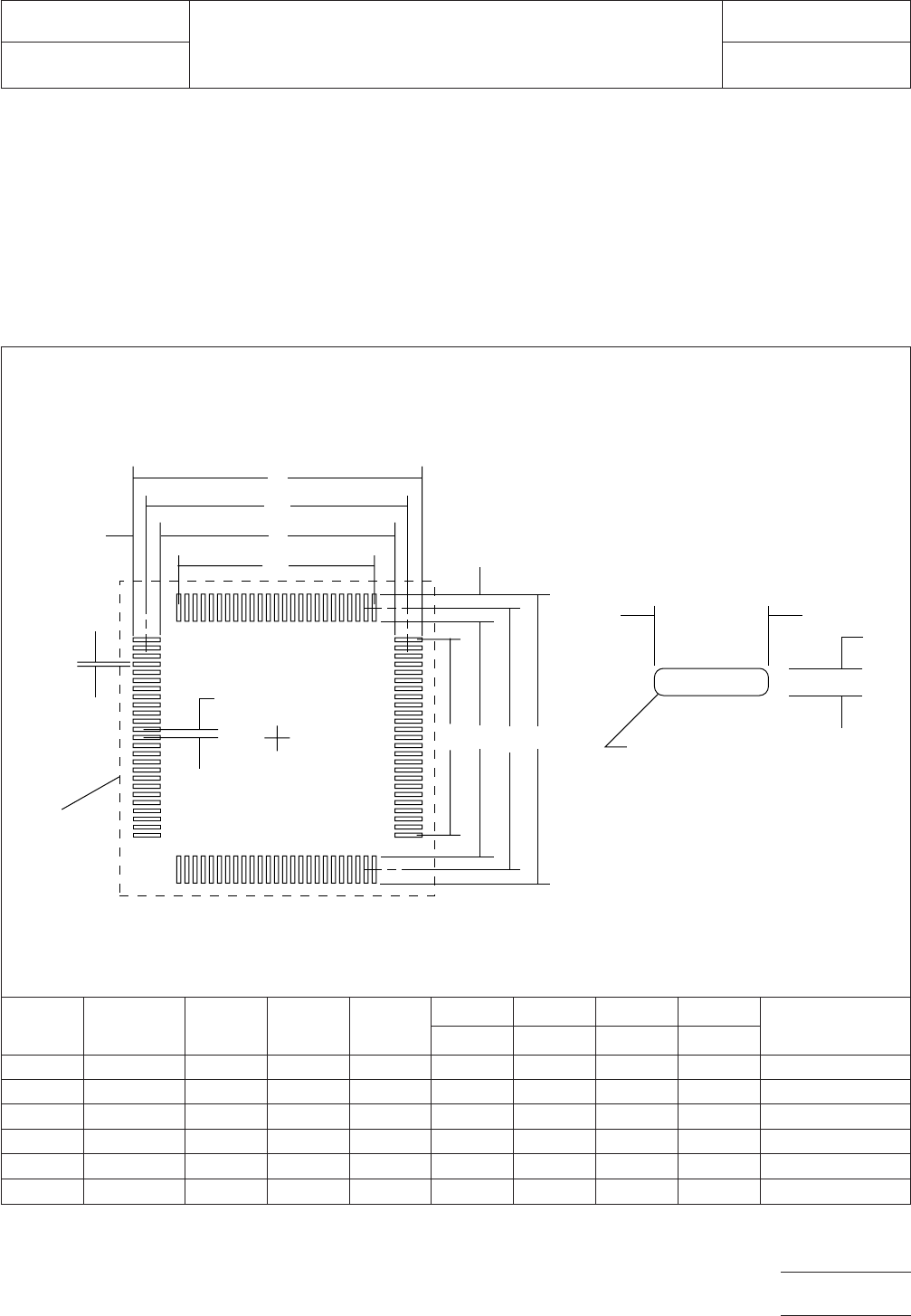

Figure 3 provides the land pattern dimensions for PQFP com-
ponents. These numbers represent industry consensus on the
best dimensions based on empirical knowledge of fabricated
land patterns.
In the table, the dimensions shown are at maximum material
condition (MMC). The least material condition (LMC) should
not exceed the fabrication (F) allowance shown on page 4.
The LMC and the MMC provide the limits for each dimension.
The dotted line in Figure 3 shows the grid placement court-
yard which is the area required to place land patterns and
their respective components in adjacent proximity without
interference or shorting. Numbers in the table represent the
number of grid elements (each element is 0.5 by 0.5 mm) in
accordance with the international grid detailed in IEC publica-
tion 97.
RLP No.
Component
Identifier
(Pin Count) Z (mm) G (mm) X (mm)
Y (mm) C (mm) D (mm) E (mm)
Placement Grid
(No. of Grid
Elements)
ref ref ref basic
530A PQFP 84 20.60 17.00 0.35 1.80 18.80 12.70 0.63 44X44
531A PQFP 100 23.20 19.60 0.35 1.80 21.40 15.24 0.63 50X50
532A PQFP 132 28.20 24.60 0.35 1.80 26.40 20.32 0.63 58X58
533A PQFP 164 33.40 29.80 0.35 1.80 31.60 25.40 0.63 68X68
534A PQFP 196 38.40 34.80 0.35 1.80 36.60 30.48 0.63 80X80
535A PQFP 244 42.80 39.20 0.35 1.80 41.00 38.10 0.63 88X88
Figure 3
E
▼
▼
▼
▼
X
Y
Z
G
D
▼
▼
▼
▼
▼
Y
X
Full radius optional
▼
▼
▼
▼
▼
Grid
placement
courtyard
▼
▼
▼
C
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
Y
DGCZ
IPC-782-11-1-3
IPC-SM-782
Subject
PQFP
Date
5/96
Section
11.1
Revision
A
Page3of4
6.0 TOLERANCE AND SOLDER JOINT ANALYSIS
Figure 4 provides an analysis of tolerance assumptions and
resultant solder joints based on the land pattern dimensions
shown in Figure 3. Tolerances for the component dimensions,
the land pattern dimensions (fabrication tolerances on the
interconnecting substrate), and the component placement
equipment accuracy are all taken into consideration.
Figure 4 provides the solder joint minimums for toe, heel, and
side fillets, as discussed in Section 3.3. The tolerances are
addressed in a statistical mode, and assume even distribution
of the tolerances for component, fabrication, and placement
accuracy.
Individual tolerances for fabrication (‘‘F’’) and component
placement equipment accuracy (‘‘P’’) are assumed to be as
given in the table. These numbers may be modified based on
user equipment capability or fabrication criteria. Component
tolerance ranges (C
L
,C
S
, and C
W
) are derived by subtracting
minimum from maximum dimensions given in Figure 2. The
user may also modify these numbers, based on experience
with their suppliers. Modification of tolerances may result in
alternate land patterns (patterns with dimensions other than
the IPC registered land pattern dimensions).
The dimensions for minimum solder fillets at the toe, heel, or
side (J
T
,J
H
,J
S
) have been determined based on industry
empirical knowledge and reliability testing. Solder joint
strength is greatly determined by solder volume. An observ-
able solder fillet is necessary for evidence of proper wetting.
Thus, the values in the table usually provide for a positive sol-
der fillet. Nevertheless, the user may increase or decrease the
minimum value based on process capability.
RLP No.
Tolerance
Asssumptions
(mm)
Solder Joint
Toe (mm) Heel (mm) Side (mm)
FPC
L
J
T
min J
T
max C
S
J
H
min J
H
max C
W
J
S
min J
S
max
530A 0.10 0.10 0.50 0.27 0.53 0.61 0.27 0.58 0.10 -0.01 0.08
531A 0.10 0.10 0.50 0.29 0.55 0.61 0.24 0.56 0.10 -0.01 0.08
532A 0.10 0.10 0.50 0.24 0.50 0.61 0.29 0.61 0.10 -0.01 0.08
533A 0.10 0.10 0.50 0.32 0.58 0.61 0.22 0.53 0.10 -0.01 0.08
534A 0.10 0.10 0.50 0.27 0.53 0.61 0.27 0.58 0.10 -0.01 0.08
535A 0.10 0.10 0.50 0.32 0.57 0.61 0.22 0.53 0.10 -0.01 0.08
Figure 4 Tolerance and solder joint analysis
Zmax
Lmin
▼
▼
▼
▼
1
/2 T
T
J
T
min
Zmax = Lmin + 2J
T
min + T
T
Where:
J
T
min = Minimum toe fillet
T
T
= Combined tolerances
at toe fillet
Smax
J
H
min
Gmin = Smax - 2J
H
min - T
H
Where:
J
H
min = Minimum heel fillet
T
H
= Combined tolerances
at heel fillet
1
/2 T
H
Xmax
Xmax = Wmin + 2J
S
min + T
S
Where:
J
S
min = Minimum side fillet
T
S
= Combined tolerances
at side fillet
▼
▼
Toe Fillet
▼
▼
▼
Heel Fillet Side Fillet
▼
▼
▼
▼
▼
J
T
max
J
H
max
J
S
min
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
Gmin
▼
1
/2 T
S
J
S
max
▼
▼
▼
Wmin
▼
IPC-782-11-1-4
IPC-SM-782
Subject
PQFP
Date
5/96
Section
11.1
Revision
A
Page4of4
