5.0 LAND PATTERN DIMENSIONS Figure 3 provides the land pattern dimensions for metal elec- trode face components (MELFs). These numbers represent industry consensus on the best dimensions based on empiri- cal knowledge of…

100%1 / 228

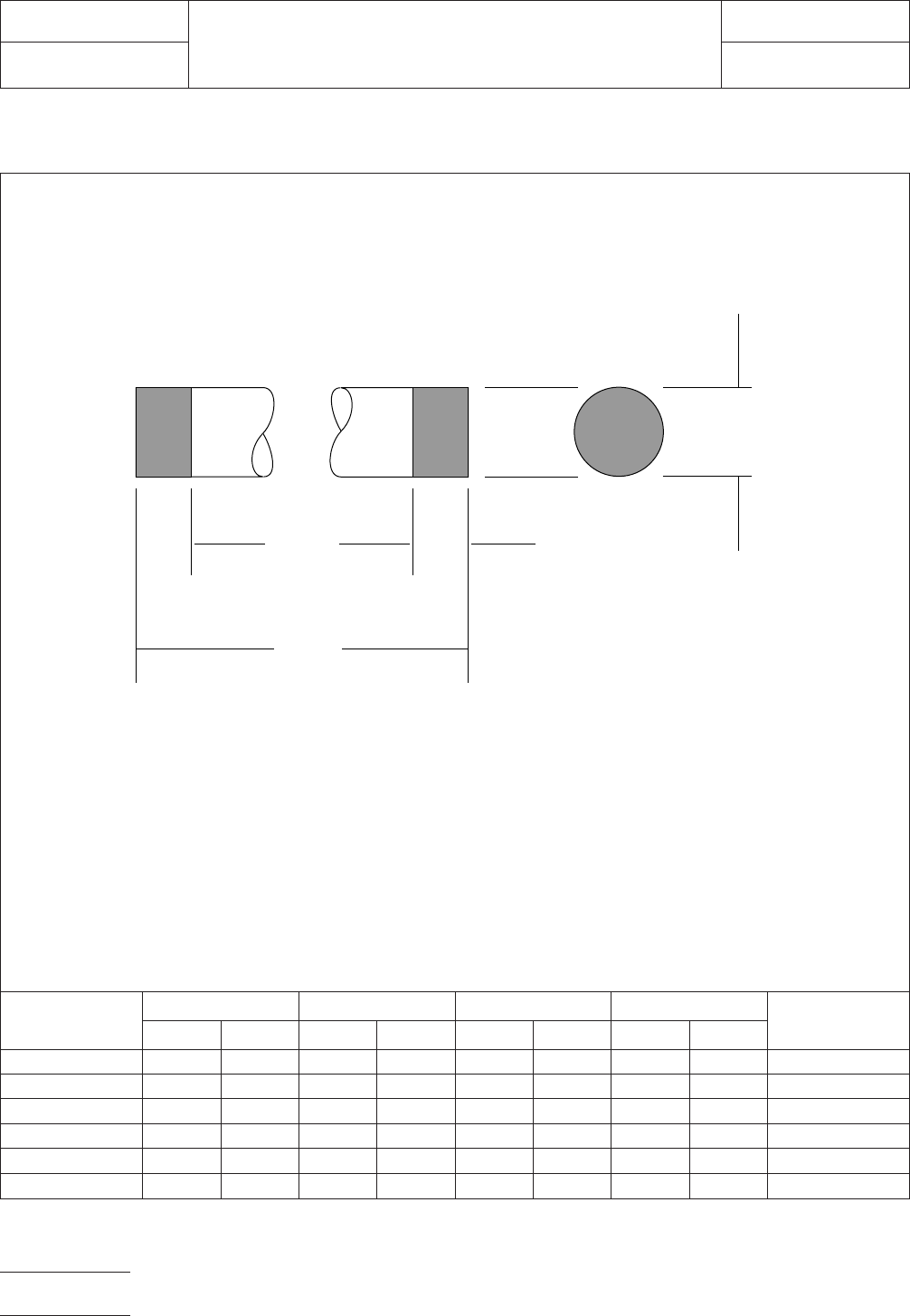

4.0 COMPONENT DIMENSIONS
Figure 2 provides the component dimensions for metal electrode face components (MELFs).
Component
Identifier (mm)
[in]
L (mm) S (mm) W (mm) T (mm)
Component Typemin max min max min max min max
SOD-80/MLL 34 3.30 3.70 2.20 2.65 1.60 1.70 0.41 0.55 Diode
SOD-87/MLL 41 4.80 5.20 3.80 4.25 2.44 2.54 0.36 0.50 Diode
2012 [0805] 1.90 2.10 1.16 1.44 1.35 1.45 0.23 0.37 0.10 mW resistor
3216 [1206] 3.00 3.40 1.86 2.31 1.75 1.85 0.43 0.57 0.25 mW resistor
3516 [1406] 3.30 3.70 2.16 2.61 1.55 1.65 0.43 0.57 0.12 W resistor
5923 [2309] 5.70 6.10 4.36 4.81 2.40 2.50 0.53 0.67 0.25 W resistor
Figure 2 Metal electrode face component dimensions
W (DIA.)
S
L
T
▼
▼
▼
▼
▼
▼
▼
IPC-782-8-5-2
IPC-SM-782
Subject
Metal Electrode Face (MELF) Components
Date
5/96
Section
8.5
Revision
A
Page2of4

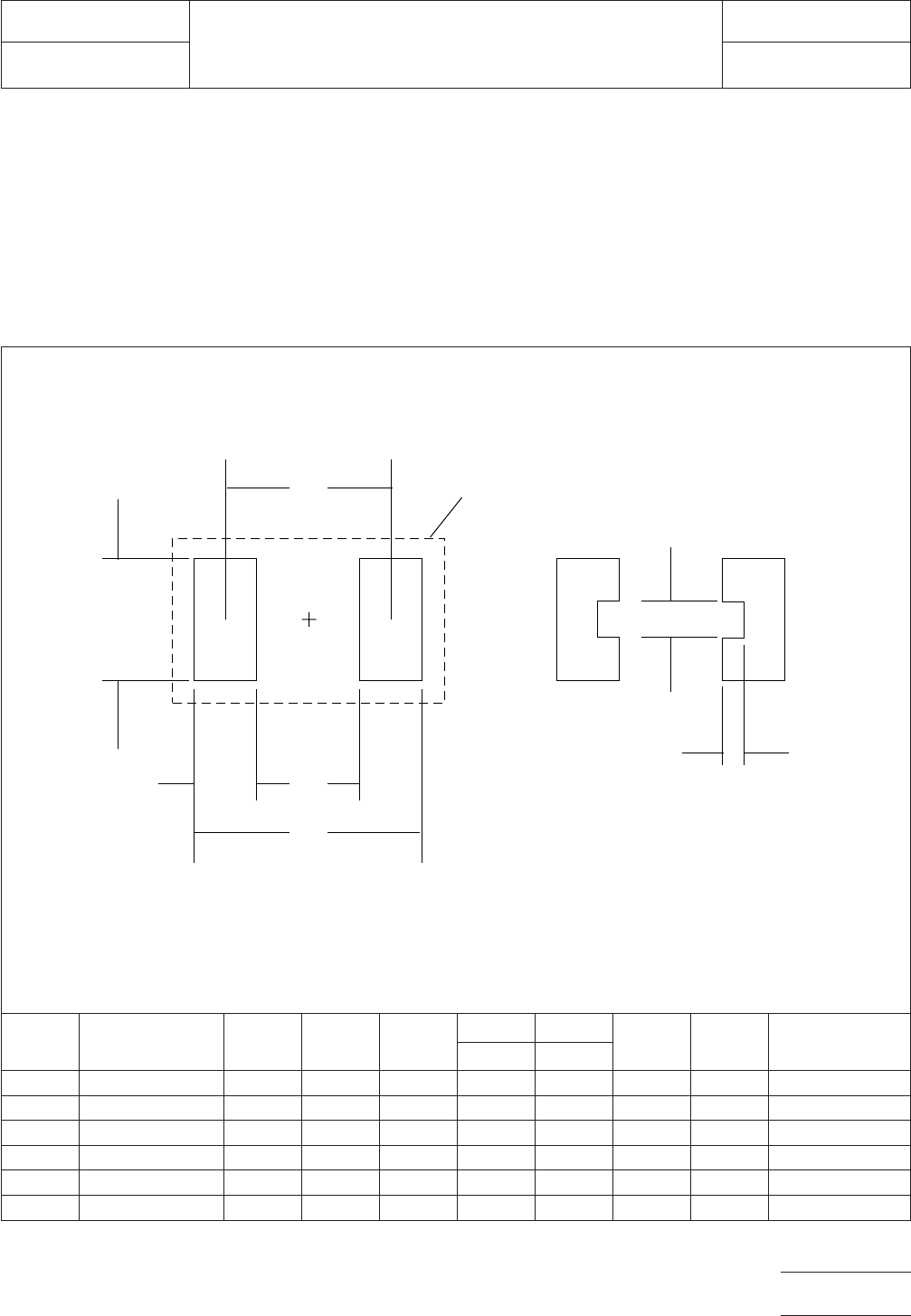

5.0 LAND PATTERN DIMENSIONS
Figure 3 provides the land pattern dimensions for metal elec-
trode face components (MELFs). These numbers represent
industry consensus on the best dimensions based on empiri-
cal knowledge of fabricated land patterns.
In the table, the dimensions shown are at maximum material
condition (MMC). The least material condition (LMC) should
not exceed the fabrication (F) allowance shown on page 4.
The LMC and the MMC provide the limits for each dimension.
The dotted line in Figure 3 shows the grid placement court-
yard which is the area required to place land patterns and
their respective components in adjacent proximity without
interference or shorting. Numbers in the table represent the
number of grid elements (each element is 0.5 by 0.5 mm) in
accordance with the international grid detailed in IEC publica-
tion 97.
RLP No.
Component
Identifier (mm) [in] Z (mm) G (mm) X (mm)
Y (mm) C (mm)
AB
Placement Grid
(No. of Grid
Elements)ref ref
200A SOD-80/MLL-34 4.80 2.00 1.80 1.40 3.40 0.50 0.50 6x12
201A SOD-87/MLL-41 6.30 3.40 2.60 1.45 4.85 0.50 0.50 6x14
202A 2012 [0805] 3.20 0.60 1.60 1.30 1.90 0.50 0.35 4x8
203A 3216 [1206] 4.40 1.20 2.00 1.60 2.80 0.50 0.55 6x10
204A 3516 [1406] 4.80 2.00 1.80 1.40 3.40 0.50 0.55 6x12
205A 5923 [2309] 7.20 4.20 2.60 1.50 5.70 0.50 0.65 6x18
Figure 3 Metal electrode face component land pattern dimensions
▼
▼
▼
▼
▼
▼
▼
▼
▼
C
G
Z
X
Y
▼
▼
▼
▼
A
Optional detent pattern
B
▼
Grid placement
courtyard
IPC-782-8-5-3
IPC-SM-782
Subject
Metal Electrode Face (MELF) Components
Date
5/96
Section
8.5
Revision
A
Page3of4

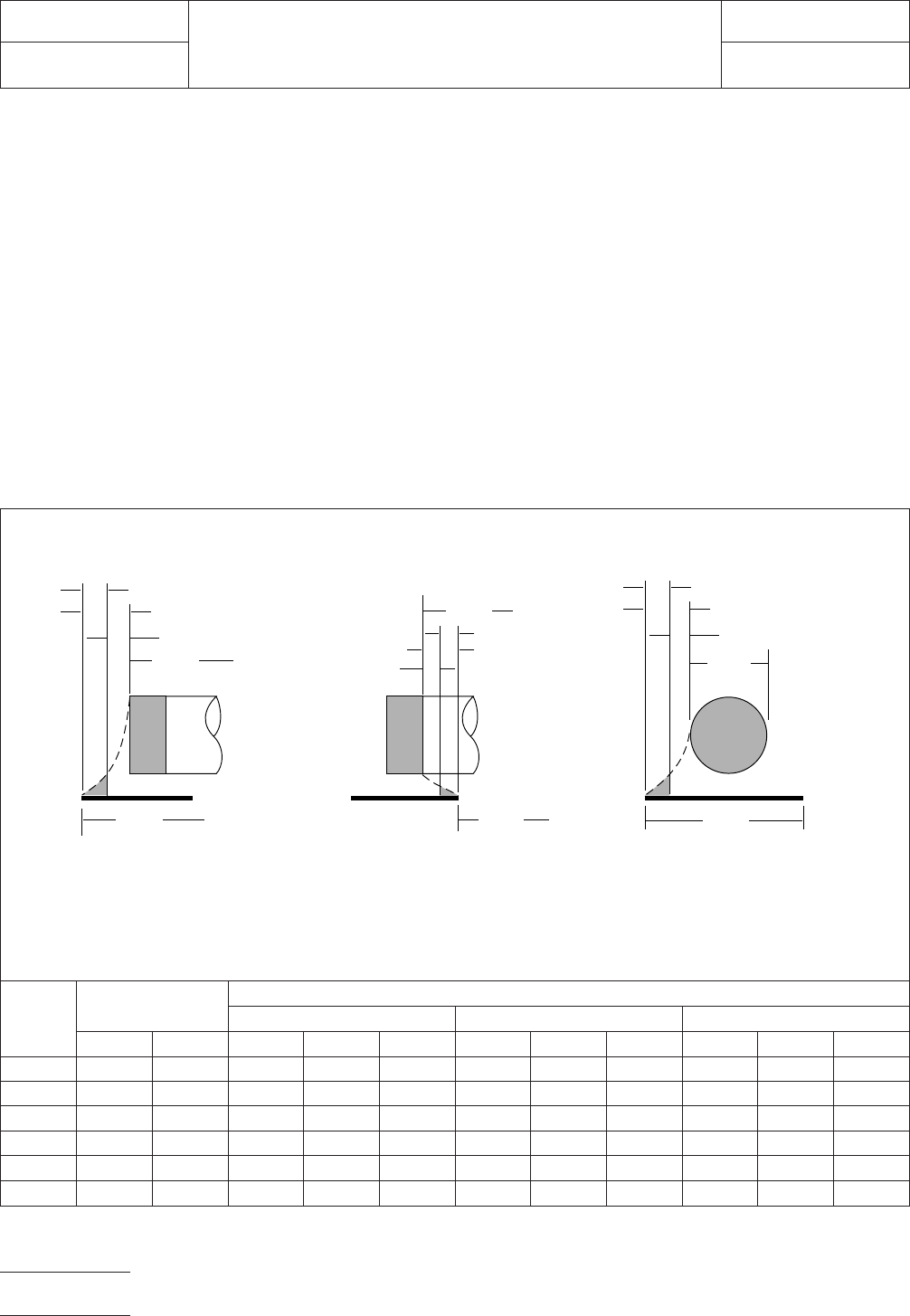

6.0 TOLERANCE AND SOLDER JOINT ANALYSIS
Figure 4 provides an analysis of tolerance assumptions and
resultant solder joints based on the land pattern dimensions
shown in Figure 3. Tolerances for the component dimensions,
the land pattern dimensions (fabrication tolerances on the
interconnecting substrate), and the component placement
equipment accuracy are all taken into consideration.
Figure 4 provides the solder joint minimums for toe, heel, and
side fillets, as discussed in Section 3.3. The tolerances are
addressed in a statistical mode, and assume even distribution
of the tolerances for component, fabrication, and placement
accuracy.
Individual tolerances for fabrication (‘‘F’’) and component
placement equipment accuracy (‘‘P’’) are assumed to be as
given in the table. These numbers may be modified based on
user equipment capability or fabrication criteria. Component
tolerance ranges (C
L
,C
S
, and C
W
) are derived by subtracting
minimum from maximum dimensions given in Figure 2. The
user may also modify these numbers, based on experience
with their suppliers. Modification of tolerances may result in
alternate land patterns (patterns with dimensions other than
the IPC registered land pattern dimensions).
The dimensions for minimum solder fillets at the toe, heel, or
side (J
T
,J
H
,J
S
) have been determined based on industry
empirical knowledge and reliability testing. Solder joint
strength is greatly determined by solder volume. An observ-
able solder fillet is necessary for evidence of proper wetting.
Thus, the values in the table usually provide for a positive sol-
der fillet. Nevertheless, the user may increase or decrease the
minimum value based on process capability.
RLP No.
Tolerance
Assumptions (mm)
Solder Joint
Toe (mm) Heel (mm) Side (mm)
FPC
L
J
T
min J
T
max C
S
J
H
min J
H
max C
W
J
S
min J
S
max
200A 0.10 0.10 0.40 0.54 0.96 0.45 0.09 0.56 0.10 0.01 0.19
201A 0.10 0.10 0.40 0.54 0.96 0.45 0.19 0.66 0.10 -0.01 0.17
202A 0.10 0.10 0.20 0.53 0.77 0.28 0.26 0.58 0.10 0.04 0.21
203A 0.10 0.10 0.40 0.49 0.91 0.45 0.32 0.79 0.10 0.04 0.21
204A 0.10 0.10 0.40 0.54 0.96 0.45 0.07 0.54 0.10 0.04 0.21
205A 0.10 0.10 0.40 0.54 0.96 0.45 0.07 0.54 0.10 0.01 0.19
Figure 4 Tolerance and solder joint analysis
Wmin
Lmin
▼
▼
Zmax
▼
▼
1
/2 T
T
J
T
min
Zmax = Lmin + 2J
T
min + T
T
Where:
J
T
min = Minimum toe fillet
T
T
= Combined tolerances
at toe fillet
Smax
J
H
min
Gmin = Smax - 2J
H
min - T
H
Where:
J
H
min = Minimum heel fillet
T
H
= Combined tolerances
at heel fillet
1
/2 T
H
Xmax
Xmax = Wmin + 2J
S
min + T
S
Where:
J
S
min = Minimum side fillet
T
S
= Combined tolerances
at side fillet
▼
▼
Toe Fillet
1
/2 T
S
▼
▼
▼
Heel Fillet Side Fillet
▼
▼
▼
▼
▼
J
T
max
J
H
max
J
S
max
J
S
min
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
Gmin
▼
▼
IPC-782-8-5-4
IPC-SM-782
Subject
Metal Electrode Face (MELF) Components
Date
5/96
Section
8.5
Revision
A
Page4of4
