6.0 TOLERANCE AND SOLDER JOINT ANALYSIS
Figure 4 provides the solder joint minimums for toe, heel, and
side fillets, as discussed in Section 3.3. The tolerances are
addressed in a statistical mode, and assume even distribution
of the tolerances for component, fabrication, and placement
accuracy.
Figure 4 provides the solder joint minimums for toe, heel, and
side fillets, as discussed in Section 3.3. The tolerances are
addressed in a statistical mode, and assume even distribution
of the tolerances for component, fabrication, and placement
accuracy.
Individual tolerances for fabrication (‘‘F’’) and component
placement equipment accuracy (‘‘P’’) are assumed to be as
given in the table. These numbers may be modified based on
user equipment capability or fabrication criteria. Component
tolerance ranges (C
L
,C
S
, and C
W
) are derived by subtracting
minimum from maximum dimensions given in Figure 2. The
user may also modify these numbers, based on experience
with their suppliers. Modification of tolerances may result in
alternate land patterns (patterns with dimensions other than
the IPC registered land pattern dimensions).
The dimensions for minimum solder fillets at the toe, heel, or
side (J
T
,J
H
,J
S
) have been determined based on industry
empirical knowledge and reliability testing. Solder joint
strength is greatly determined by solder volume. An observ-
able solder fillet is necessary for evidence of proper wetting.
Thus, the values in the table usually provide for a positive sol-
der fillet. Nevertheless, the user may increase or decrease the
minimum value based on process capability.
RLP No.
Tolerance
Assumptions (mm)
Solder Joint
Heel (mm) Toe (mm) Side (mm)
FPC
S
J
H
min J
H
max C
L
J
T
min J
T
max C
W
J
S
min J
S
max
480-487A 0.10 0.10 0.38 0.31 0.51 0.68 -0.32 0.03 0.13 -0.01 0.11
490-497A 0.10 0.10 0.38 0.27 0.48 0.68 -0.28 0.07 0.13 -0.01 0.11
500-507A 0.10 0.10 0.38 0.24 0.44 0.68 -0.27 0.10 0.13 -0.01 0.11
510-517A 0.10 0.10 0.38 0.30 0.51 0.68 -0.31 0.04 0.13 -0.01 0.11

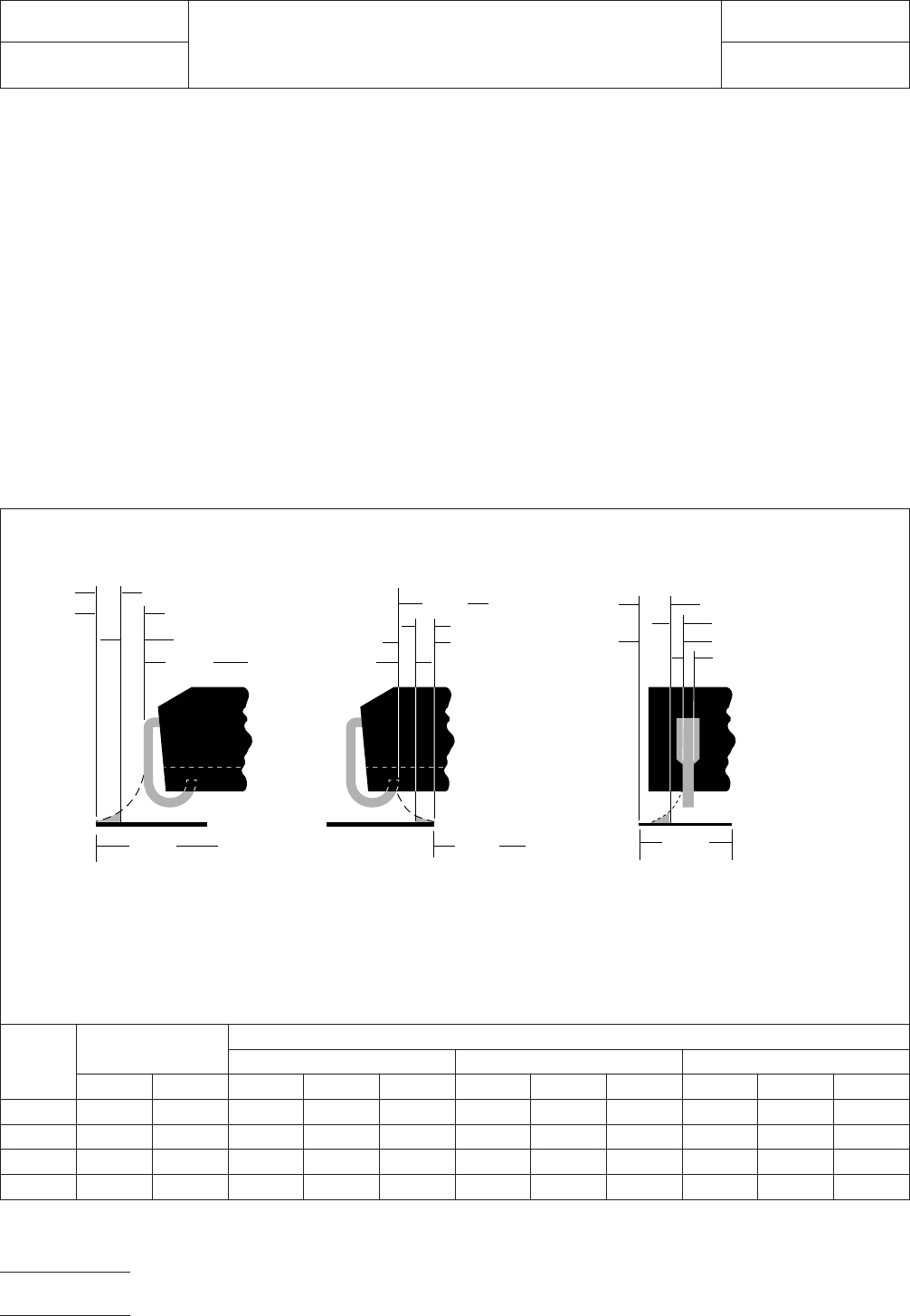

Figure 4 Tolerance and solder joint analysis
Zmax = Lmin + 2J
T
min + T
T
Where:
J
T
min = Minimum toe fillet
T
T
= Combined tolerances
at toe fillet
Gmin = Smax - 2J
H
min - T
H
Where:
J
H
min = Minimum heel fillet
T
H
= Combined tolerances
at heel fillet
Xmax
Xmax = Wmin + 2J
S
min + T
S
Where:
J
S
min = Minimum side fillet
T
S
= Combined tolerances
at side fillet
▼
▼
Toe Fillet
1
/2 T
S
Heel Fillet Side Fillet
J
S
max
▼
▼
▼
▼
▼
▼
▼
J
S
min
Lmin
▼
▼
Zmax
▼
▼
1
/2 T
T
J
T
min
Smax
J
H
min
1
/2 T
H
▼
▼
▼
▼
▼
▼
▼
▼
J
T
max
J
H
max
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
▼
Gmin
▼
Wmin
▼
IPC-782-10-1-4
IPC-SM-782
Subject
SOJ
Date
5/96
Section
10.1
Revision
A
Page6of6
