Fitting the Vacuum Pump 3.3.3 Fitting the Vacuum Pump Connection Unit SX1/2 [03079949-x x] on Machines Kxxx / L xxx / Mxxx Preparatory Steps Vacuum Pump Vakuumpumpe 103 3.3.3.1 3 . 3 . 3 . 1 F it t in g t h e V a c u u m…
Fitting the Vacuum Pump
Preparatory Steps 3.3.3 Fitting the Vacuum Pump Connection Unit SX1/2 [03079949-xx] on Ma-
102 Vacuum Pump Vakuumpumpe
1. x103
2. x102
3. Cable [03087337-xx]
4. Cable [03079997-xx]
► Use the Klettostar tape to fix the connection vacuum
pump unit SX1/SX2 [03079949-xx] (1) in the front half
of the plate.
NOTICE
New connection units
Newer versions of the connection units need to be disassembled from the mounting plate first!
NOTICE
Cable for the vacuum pump connection unit
The cable for the vacuum pump connection unit [03087337-xx] is no longer needed from ma-
chine number N001.
Fitting the Vacuum Pump
3.3.3 Fitting the Vacuum Pump Connection Unit SX1/2 [03079949-xx] on Machines Kxxx / Lxxx / Mxxx Preparatory Steps
Vacuum Pump Vakuumpumpe 103
3.3.3.1
3.3.3.1 Fitting the Vacuum Pump Connection Unit SX1/SX2 [03079949-xx] (Machine Serial No. Nxxx)
Fitting the Vacuum Pump Connection Unit SX1/SX2 [03079949-xx] (Machine Serial No. Nxxx)

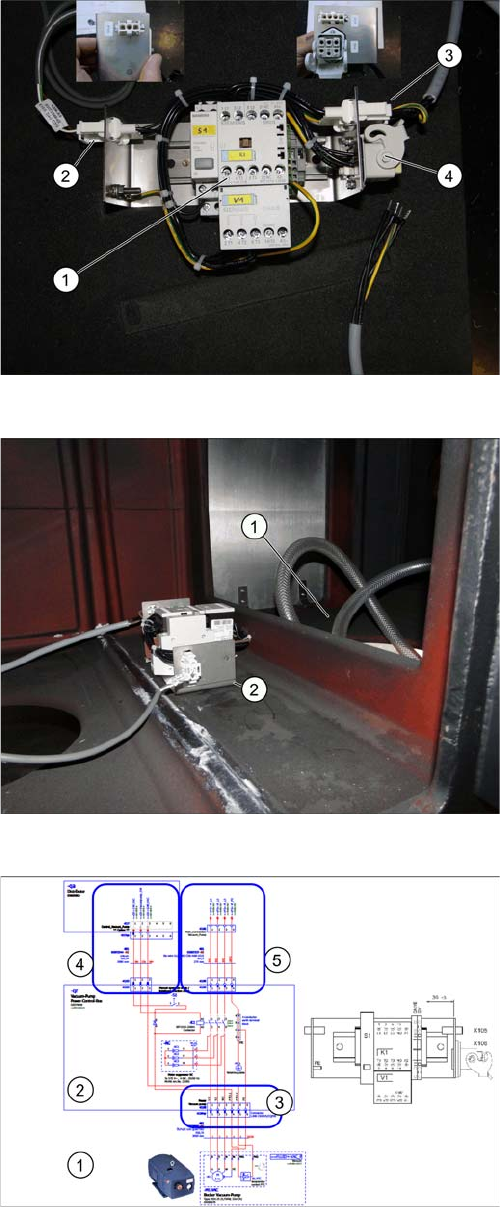

Connections on the vacuum control box
► Establish the electrical connections to the connection
unit vacuum pump
SX1/SX2 [03079949-xx] (1).
1. Vacuum pump connection unit SX1/SX2 [03079949-
xx]
2. Cable for the vacuum pump control [03072544-xx]
W2 X103 sector 2 (in the machine base at the instal-
lation position of the connection unit) <- from X17qa
distributor
3. AC power cable for the vacuum pump [03113252-xx]
(3) W6 X105 -> to (4) (The cable is already present in
the machine base at the installation position of the
connection unit.).
4. Connect the power cable of the vacuum pump
[03079997-xx] (4) -> to X95 (vacuum pump).
Position of the vacuum pump control box
► Place the connection unit of the vacuum pump SX1/
SX2 [03079949-xx] in the machine base.
► Fix the connection unit with the Klettostar tape.
Legend:
1. Position of the vacuum pump
2. Position of the vacuum pump connection unit SX1/
SX2 [03079949-xx]
Overview of the vacuum pump connections
Legend:
1. Vacuum pump
2. Vacuum pump connection unit SX1/SX2 [03079949-
xx]
3. Cable for the vacuum pump control [03072544-02]
W2 X103 present
4. AC power cable for the vacuum pump [03113252-xx]
X105 <-> X96
5. Vacuum pump cable - power control box [03079997-
xx] X106qr <-> pump
Fitting the Vacuum Pump
Preparatory Steps 3.3.4 Work to Distributor
104 Vacuum Pump Vakuumpumpe
3.3.4
3.3.4 Work to Distributor
Work to Distributor

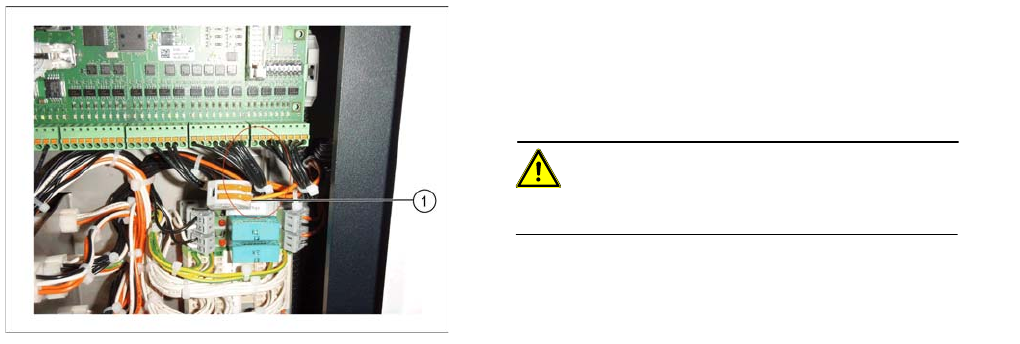

► Remove the center cover from the control computer
side.
► Unplug wire 8 from terminal 3 and secure wire 8 with
the WAGO 2-conductor connection terminal
[03090581-xx] (1).
CAUTION!
Wire 8 conducts 24 V voltage.
