Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
16
5 Configuration with MES and BGK
NOTICE
VIH files provided by the customer are interpreted by software running at the Line
Computer using the "MES" interface provided by the ASM Board Gate Keeper.
No placement machine in the line has to process those VIH files.
5.1 SIPLACE VIH XML Wrapper
The SIPLACE VIH XML Wrapper is a converter whose purpose is to use customer-defined VIH
formats (please refer to chapter 6 File Description and Mapping). It works with internal and external
barcode readers as well.
The official interface for doing VIH is providing panel names to be omitted, as defined in SIPLACE
Pro, to the BoardGateKeeper via a Web interface. The SIPLACE VIH XML Wrapper can also
handle row and column positions by finding out the name of the corresponding panel in SIPLACE
Pro.
The SIPLACE VIH XML Wrapper runs as a Windows service in the background. There is a tray
icon displaying the status.
Restrictions
– The board must not have any placements directly on the board side. All placements must be
within some panel.
– If a panel is not described in the inkspot file, it is placed.
5.1.1 Installing the SIPLACE VIH XML Wrapper
Perform the following steps to install the SIPLACE VIH XML Wrapper:
► Run the Siplace.VihXmlWrapper.Setup.msi.
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
17
The setup wizard starts.
Figure 5-1: Welcome wizard
► Click Next> to continue.
The following dialog box is displayed.
Figure 5-2: Selecting installation folder
► Select the installation folder.
► Select if you want to install the program for all users (Everyone) or exclusively for you (Just me)
on this computer.
► Click Next> to continue.
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
18
The following dialog box is displayed.

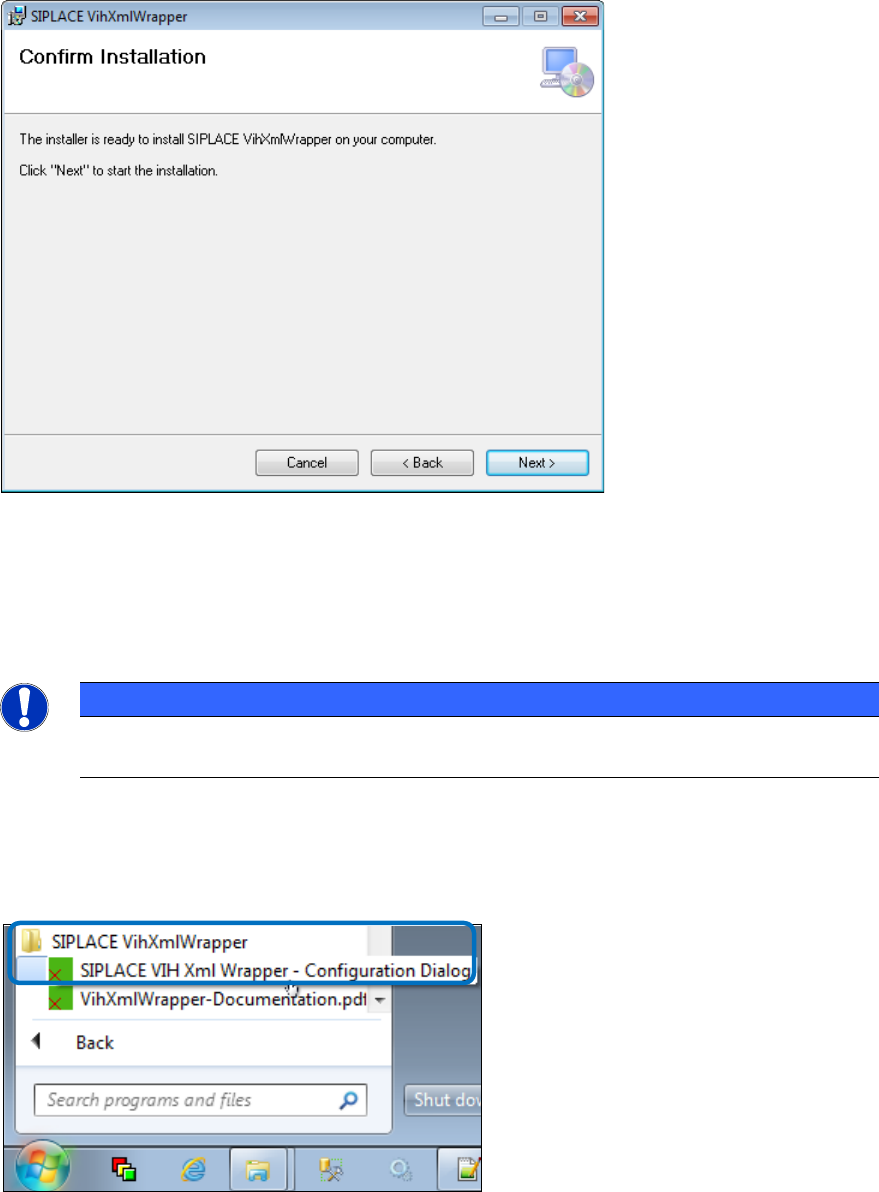

Figure 5-3: Confirming installation
► Click Next> to confirm and start the installation.
5.1.2 Configuring the SIPLACE VIH XML Wrapper
NOTICE
Regarding the configuration, you can always click into a question field and receive help
information in the bottom part of the dialog.
Perform the following steps to configure the SIPLACE VIH XML Wrapper:
► Open the configuration dialog by clicking on Start – All Programs – SIPLACE VihXmlWrapper –
SIPLACE VIH XmlWrapper – Configuration Dialog.
Figure 5-4: Opening the configuration dialog
