Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition 27 ► Click Add to add a barcode reader. Figure 5-22: Adding a barcode rea der
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
26
► Add a line in the Line Settings tab.
Figure 5-20: Adding a line
► Select Generate Board Events for that line and Interlocking Mode under Line Properties.
Figure 5-21: Setting line properties
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
27
► Click Add to add a barcode reader.
Figure 5-22: Adding a barcode reader
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
28

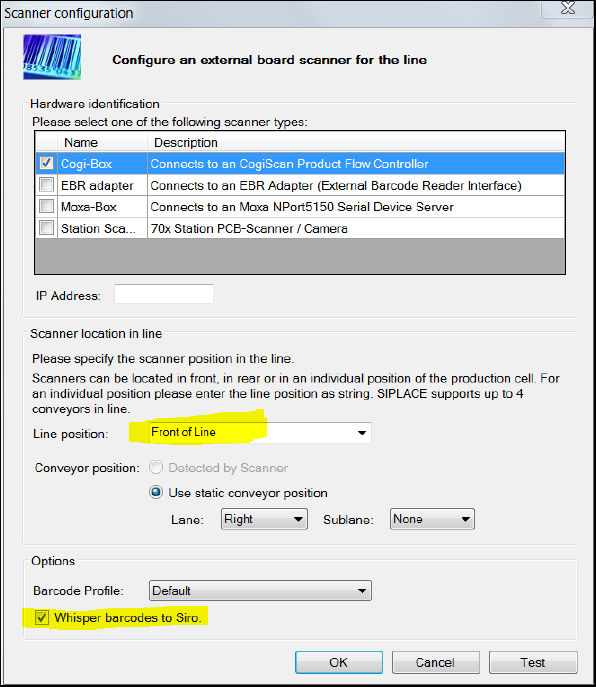

► Specify the scanner settings.
► External barcode readers must be in Line position: Front of Line.
► Select the Whisper barcodes to Sirio option for external barcode readers.
► If you read barcodes with the PCB camera or with cameras in the input conveyor, select Station
Scanner.
Figure 5-23: Configuring barcode reader
