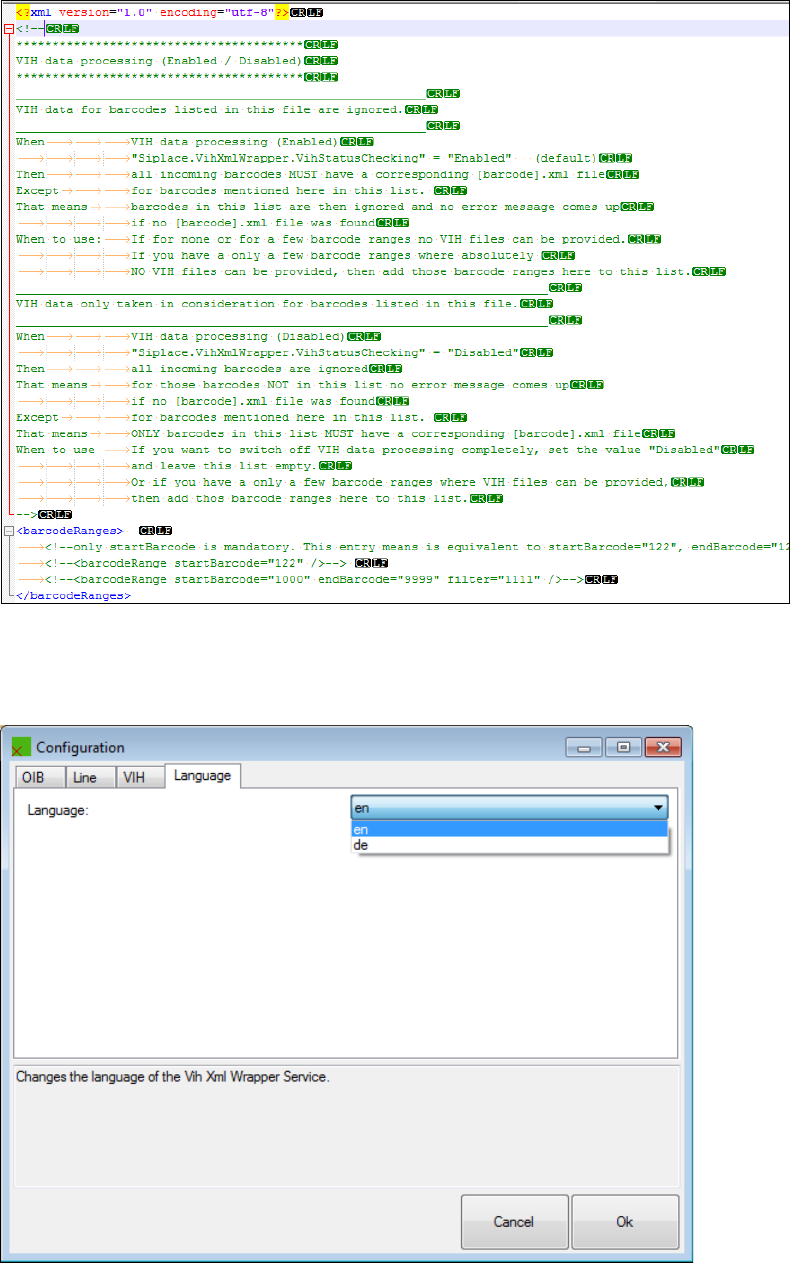

► Read the comments in the file thoroughly because the interpretation of the mentioned barcode
rules depends on the Enabled or Disabled status of the VIH data processing variable.
Figure 5-15: Reading comments in VIH data file
► Select the language in the Language tab.
English and German are supported.
Figure 5-16: Selecting language
► Save the settings by clicking Ok.
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
25

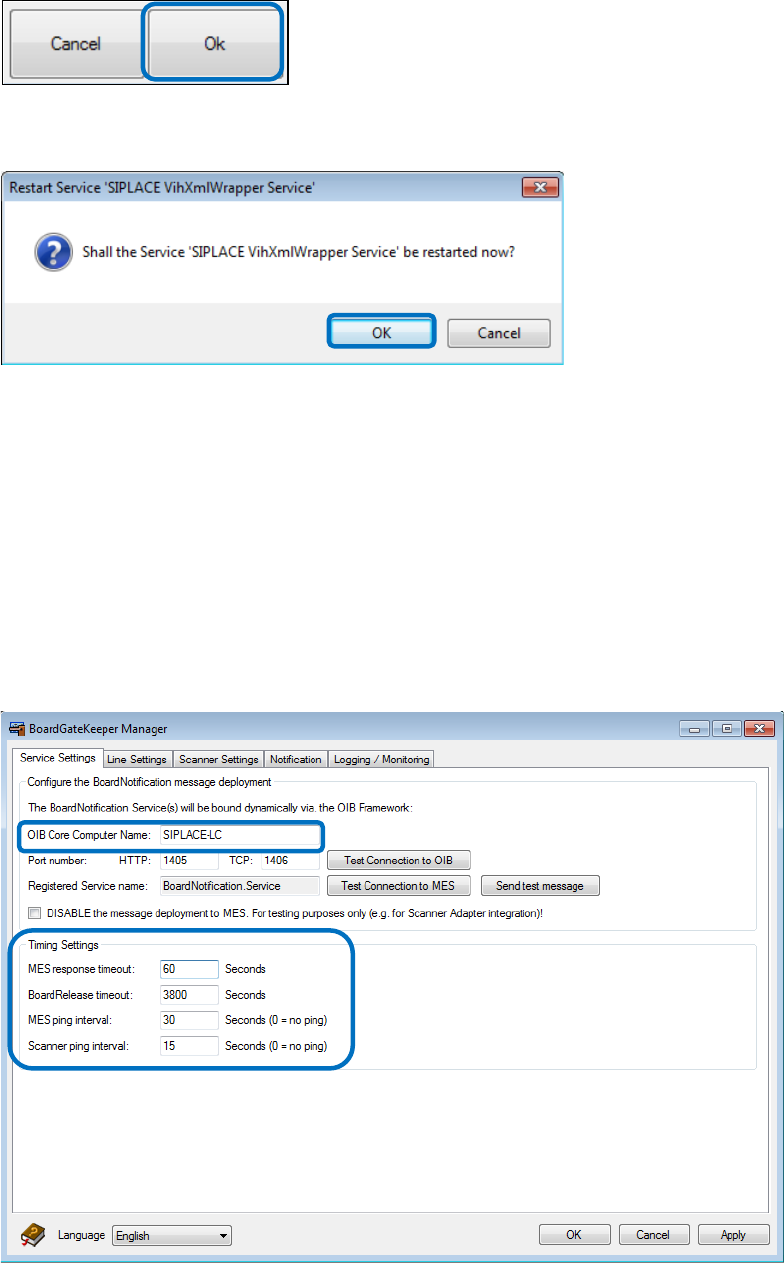

Figure 5-17: Saving the settings
The following dialog box is displayed.
Figure 5-18: Restarting the service
► Click OK to restart the VIH XMLWrapper Service.
5.2 Enabling VIH
► Perform the settings in the following sections to enable VIH.
5.2.1 BoardGateKeeper Settings
► Adjust the name of the OIB core computer in the Service Settings tab.
Figure 5-19: Adjusting OIB core computer name
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
26

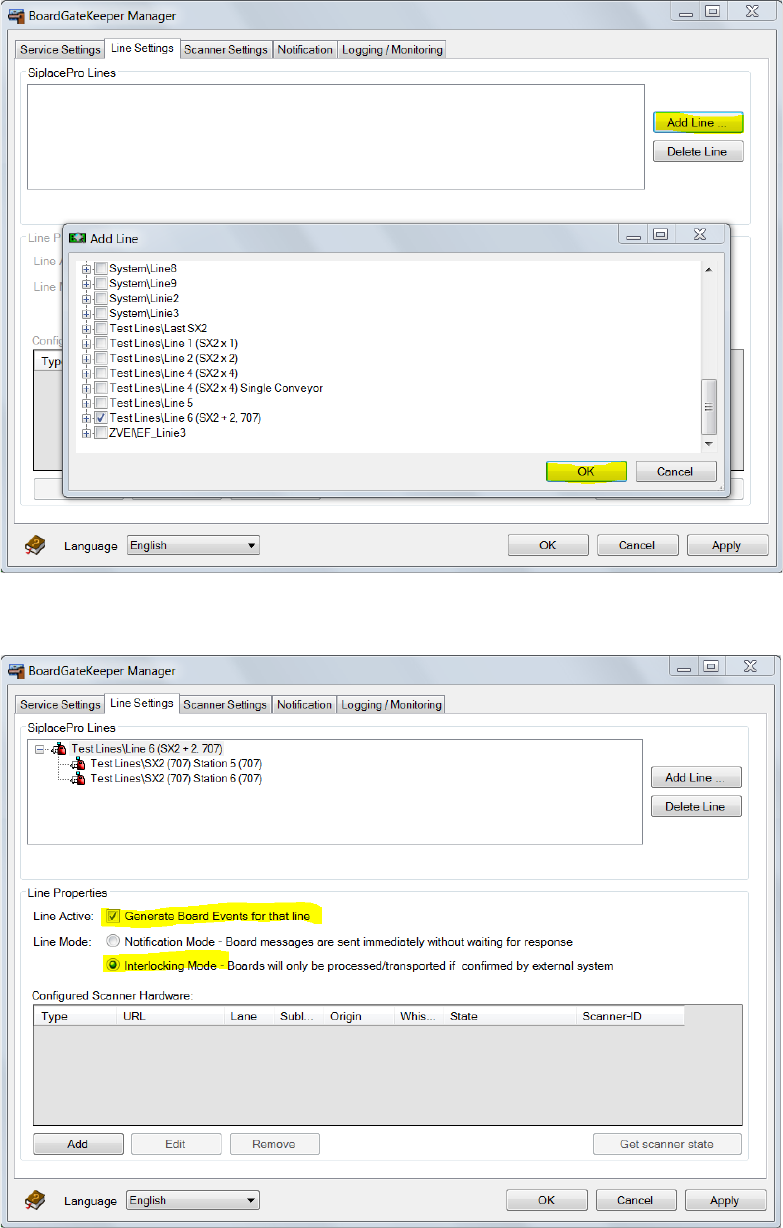

► Add a line in the Line Settings tab.
Figure 5-20: Adding a line
► Select Generate Board Events for that line and Interlocking Mode under Line Properties.
Figure 5-21: Setting line properties
