Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
35
► Open the Station Editor.
Figure 5-30: Station Editor
► Select the Whisper down the line option for all used stations.
► Open the line object in the Line Editor.
Figure 5-31: Line Editor
► Ensure that all machines but the last one are not the End of SIPLACE station cluster.
Therefore disable this option for all machines but the last one.
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
36
6 File Description and Mapping
The inkspot file contains a simple multi board layout of rows and columns. It defines for each panel,
if this panel is to be placed or skipped.
The layout of the board in the station conveyor is defined as follows:
Figure 6-1: Inkspot file – rows and columns
This example shows a board with 2 rows and 3 columns inside the station conveyor.
SIPLACE Pro displays the board with the same x=columns and y=rows coordinate system. In case
the board is rotated, the position in the station conveyor is relevant only:
Figure 6-2: Rows and columns in SIPLACE Pro
Virtual Inkspot Handling for SSW 7xx / Operating Manual 10/2017 Edition
37
6.1 Row and Column Definition
VIH checks the board structure by analyzing the origins of each panel. Panels with the same x
offset belong to the same column; panels of the same y offset belong to the same row:
Figure 6-3: Row and column definition

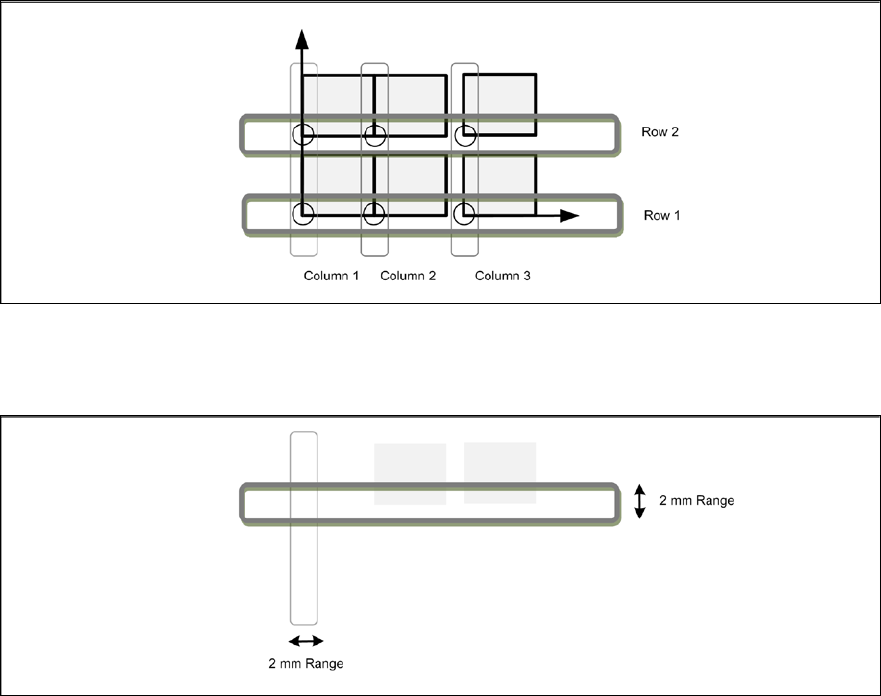

VIH considers panels to be in the same row/column if their ink spots have the same x or y
coordinate. Same means that the value is inside a range of 2 mm:
Figure 6-4: Panels in same row / column
