- 7 -

4.2 Facility Specifications

4.2.1 Supply facilities and environmental conditions

JX-300LED

Voltage

Three-phase 200V, 220V, 240V, 380V, 400V, 415V AC ±10%

(See Note 1)

Frequency 50/60Hz

Power supply

Rated apparent

power

3.0 kVA

Air pressure 0.5±0.05 MPa dry air

No Vacuum pump 345L/min (ANR)

Air supply

Maximum air

consumption

(See Note 2)

With vacuum pump 50L/min (ANR)

Ambient temperature + 10 to + 35 °C

Placement accuracy

guarantee temperature

+ 20 to + 25 °C

Relative humidity 30 % to 80% RH (No condensation)

During operation

Altitude 1,000m or less

Ambient temperature - 15°C to + 70°C

Environment

requirements

During transportation

or storage

Relative humidity 20 % to 95% RH (No condensation)

Noise 80 dB (A) or less (See Note 3)

Note 1: No power supply cable at the primary side is attached thereto.

We make NO WARRANTIES against any accident of the primary side wiring caused by

short–circuit of the power cable and so on. Please use a 5.5-mm2 or more diameter of

power cable for each phase. (Note: the appropriate cross-section area of the cable varies

depending on the supplied power voltage and the length of the power cable.)

Table Applicable sectional areas of primary side power cable lengths

Primary-side power cable length(m)

Supply power

Less than 20m 30m 40m 50m

AC 200/220/240V 8 8 10 12

AC 380/400/415V

Applicable

sectional area

(mm

)

8 8 8 8

Peak current (at AC200V 3phase power) : 35A

Note 2: “ANR” indicates are as follows:

Temperature = 20

C, Absolute pressure = 0.1MPa (=100kPa=1bar) and

Relative humidity = 65%

The necessary air supply shall be calculated as follows:

In case of 345 L/min (ANR), 345/0.926 (Coefficient) = 372.6 L/min: 372.6 L/min or more air

supply is required.

Note 3: This value was measured with conforming to the JIS Z8731 regulation.

- 8 -

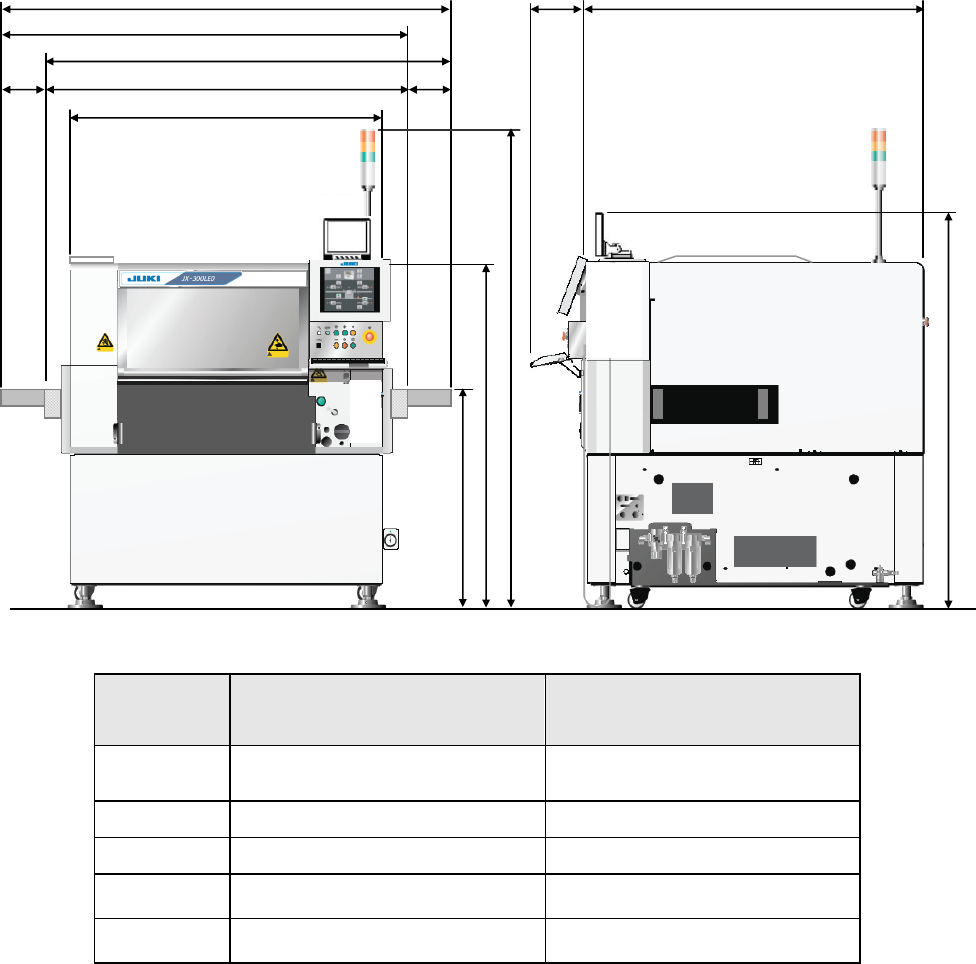

4.2.2 Outside dimensions (except for the largest projections)

JX-300LED

(Unit: mm)

Size Standard

When a longer-sized board

(X-dimension: 1,500 mm) is

supported

Conveyor

height

900 only 900 only

A 1,920 2,520

B 210 510

C 1,710 *1

－

1,500 *2

*1 When a board is transported, the conveyor extension “B” on one side (IN side) is to be

removed from the standard machine according to the board transport specification.

*2 When a longer-sized board support option is attached on the machine, the conveyor

extensions “B” on both sides are to be removed from the machine.

4.2.3 Mass of the main unit

Standard machine: 1,420 kg

D (1,500 mm: length of the conveyor equipped with an option

when a board is transported)

265

1393

C (Length of the LR specification conveyor when a board is transported)

C (Length of the RL specification conveyor when a board is transported)

1685

1,300 (Width of the main unit)

000

1440

900

- 9 -

4.3 Component Placement Cycle Time

(Number of Components Placed for One Hour)

(1) 1005 Square chip (conforming to IPC9850)

Component height

specifications

Cycle time (CPH)

SC(6mm) 19,300

NC(12mm) 18,800

*1 This is a number of components to be placed for one hour when 400 1005 square chips are

placed onto a 200 mm×200 mm board whose thickness is 2.5 mm at an angle of 0, 90 180 and

270 degrees sequentially. (This operation conforms to IPC9850.)

*2 This cycle time is measured when an 8-mm tape feeder is used, and components are placed on

boards sequentially after the L1 to L6 nozzles are used to pick them up simultaneously and a

component existence check is run.

*3 This measurement is performed under the optimal conditions except for the check functions

such as a component tombstone error.

(2) LED square chip

Component height

specifications

Cycle time (CPH)

SC(6mm) 18,200

NC(12mm) 17,300

*1 This is a number of components to be placed for one hour when LED square chips are placed

on boards sequentially according to the JUKI designated placement pattern. (This figure does

not include any mark recognition time.)

*2 This cycle time is measured when Six feeders(12-mm tape) is used, and components are

placed on boards sequentially after the L1, L3 and L5 nozzles are used to pick them up

simultaneously, the L2, L4 and L6 nozzles are used to pick them up simultaneously and a

component existence check is run.

*3 This measurement is performed under the optimal conditions except for the check functions

such as a component tombstone error.

(3) LED diffusing lens

Component height

specifications

Cycle time (CPH)

SC(6mm) -

NC(12mm) 10,000

*1 This is a number of components to be placed for one hour when LED diffusing lenses are placed

on boards sequentially according to the JUKI designated placement pattern. (This figure does

not include any mark recognition time.)

*2 This cycle time is measured when Six feeders(12-mm tape) is used, and components are

placed on boards sequentially after the L1, L3 and L5 nozzles or the L2, L4 and L6 nozzles are

used to pick up three lenses simultaneously and a component existence check is run.

*3 This measurement is performed under the optimal conditions except for the check functions

such as a component tombstone error.
