3 In stal latio n Installation Guide SIPLACE Setup Center 3.2 Installation of SIPLACE Setup Center and Possible Setu p Types Edition 03/2005 EN 16 3.2.1.5 S tep 5 → The Choose Destination Locat ion dialog box prompts you…
Installation Guide SIPLACE Setup Center 3 Installation
Edition 03/2005 EN 3.2 Installation of SIPLACE Setup Center and Possible Setup Types
15
3.2.1.4 Step 4
→Enter your User Name and Company Name in the Customer Information dialog box. Both
boxes must be filled in before the installation process can be continued.
3

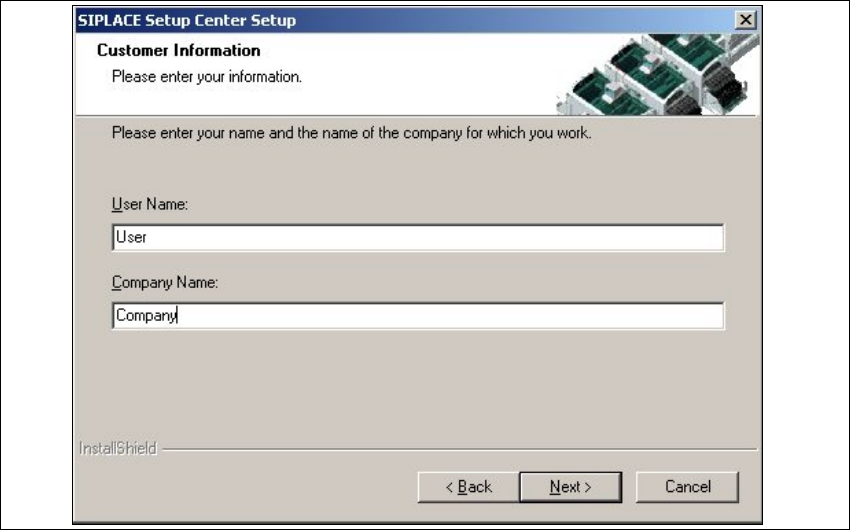

Fig. 3.2 - 4 "Customer Information" dialog box
→Click Next.
3 Installation Installation Guide SIPLACE Setup Center
3.2 Installation of SIPLACE Setup Center and Possible Setup Types Edition 03/2005 EN
16
3.2.1.5 Step 5
→The Choose Destination Location dialog box prompts you to enter the name of the folder in
which SIPLACE Setup Center should be installed. The system suggests a default destination
folder for you.
→However,you canclicktheBrowse buttontoopenadialogboxinwhichyoucanenterorselect
the path you want to use. If the folder you specify does not exist, it is created after having ac-
cepted a confirmation dialog.
3

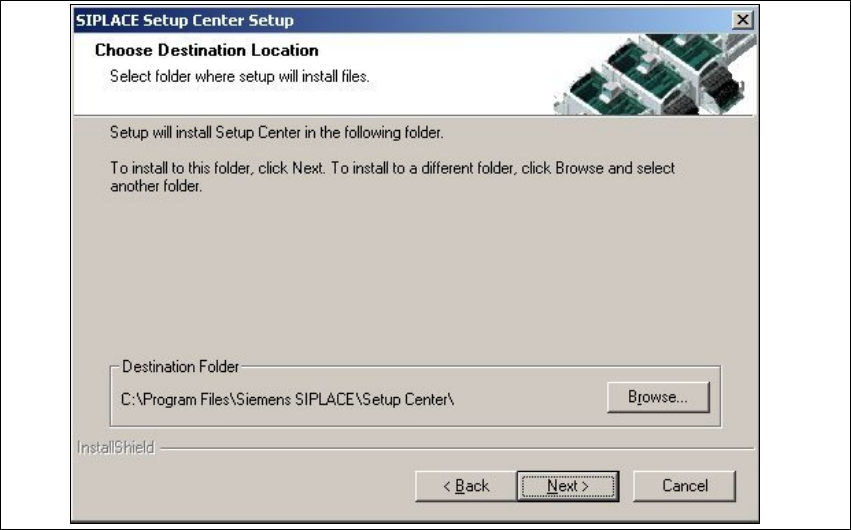

Fig. 3.2 - 5 "Choose Destination Location" dialog box
→Click Next.
Installation Guide SIPLACE Setup Center 3 Installation
Edition 03/2005 EN 3.2 Installation of SIPLACE Setup Center and Possible Setup Types
17
3.2.1.6 Step 6
→The Setup Type dialog box displays the SIPLACE Setup Center components you could
choose for installation.
3
Fig. 3.2 - 6 "Setup Type" dialog box
→In the Setup Type dialog box, select the setup type you want to install.
→Click Next.
→AshortdescriptionofthesetuptypeinquestionappearsintheDescription box when you se-
lect a type.
Note
After choosing a setup type which includes a database installation, the setup program imme-
diately checks if SQL server or MSDE (Microsoft Data Desktop Engine) is installed on the
computer. 3
