Installation Guide SIPLACE Setup Center 3 Installation
Edition 03/2005 EN 3.2 Installation of SIPLACE Setup Center and Possible Setup Types
17
3.2.1.6 Step 6
→The Setup Type dialog box displays the SIPLACE Setup Center components you could
choose for installation.
3
Fig. 3.2 - 6 "Setup Type" dialog box
→In the Setup Type dialog box, select the setup type you want to install.
→Click Next.
→AshortdescriptionofthesetuptypeinquestionappearsintheDescription box when you se-
lect a type.
Note
After choosing a setup type which includes a database installation, the setup program imme-
diately checks if SQL server or MSDE (Microsoft Data Desktop Engine) is installed on the
computer. 3
3 Installation Installation Guide SIPLACE Setup Center
3.2 Installation of SIPLACE Setup Center and Possible Setup Types Edition 03/2005 EN
18
3.2.2 Individual Setup Types and next Steps
3.2.2.1 Setup Type - SIPLACE Setup Center GUI
ThissetuptypewillinstalltheGUIapplicationofSIPLACESetupCenter.Itisusedtosetupupa
client system while the database is located on a remote system.
3
Step 1
→Run through the steps in “Starting Installation - First Steps” on page 12.
3

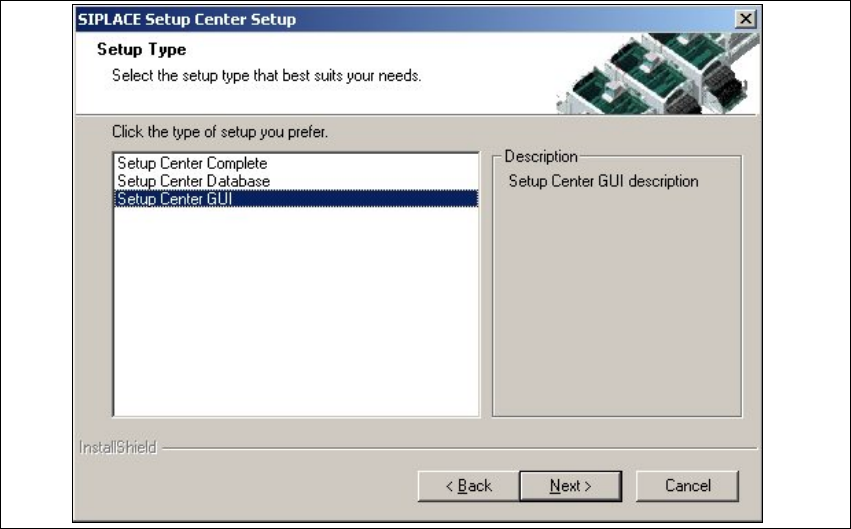

Fig. 3.2 - 7 "Setup Type" dialog box
→Select the Setup Center GUI setup type and click Next.
Installation Guide SIPLACE Setup Center 3 Installation
Edition 03/2005 EN 3.2 Installation of SIPLACE Setup Center and Possible Setup Types
19
Step 2
→In the Select SQL-Server dialog box you enter the information required to be connected with
the SQL Server and database.
3
Fig. 3.2 - 8 "Select SQL-Server" dialog box
→Enter the Password for the SQL Server user "sa", i.e. the SQL server system administrator.
Note
Thispassword is empty if MSDE has been freshly installed. In thiscase, erasethe displayed
default password.Subsequently, awindowwillopen, promptingyouto changethispassword.
You may accept the Siemens Service default password or choose one of your own. 3
→Choose your Another Computer from the pull-down menu to show other computer.
→Choose your SQL Server Instance from the pull-down menu.
→Click Next.
