THDP0200 and TMDP0200 probe standard accessories The standard accessories that connect directly to your circuit are shown below , and are described on the following pages. W ARNING: T o reduce risk of shock or fire, do n…
Voltage derating for THDP0100 probe standard accessories
The THDP0200 and TMDP0200 standard accessories can be used with the THDP0100 probe at the reduced voltage levels listed in this
table.
Table 1: Combined probe and accessory common-mode voltage and input voltage-to-earth ratings
Accessory THDP0100 THDP0200 TMDP0200
Extender leads (196-3523-xx) 2300 V CAT I 1000 V CAT III 1000 V CAT II 600 V CAT III 550 V CAT I 300 V CAT III
Test probe (TATP) (part of
020-3070-xx kit)
1000 V CAT I 1000 V CAT II 1000 V CAT II 600 V CAT II 550 V CAT I 300 V CAT II
Small hook tip (TASH) (part of
020-3070-xx kit)
2300 V CAT I 1000 V CAT II 1000 V CAT II 600 V CAT II 550 V CAT I 300 V CAT II
Large hook tip (TALH) (part of
020-3070-xx kit)
2300 V CAT I 1000 V CAT II 1000 V CAT II 600 V CAT II 550 V CAT I 300 V CAT II
Voltage derating for THDP0200 and TMDP0200 probe standard accessories
The operating altitude of the probe is derated to 2000 m (6560 ft) when used with these accessories.
The voltage rating and CA
T rating are derated to the voltage in this table when used with these accessories.
Table 2: Combined probe and accessory common-mode voltage and input voltage-to-earth ratings
Accessory THDP0100 THDP0200 TMDP0200
Extender leads (196-3523-xx) 2300 V CAT I 1000 V CAT III 1000 V CAT II 600 V CAT III 550 V CAT I 300 V CAT III
Handheld probes (TP175) 1000 V CAT I 1000 V CAT III 1000 V CAT II 600 V CAT III 550 V CAT I 300 V CAT III
Pogo pin tip adapters and tips
(020-3107-xx)
150 V CAT II 150 V CAT II 150 V CAT II
Extended test probe adapters
(012-1724-xx)
300 V CAT I300 V CAT II 300 V CAT II 300 V CAT I300 V CAT II
Hook clips (AC280-FL) 1000 V CAT I 1000 V CAT III 1000 V CAT II 600 V CAT III 550 V CAT I 300 V CAT III
Pincer clips (AC283-FL) 1000 V CAT I 1000 V CAT III 1000 V CAT II 600 V CAT III 550 V CAT I 300 V CAT III
Alligator clips (AC285-FL) 1000 V CAT I 1000 V CAT III 1000 V CAT II 600 V CAT III 550 V CAT I 300 V CAT II
Crocodile clips (344-0670-xx) 300 V CAT I 300 V CAT I 300 V CAT I
The THDP0100 probe can be used with these accessories at the reduced voltage levels listed in this table.
When using the TP175 test probes in CA
T III circuits, the tip must be in the retracted position to prevent risk of arc flash. The exposed
metal tip is about 3.7 mm (0.15 in) in the retracted position.
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 25
THDP0200 and TMDP0200 probe standard accessories
The standard accessories that connect directly to your circuit are shown below
, and are described on the following pages.
WARNING: T
o reduce risk of shock or fire, do not exceed either the voltage rating or category ratings of the probe or the probe
accessory, whichever is the lesser of the two. Use only the accessories provided with the probe.
To avoid electric shock when using the probe or accessories, keep your fingers behind the finger guard of the probe body and
away from the shaded area shown in the accessory illustrations below.
Accessories and options
26

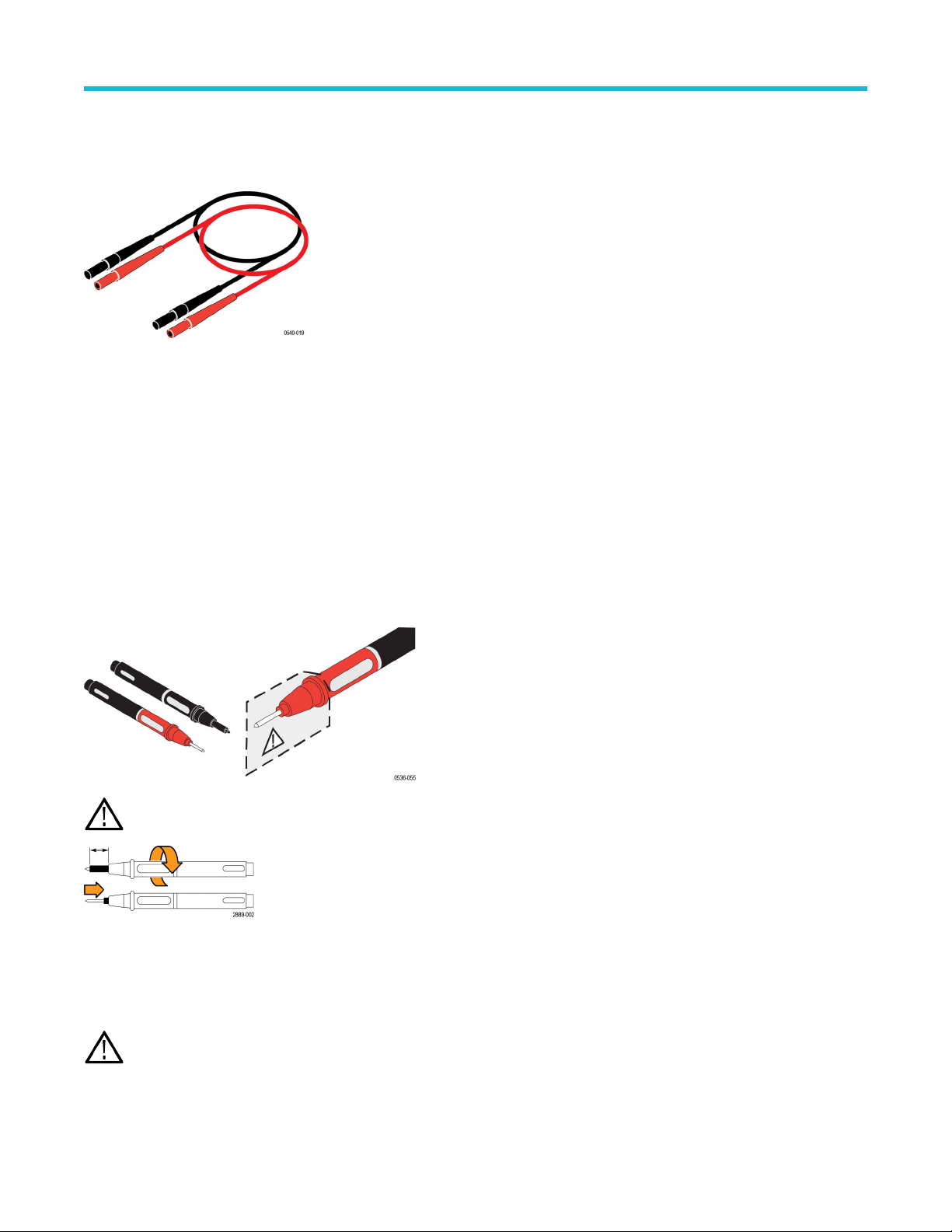

Extender Leads
These cables extend the reach of the probes by 1.0 m. The banana ends connect to all of the clip accessories that are included with the
probes.
Maximum ratings: 2300 V CAT I. See the Specifications for the Over-V
oltage Transient (OVT) rating for the probe that you are
using. Typical characteristics on page 40.
1000 V CAT III
One pair of extender leads are included with the probes.
Reorder Tektronix part number:196-3523-xx (one pair)
Handheld Probes (TP175)
These probes plug onto the banana input leads and extender leads. The tips are threaded to accept tip accessories. The insulator sheath
at the probe tip extends and retracts into CAT III and CAT IV-rated spacings. Twist the probe body past the detent at each end of the twist
to lock the probe into the CAT setting.
The insulator sheath at the probe tip extends and retracts into CAT III and CAT IV-rated spacings. Twist the probe body past the detent at
each end of the twist to lock the probe into the CAT setting.
WARNING: Always verify that the probe body is locked into position before taking measurements. Do not use in the unlocked
neutral position.
Maximum ratings: 1000 V CAT II
1000 V CA
T III
10 A
One pair of handheld probes are included with the probes.
Note: The TP175 must be ordered through Fluke.
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 27
