Operating basics

To help you use the high voltage differential probes safely and effectively, this section provides important information about safety limits,

operating characteristics, and probing techniques.

Operating limits

The probes have two operating ranges that you select with the RANGE button; the ranges differ between probe models.

To keep within the linear measurement region of the probe, select a range that is above the differential voltage that you are measuring. You

can measure a voltage in the low range that exceeds the low range limit (provided it is within the high range limit of the probe), but it will

overdrive the circuitry of the probe. When this differential overrange occurs, the probe detects the condition and lights the OVERRANGE

indicator. Measurements taken in the lower, more sensitive range when the OVERRANGE indicator is lit are not accurate during the

Overdrive Recovery Time (ORT, typically <20 ns, depending on the probe type).

Do not attempt to measure a differential voltage that is above the high operating range of the probe. Do not exceed the common mode

voltage on either input (+ or – input to ground). See Typical characteristics on page 40. The probe can be damaged if these limits are

exceeded.

Table 3: Differential voltage limits (peak)

Low range High range

Probe model Voltage limit Overload trip level Voltage limit Overload trip level

THDP0100 600 V >600 V 6000 V >6000 V

THDP0200 150 V >150 V 1500 V >1500 V

TMDP0200 75 V >75 V 750 V >750 V

The input signals that you attempt to measure must be considered both for the differential potential between each other and for the

amplitude on each input with respect to ground (the common mode voltage specification). The maximum common mode voltage limits vary

between probes, from 550 V CA

T I for the TMDP0200, to 2300 V CAT I for the THDP0100 probe. You should consider both specifications

when choosing a probe for your measurement task. Some examples that illustrate this are shown on the following pages.

Operating basics

High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 35

Measurement examples

Example 1

Consider a case where you need to measure two sinusoidal waveforms that are 180° out of phase with each other

, each with an amplitude

of 1000 V

with no DC offset (centered at 0 V).

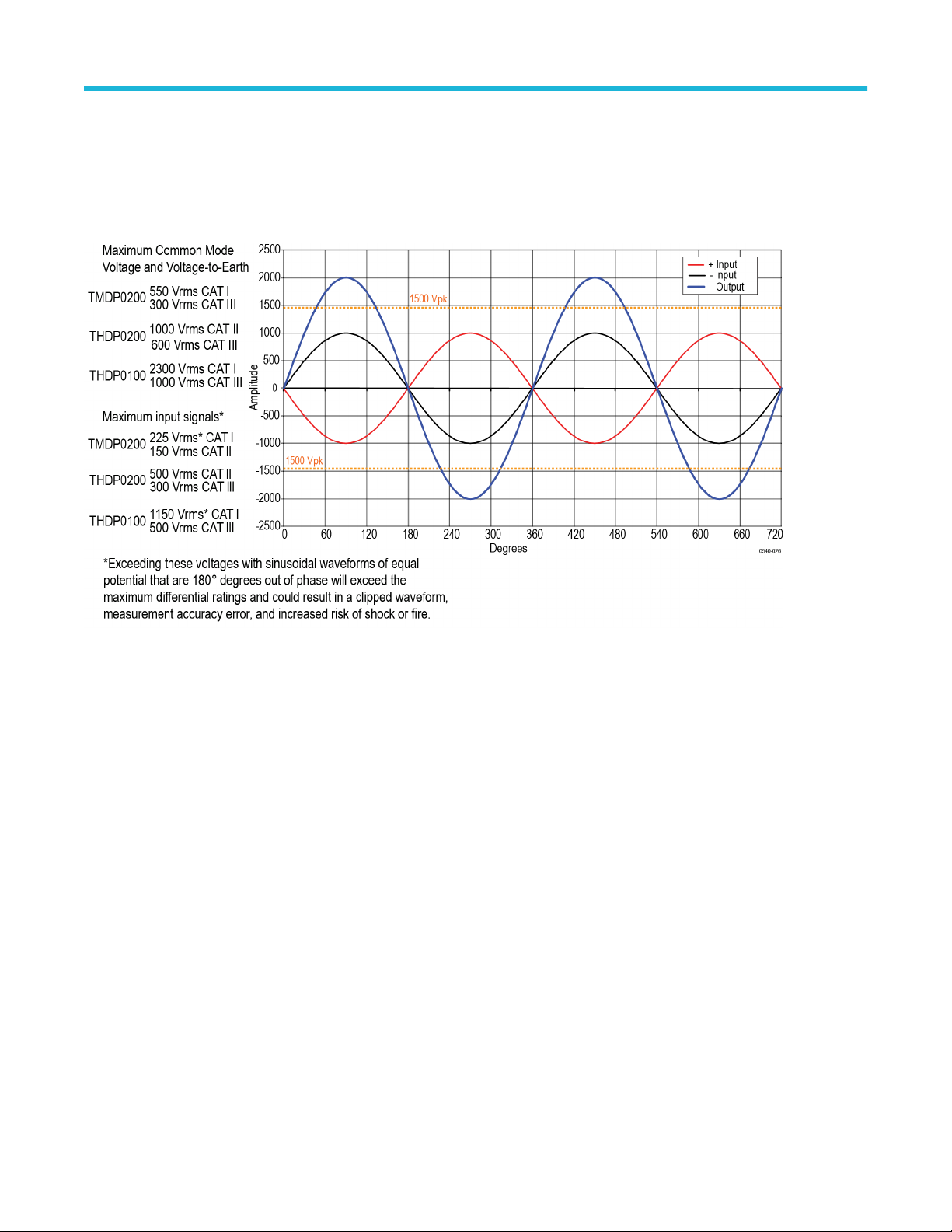

Figure 6: Measuring two equal-amplitude waveforms that are 180 degrees out of phase

If both waveforms are at the same voltage potential, then the dif

ferential measurement would be 2 times the individual signal inputs (in

this example, 2000 V

). Looking at the maximum measurable differential voltage specifications for the THDP/TMDP series probes, the

THDP0100 probe is capable of measuring this signal. See Typical characteristics on page 40. For reference, the rms values of the

Common-Mode Voltage and Voltage-to-Earth ratings and Maximum Input Signals for each probe model are shown in the figure above.
