2. Rotate the browser 90°. 3. Position the probe tips on your test points so that you can set the holder on a stable surface. One THV -Browser is included with the probes. Reorder T ektronix part number: THV -Browser THD…
The weight of the probe holder keeps the probe in place.
CAUTION: If you are probing circuitry with dense contacts such as IC pins, T
ektronix recommends that you use insulated probe
tip accessories designed to prevent short-circuiting adjacent IC pins or circuitry.
One TPH1000 probe holder is included with the probes.
Reorder T
ektronix part number: TPH1000
THV-Browser
The THV-Browser allows you to set and lock the spacing between two handheld probe tips, and then browse your circuit with one hand.
Use the following steps for handheld browsing:
1. Place each handheld probe lead into the cavity and then slide the probe forward to secure it.
2. Loosen the thumb screw and adjust the spacing between the probe tips. Graticules near the thumb screw indicate the spacing. The
maximum spacing is ~1 in (2.54 mm).
3. T
ighten the thumb screw. You can now browse your circuit.
WARNING: To avoid injury or short circuits, do not drop the THV-Browser on high voltage circuitry. The browser contains metal
components.
If you want a stationary, hands-free connection, attach the browser to the TPH1000 probe holder:
1. Align the slots on the top of the probe holder with the pins on the bottom of the browser
.
Accessories and options
32
2. Rotate the browser 90°.
3. Position the probe tips on your test points so that you can set the holder on a stable surface.
One THV-Browser is included with the probes.
Reorder T
ektronix part number: THV-Browser
THDP and TMDP Series probes optional accessories
TekVPI Calibration Fixture
This calibration fixture is required to complete a performance verification and adjustment procedures on the probe. It provides power to the
probe and routes the probe output signal through an SMA connector on the back of the fixture.
The signal can then be measured with another instrument, (for example, a precision DMM), to check and adjust probe qualities such as
gain accuracy.
Order Tektronix part number: 067-1701-xx
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 33

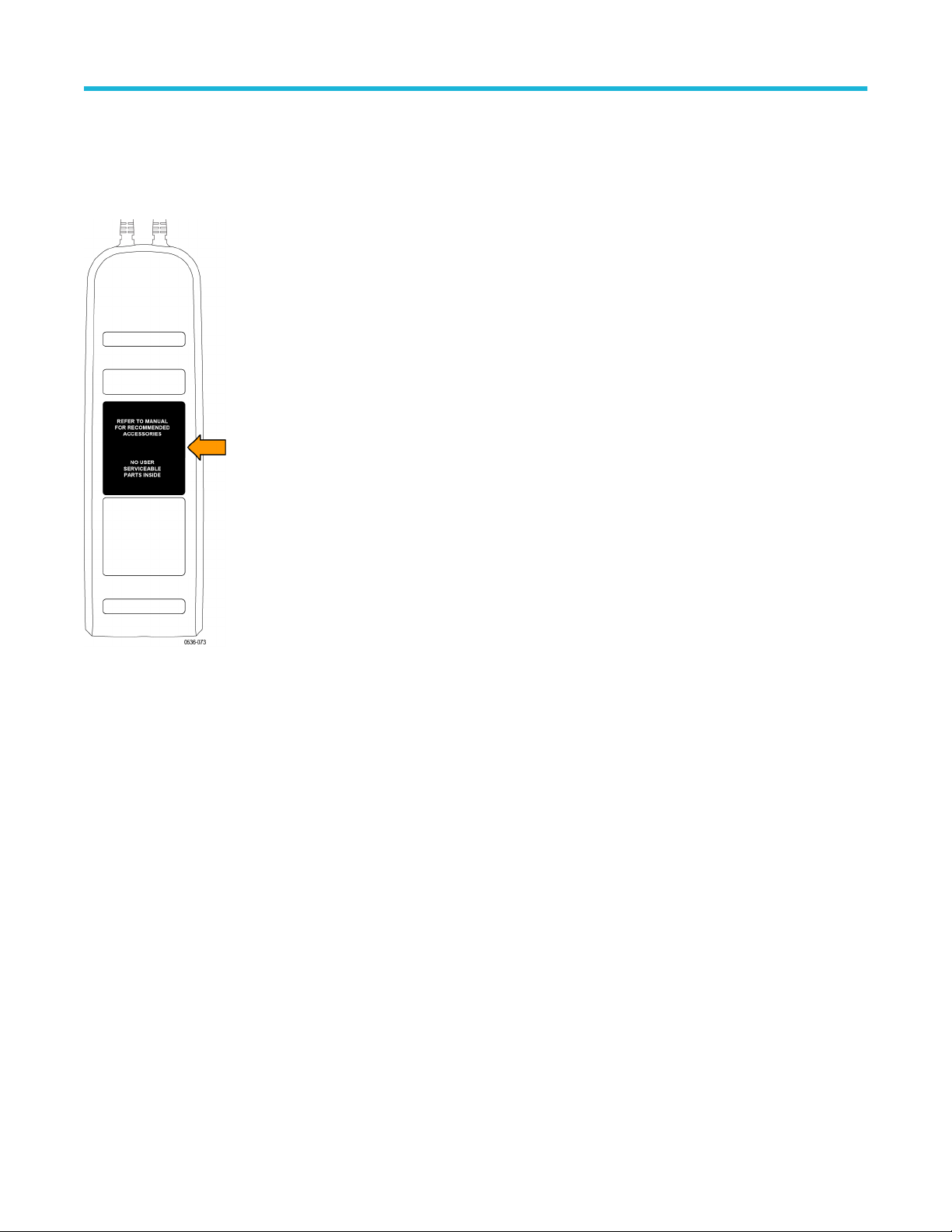

Replacement Label (Safety Item; Service Only)
This reusable label covers the openings to the service-only adjustments on the back of the probe. T
o maintain the safety of the probe, the
label must be replaced after service adjustments are made to the probe.
If the original label becomes damaged or lost, order a replacement label.
Order Tektronix part number: 335-2913-xx
Service Options
Option C3 Calibration Service 3 years
Option C5 Calibration Service 5 years
Option D1 Calibration Data Report
Option D3 Calibration Data Report, 3 years (with Option C3)
Option D5 Calibration Data Report, 5 years (with Option C5)
Option R3 Repair Service 3 years
Option R5 Repair Service 5 years
