Extended T est Probe Adapters These adapters screw on to the threaded tips of the handheld probes. Use these adapters to reach into dense circuitry . The sharp tips can contact small component leads and circuit board fea…
Pogo Pin Tip Adapters and Tips
These insulated adapters hold pogo pins and screw on to the threaded tips of the TP175 handheld probes.
WARNING: T
o prevent electrical shock, tighten the pogo pin tip adapter completely to the TP175 probe.
Two pairs of pogo pin types are included with the adapters; one pair have sharp, cone points and the other pair have serrated edges for
embedding in soft conductors.
WARNING: The pogo pins have very sharp points. T
o prevent injury, handle the pins carefully when you install and remove them.
WARNING: T
o prevent risk of arc flash, ensure that the pogo pin is completely inserted into the adapter. Verify that the exposed
metal portion of the tip is 19 mm (0.75 in) or less.
WARNING: The probe input rating is derated to 150 V CA
T II, 1 mA, when used with the THDP and TMDP series probes. Do not
use this pogo pin adapter to measure voltages that exceed this rating.
Maximum ratings: 150 V CAT II
1 mA
Reorder Tektronix part number: 020-3107-xx (includes 2 Tip Adapters, 2 Cone-Tip Pogo Pins, and 2 Serrated-Tip Pogo Pins)
Accessories and options
28
Extended Test Probe Adapters
These adapters screw on to the threaded tips of the handheld probes. Use these adapters to reach into dense circuitry
. The sharp tips can
contact small component leads and circuit board features.
WARNING: The probe input rating is derated to 150V CA
T II, 1 mA, when used with the THDP and TMDP series probes. Do not
use this extended probe adapter to measure voltages that exceed this rating.
WARNING: The tip on this adapter is very sharp. T
o prevent injury, do not touch the tip.
Maximum ratings: 300 V CAT II
3 A
Reorder Tektronix part number: 012-1724-xx (one pair)
Hook Clips (AC280-FL)
Plug the probe test leads into the banana plug connectors. Squeeze the grips to expose the hook clip and then clasp it around the circuit
test point.
Maximum ratings: 1000 V CAT III
3 A
One pair of hook clips are included with the probes.
Reorder T
ektronix part number: AC280-FL (one pair)
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 29

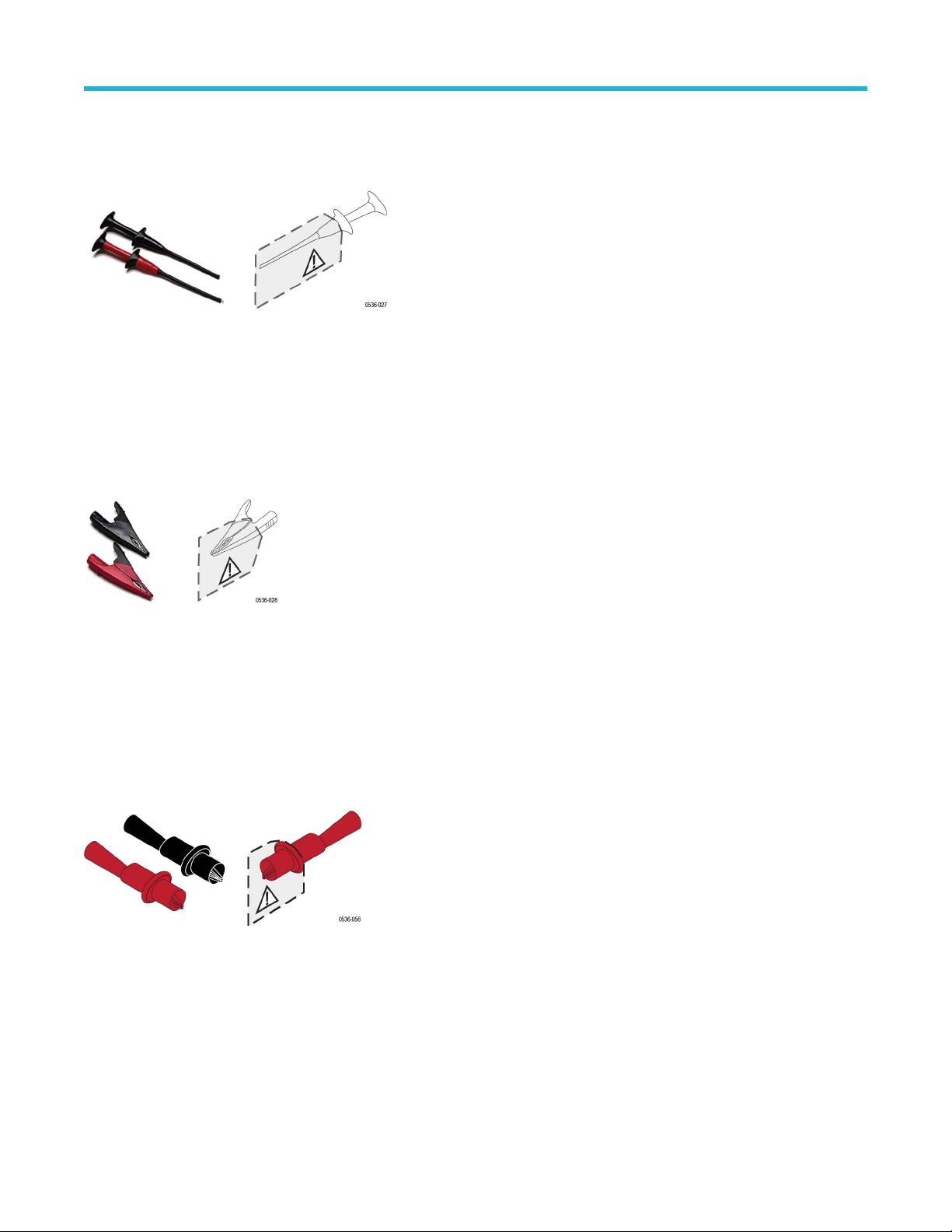

Pincer Clips (AC283-FL)
The plunger probes have long probe sleeves with retracting hooks. These probes safely connect to recessed test points that are otherwise
dif
ficult to reach.
Maximum ratings: 1000 V CAT III
1 A
One pair of pincer clips are included with the probes.
Reorder T
ektronix part number: AC283-FL (one pair)
Alligator Clips (AC285-FL)
These large insulated alligator clips connect to many circuit components.
Maximum ratings: 1000 V CAT III
10 A
One pair of clips are included with the probes.
Reorder Tektronix part number: AC285-FL (one pair)
Crocodile Clips
The crocodile clips connect easily to large bolts or bus bars. The connectors are double insulated for safety. The clips screw on to the
threaded tips of the handheld probes.
Maximum ratings: 1000 V CAT III
10 A
One pair of clips is included with the probes.
Reorder T
ektronix part number: 344-0670-xx (one pair)
