Pincer Clips (AC283-FL) The plunger probes have long probe sleeves with retracting hooks. These probes safely connect to recessed test points that are otherwise dif ficult to reach. Maximum ratings: 1000 V CA T III 1 A O…
Extended Test Probe Adapters
These adapters screw on to the threaded tips of the handheld probes. Use these adapters to reach into dense circuitry
. The sharp tips can
contact small component leads and circuit board features.
WARNING: The probe input rating is derated to 150V CA
T II, 1 mA, when used with the THDP and TMDP series probes. Do not
use this extended probe adapter to measure voltages that exceed this rating.
WARNING: The tip on this adapter is very sharp. T
o prevent injury, do not touch the tip.
Maximum ratings: 300 V CAT II
3 A
Reorder Tektronix part number: 012-1724-xx (one pair)
Hook Clips (AC280-FL)
Plug the probe test leads into the banana plug connectors. Squeeze the grips to expose the hook clip and then clasp it around the circuit
test point.
Maximum ratings: 1000 V CAT III
3 A
One pair of hook clips are included with the probes.
Reorder T
ektronix part number: AC280-FL (one pair)
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 29
Pincer Clips (AC283-FL)
The plunger probes have long probe sleeves with retracting hooks. These probes safely connect to recessed test points that are otherwise
dif
ficult to reach.
Maximum ratings: 1000 V CAT III
1 A
One pair of pincer clips are included with the probes.
Reorder T
ektronix part number: AC283-FL (one pair)
Alligator Clips (AC285-FL)
These large insulated alligator clips connect to many circuit components.
Maximum ratings: 1000 V CAT III
10 A
One pair of clips are included with the probes.
Reorder Tektronix part number: AC285-FL (one pair)
Crocodile Clips
The crocodile clips connect easily to large bolts or bus bars. The connectors are double insulated for safety. The clips screw on to the
threaded tips of the handheld probes.
Maximum ratings: 1000 V CAT III
10 A
One pair of clips is included with the probes.
Reorder T
ektronix part number: 344-0670-xx (one pair)
Accessories and options
30

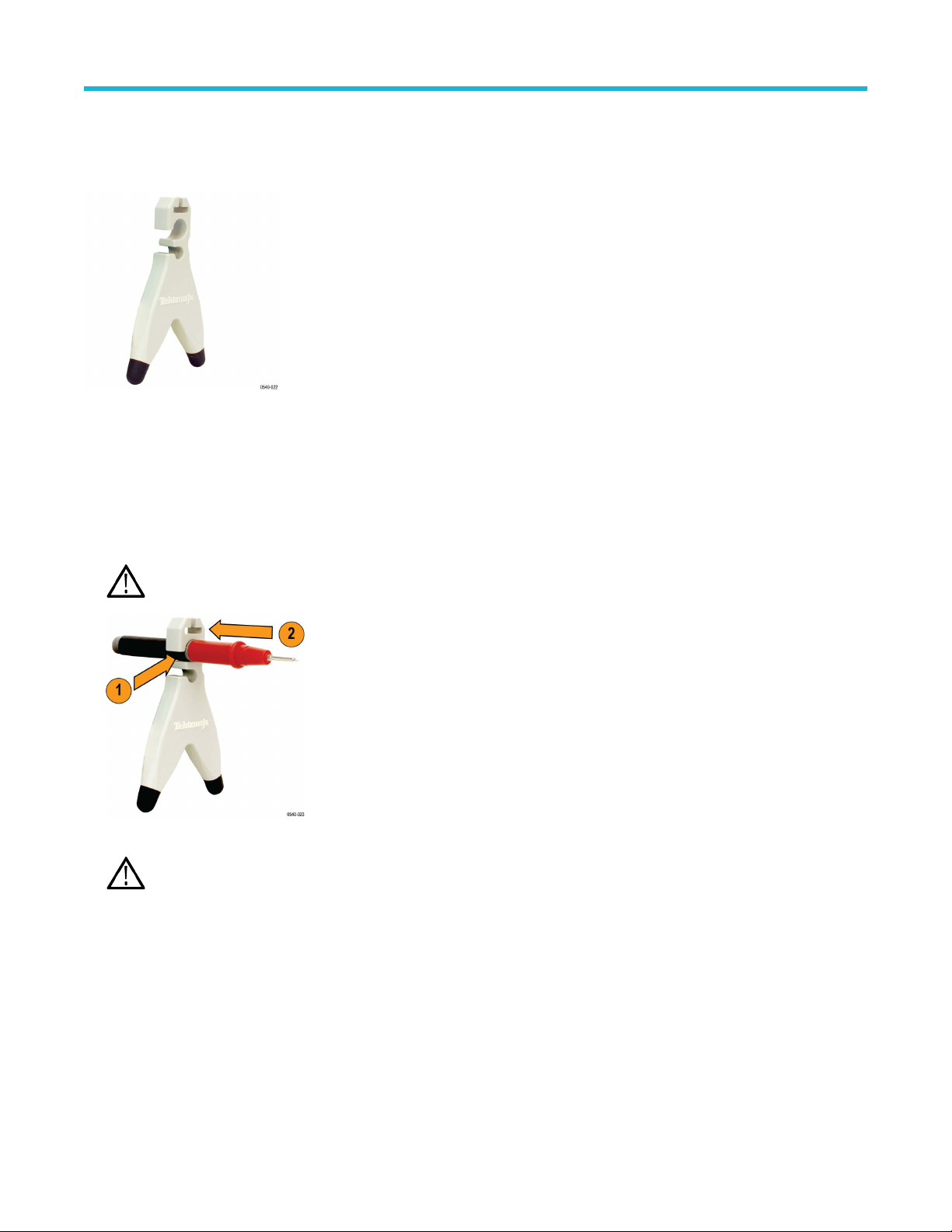

TPH1000 probe holder
The TPH1000 probe holder allows you to make a hands-free connection when using the handheld probes included in the accessory kit.
The probe holder can also be used with many other T
ektronix probes.
You have two options for taking hands-free differential measurements:
•
You can use the handheld probes with two TPH1000 probe holders (required if the test points are >1 inch apart).
• For test points <1 inch apart, use the handheld probes with the THV-Browser (shown on the following page).
To use the probe holder, do the following:
1. Insert the probe into one of the holder openings so that the Tektronix logo faces the circuit under test.
2. Slide the probe forward to secure it.
CAUTION: T
o avoid personal injury, always insert and remove probes by gripping the handheld section of the probe.
3. Position the base of the probe holder on your circuit where it can maintain stability while contacting the test point.
WARNING: Do not use the probe holder without the rubber feet; internal metal would be exposed which presents a shock
hazard.
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 31
