Pogo Pin Tip Adapters and T ips These insulated adapters hold pogo pins and screw on to the threaded tips of the TP175 handheld probes. W ARNING: T o prevent electrical shock, tighten the pogo pin tip adapter completely …
Extender Leads
These cables extend the reach of the probes by 1.0 m. The banana ends connect to all of the clip accessories that are included with the
probes.
Maximum ratings: 2300 V CAT I. See the Specifications for the Over-V
oltage Transient (OVT) rating for the probe that you are
using. Typical characteristics on page 40.
1000 V CAT III
One pair of extender leads are included with the probes.
Reorder Tektronix part number:196-3523-xx (one pair)
Handheld Probes (TP175)
These probes plug onto the banana input leads and extender leads. The tips are threaded to accept tip accessories. The insulator sheath
at the probe tip extends and retracts into CAT III and CAT IV-rated spacings. Twist the probe body past the detent at each end of the twist
to lock the probe into the CAT setting.
The insulator sheath at the probe tip extends and retracts into CAT III and CAT IV-rated spacings. Twist the probe body past the detent at
each end of the twist to lock the probe into the CAT setting.
WARNING: Always verify that the probe body is locked into position before taking measurements. Do not use in the unlocked
neutral position.
Maximum ratings: 1000 V CAT II
1000 V CA
T III
10 A
One pair of handheld probes are included with the probes.
Note: The TP175 must be ordered through Fluke.
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 27
Pogo Pin Tip Adapters and Tips
These insulated adapters hold pogo pins and screw on to the threaded tips of the TP175 handheld probes.
WARNING: T
o prevent electrical shock, tighten the pogo pin tip adapter completely to the TP175 probe.
Two pairs of pogo pin types are included with the adapters; one pair have sharp, cone points and the other pair have serrated edges for
embedding in soft conductors.
WARNING: The pogo pins have very sharp points. T
o prevent injury, handle the pins carefully when you install and remove them.
WARNING: T
o prevent risk of arc flash, ensure that the pogo pin is completely inserted into the adapter. Verify that the exposed
metal portion of the tip is 19 mm (0.75 in) or less.
WARNING: The probe input rating is derated to 150 V CA
T II, 1 mA, when used with the THDP and TMDP series probes. Do not
use this pogo pin adapter to measure voltages that exceed this rating.
Maximum ratings: 150 V CAT II
1 mA
Reorder Tektronix part number: 020-3107-xx (includes 2 Tip Adapters, 2 Cone-Tip Pogo Pins, and 2 Serrated-Tip Pogo Pins)
Accessories and options
28

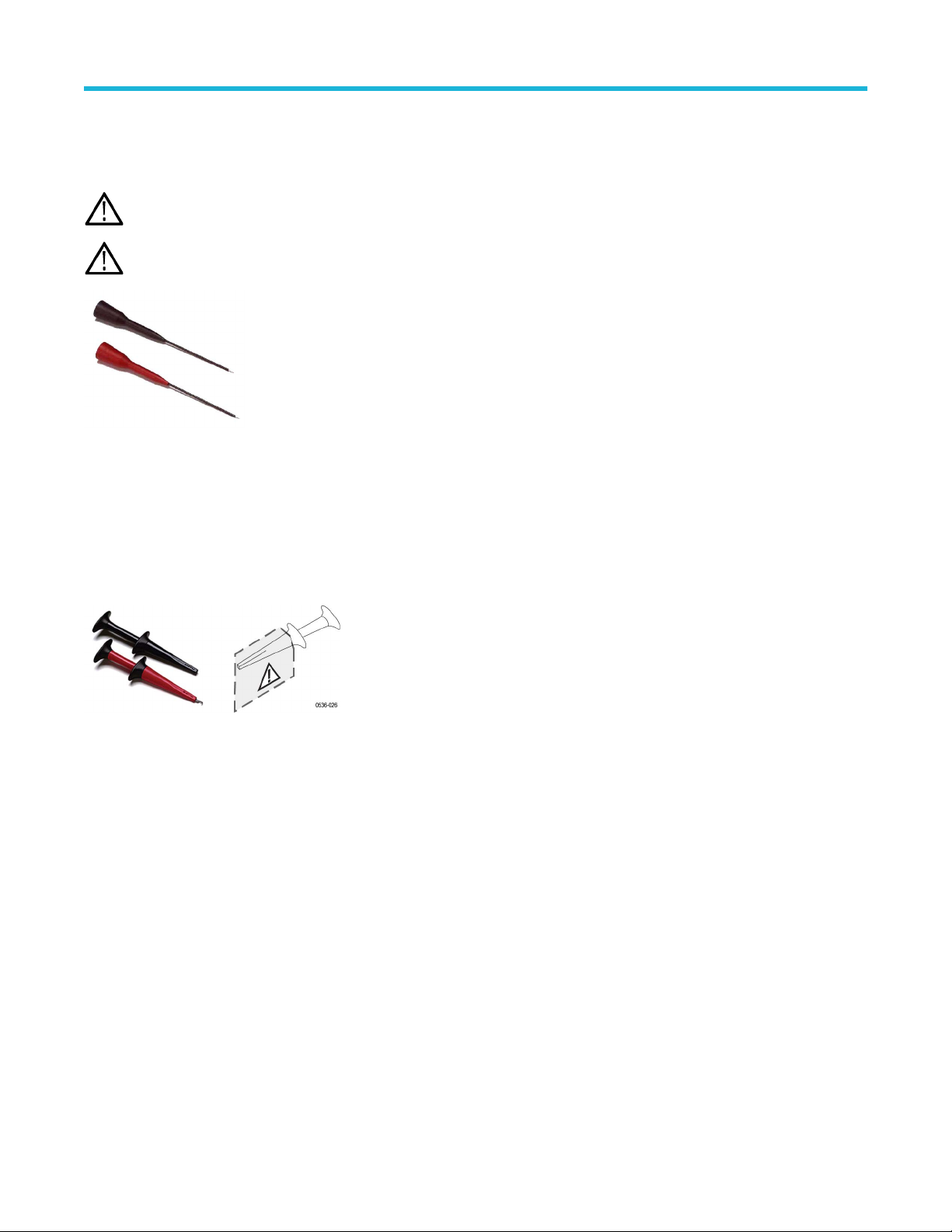

Extended Test Probe Adapters
These adapters screw on to the threaded tips of the handheld probes. Use these adapters to reach into dense circuitry
. The sharp tips can
contact small component leads and circuit board features.
WARNING: The probe input rating is derated to 150V CA
T II, 1 mA, when used with the THDP and TMDP series probes. Do not
use this extended probe adapter to measure voltages that exceed this rating.
WARNING: The tip on this adapter is very sharp. T
o prevent injury, do not touch the tip.
Maximum ratings: 300 V CAT II
3 A
Reorder Tektronix part number: 012-1724-xx (one pair)
Hook Clips (AC280-FL)
Plug the probe test leads into the banana plug connectors. Squeeze the grips to expose the hook clip and then clasp it around the circuit
test point.
Maximum ratings: 1000 V CAT III
3 A
One pair of hook clips are included with the probes.
Reorder T
ektronix part number: AC280-FL (one pair)
Accessories and options
High Voltage Differential Probes THDP0100/0200 and TMDP0200 User Manual 29
