Frequency Up to 120 MHz Up to 3 GHz range (Terminal configuration: 4-Terminal pair) (Terminal configuration: 7 mm) Measurement E4980A/AL, E4981A, E4990A E4982A, E4990A + 42942A*, E4991B, instruments E5061B-3L3/3L4/3L5 w/…
Accessories organization
This document is organized by measurement frequency and DUT to enable quick
selection of an appropriate test fixture for a particular measurement application. The
following tables show the various categories in each primary group:
Up to 120 MHz (Terminal configuration: 4-Terminal pair)
Accessories Catalog
Lead components 16047A/E
SMD components 16034E/G/H, 16334A
Other components 16089A /B/C
Port/Cable extension 16048A/D/E/G/H
DC bias accessories 16065A/C
Material 16451B, 16452A
Lead components 16092A,16194A
SMD components 16092A, 16192A, 16194A, 16196A/B/C/D, 16197A, 16198A
DC bias accessories 16200B
Material 16453A, 16454A
Miscellaneous 16190B, 16380A/C, 42030A, 42090/1A
Up to 3 GHz (Terminal configuration: 7 mm connector)
Other accessories
07 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
Frequency Up to 120 MHz Up to 3 GHz
range (Terminal configuration: 4-Terminal pair) (Terminal configuration: 7 mm)
Measurement E4980A/AL, E4981A, E4990A E4982A, E4990A + 42942A*, E4991B,
instruments E5061B-3L3/3L4/3L5 w/Opt. 005 + 16201A
*Option E4990A-120 is required
Test fixtures (4-Terminal pair) for impedance measurements up to 120 MHz
Up to 120 MHz (4-Terminal Pair)
DC 1 k 1 M 10 M 100 M
16047A 13 M
16047E 120 M
16034E 40 M
16034G/H 120 M
16334A
15 M
16089A/B/C
5
5
100 k
16048A/D
30 M
16048E
2 M
16048G/H
120 M
42941A
120 M
16065A
50
40
2 M
16065C
100 1 M
16451B
30 M
16452A
20 30 M
Frequency range
Applicable instrument
08 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
Up to 120 MHz (4-Terminal Pair): Lead Components

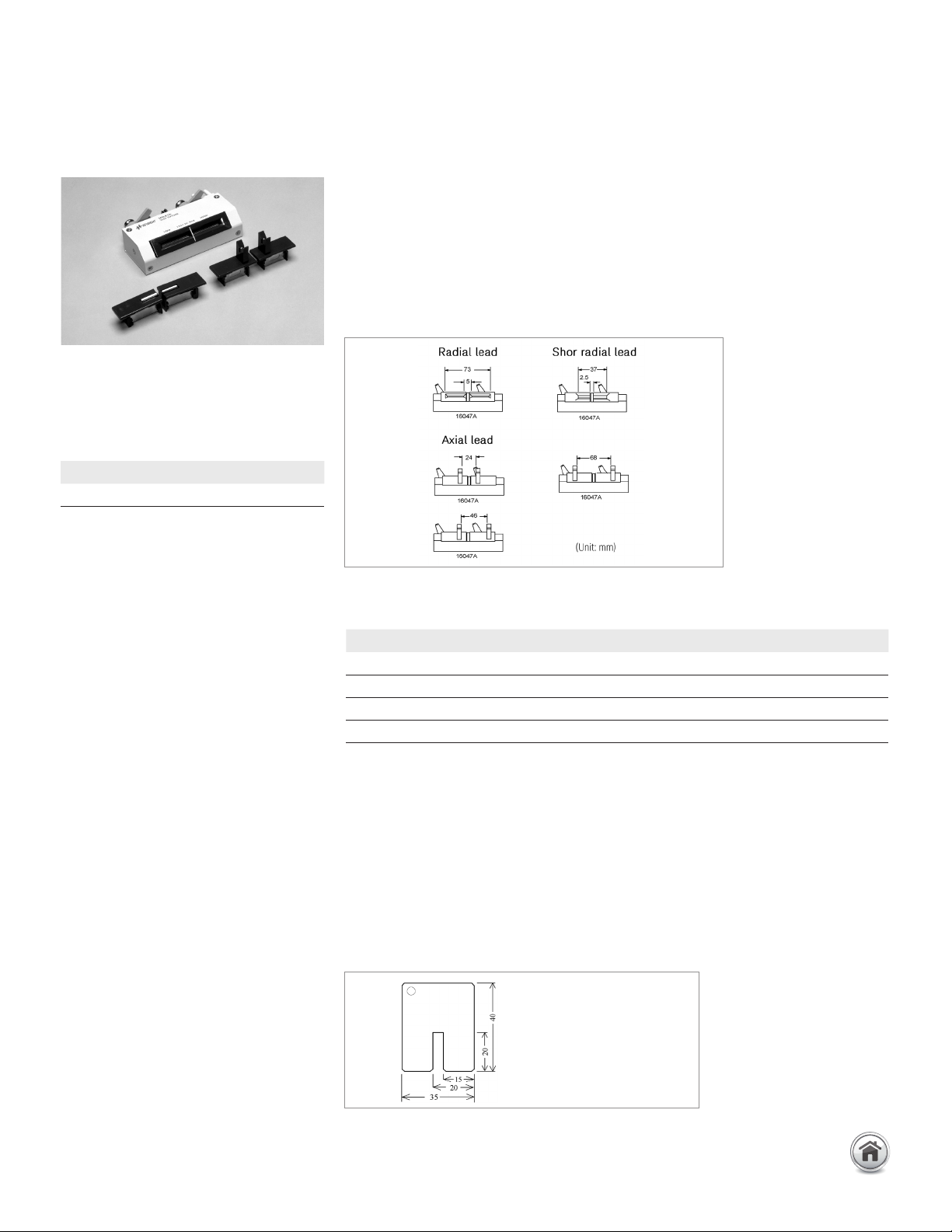

16047A Test fixture
Terminal connector: 4-Terminal pair, BNC
DUT connection: 4-Terminal
Dimensions (approx.):
124 (W) x 31 (H) x 62 (D) mm
Weight (approx.): 205 g
Additional error:
f: [MHz]
Description: This test fixture is designed for impedance evaluation of axial/radial lead
type devices. The 16047A employs Kelvin contacts which realize a wide impedance
measurement range. The contact tip can be changed according to the device shape.
Applicable instruments: E4980A/AL, E4981A, E4990A
Frequency: DC to 13 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
DUT size: See figure with module sizes.
Furnished accessories:
Each module size for the 16047A is shown above.
Option:
16047A-701: Add Shorting plate P/N 16047-00640
Compensation and measurement: Select one of these modules suitable for the DUT’s
shape. Open and short compensations are recommended before measurement. Short
compensation is performed by shorting the contacts of the test fixture with a shorting
plate. After performing open and short compensations, the DUT is connected to the test
fixture.
16047A module sizes
Shorting plate
P/N 16047-00640
Material:
Brass (Ni-dipped)
Thickness:
1.0 mm
Residual impedance:
20nH, 1mΩ
Description P/N Qty.
Module for axial lead 16061-70022 2
Module for radial lead mounting on fixture 16061-70021 2
Module for short radial lead 16047-65001 2
Operating note 16047-90011 1
Type of error Impedance
Proportional error ±5 x (f/10)
2
