16190B Performance test kit
Terminal connector: 7 mm
Dimensions (approx.):
350 (W) x 100 (H) x 270 (D) [mm]
Weight (approx.): 2.0 kg
Other Accessories
Description: The 16190B is a performance test kit designed to verify the impedance
measurement accuracy of LCR meters or impedance analyzers that have a 7 mm
measurement terminal. Refer to the instrument’s operation/service manual for the
method of using these standards.
Applicable instrument: E4982A, E4990A + 42942A*, E4991B
* Option E4990A-120 is required
Furnished accessories:
Description P/N Qty.
Airline, 50 Ω, 7 mm N/A 1
Cap, Protection 1401-0123 2
50 Ω termination N/A 1
Open termination N/A 1
Short termination N/A 1
Cap, termination protection 16190-25011 3
Wrench, 1/2 and 8/15, open end 8710-1770 1
Carrying case N/A 1
Floppy diskette for calibration data N/A 1
Calibration report N/A 1
Operating note 16190-90020 1
52 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

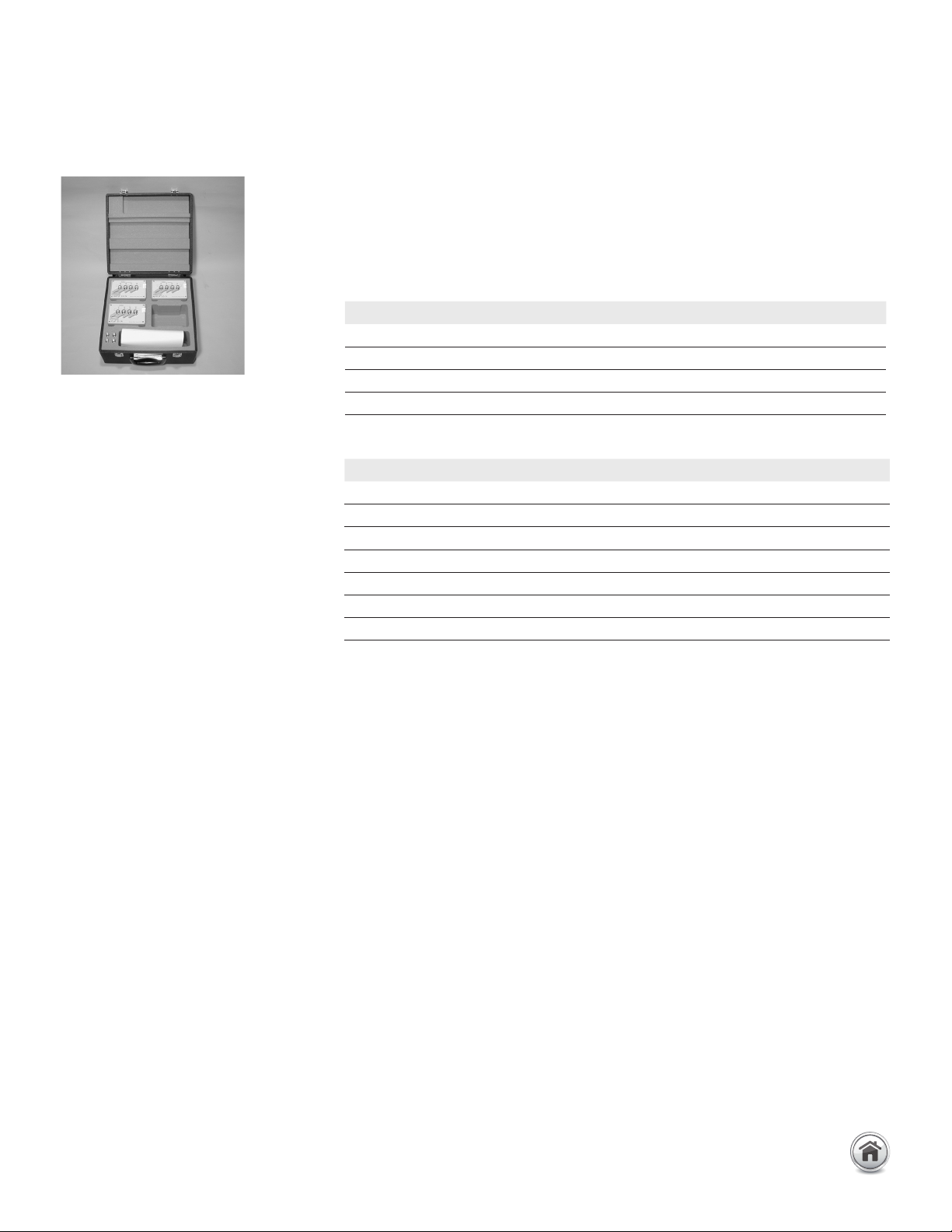

16380A Standard capacitor set
Terminal connector: 4-Terminal Pair, BNC
Dimensions (approx.):
142 (W) x 88 (H) x 112 (D) [mm]
(capacitors)
Weight (approx.): 8.0 kg (including case
and 4 capacitors)
Other Accessories continued
Description: The 16380A is a standard capacitor set consisting of four precision
capacitors -1 pF (16381A), 10 pF (16382A) 100 pF (16383A), 1000 pF (16384A). These
capacitors are primarily used for performance tests of Keysight’s 4-Terminal Pair LCR
meters and impedance analyzers. Refer to the instrument’s operation/service manual
for the method of using these standards.
Applicable instrument: E4980A/AL, E4981A, E4990A
Furnished accessories:
Description P/N Qty.
16381A (1 pF) N/A 1
16382A (10 pF) N/A 1
16383A (100 pF) N/A 1
16384A (1000 pF) N/A 1
BNC (f) - (f) Adapters 1250-0080 4
Calibration report N/A 1
Carrying case 16380-85101 1
Operating note 16380-90011 1
16381A 16382A 16383A 16384A
Capacitance 1 pF 10 pF 100 pF 1000 pF
Nominal accuracy 0.10 %
Calibration stability ≤ 300 ppm/year
Dissipation factor ≤ 0.0001
53 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
16380C Standard capacitor set
Terminal connector: 4-Terminal Pair, BNC
Dimensions (approx.):
142 (W) x 88 (H) x 112 (D) [mm]
(capacitors)
Weight (approx.): 7.0 kg (including case
and 3 capacitors)
Other Accessories continued
Description: The 16380C is a standard capacitor set consisting of three precision
capacitors -0.01 µF (16385A), 0.1 µF (16386A), and 1 µF (16387A). These capacitors
are primarily used for performance tests of Keysight’s 4-Terminal Pair LCR meters
and impedance analyzers. Refer to the instrument’s operation/service manual for the
method of using these standards.
Applicable instrument: E4980A/AL, E4981A, E4990A
Furnished accessories:
Option:
16380C-001: Add 10 µF standard capacitor (16388A)
Description P/N Qty.
16385A (0.01 µF) N/A 1
16386A (0.1 µF) N/A 1
16387A (1 µF) N/A 1
BNC (f) - (f) Adapters 1250-0080 4
Calibration report N/A 1
Carrying case 16380-85104 1
Operating note 16380-90221 1
16385A 16386A 16387A 16388A
Capacitance 0.01 µF 0.1 µF 1 µF 10 µF
Nominal accuracy 0.10 % 0.10 % 0.10 % 0.05 %
Calibration stability ≤ 50 ppm/year
Dissipation factor ≤ 0.0004 ≤ 0.0005 ≤ 0.0007 ≤ 0.0005
