Up to 120 MHz (4-Terminal Pair): Other Components continued
16089C Kelvin IC clip leads
Terminal connector: 4-Terminal Pair, BNC
DUT connection: 4-Terminal
Cable length (approx.):
1.3 m (from connector to clip's tip)
Weight (approx.): 300 g
Additional error: The additional error
is negligible when compared to the
instrument's accuracy.
Description: This test fixture makes it possible to measure odd-shaped components that
cannot be measured with conventional fixtures. It is equipped with two insulated Kelvin
clips.
Applicable instruments: E4980A/AL, E4981A, E4990A
Frequency: 5 Hz to 100 kHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
DUT size:
See figure below
Furnished accessories:
Compensation and measurement: Open and short compensations are recommended
before measurement. For open compensation, do not connect the Kelvin clips to
anything. Short compensation is performed by connecting the Kelvin clips together.
After performing open and short compensations, the DUT is held with the Kelvin clips.
Description P/N Qty.
Operating and service manual 16089-90020 1
16 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
Up to 120 MHz (4-Terminal Pair): Port/Cable Extension

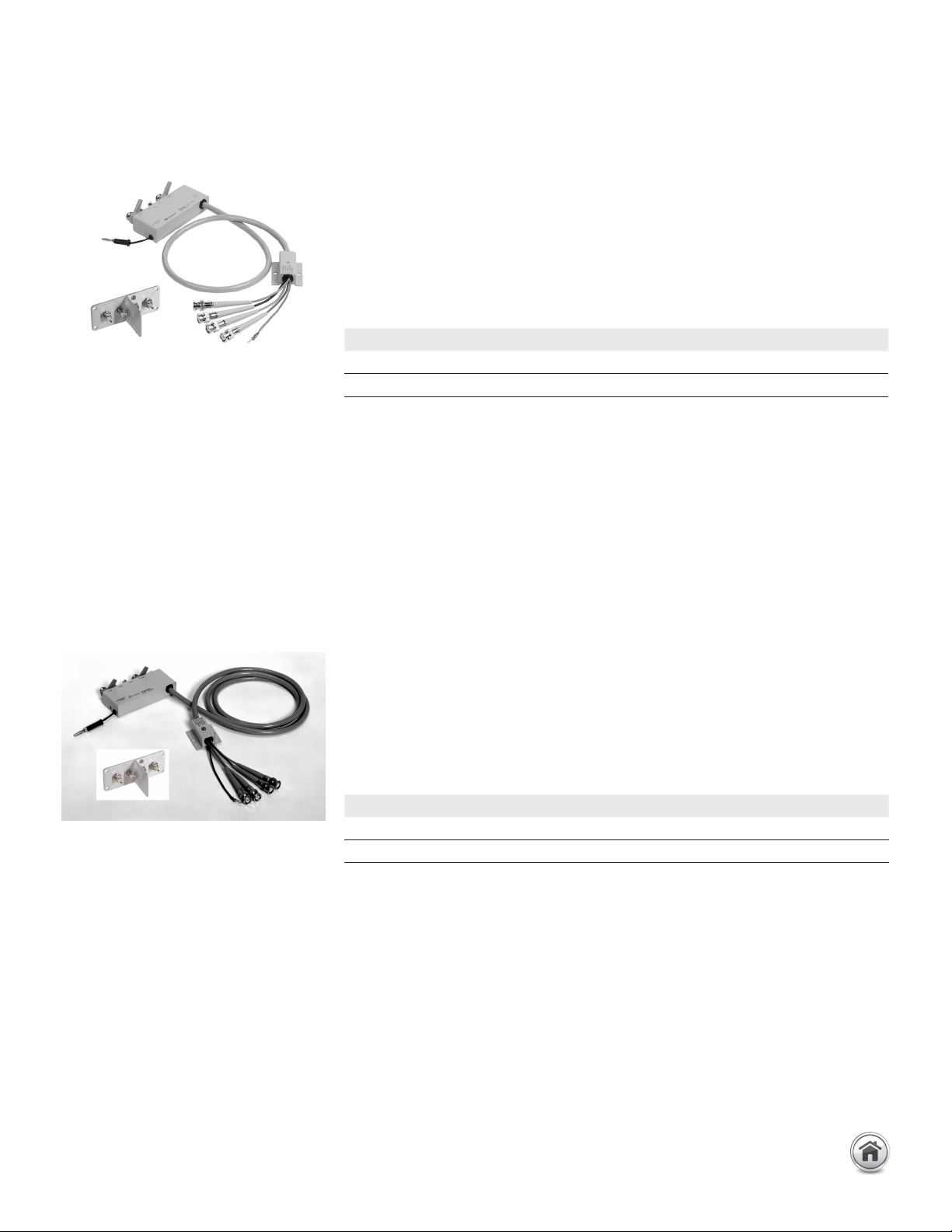

16048A Test leads
Terminal connector: 4-Terminal Pair, BNC
Cable length (approx.):
0.94 m (from connector to cable tip)
Cable tip: BNC (male)
Weight (approx.): 315 g
Additional error: For detailed information,
refer to the measurement instrument's
specifications.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC female connector board to allow the attachment
of user-fabricated test fixtures.
Applicable instruments: E4980A/AL, E4981A
Frequency: DC to 30 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
Furnished accessories:
Compensation and measurement: Cable length compensation is recommended before
measurement. Set the instrument's cable length compensation function to 1 m.
16048D Test leads
Terminal connector: 4-Terminal Pair, BNC
Cable length (approx.):
1.89 m (from connector to cable tip)
Cable tip: BNC (male)
Weight (approx.): 460 g
Additional error: For detailed information,
refer to the measurement instrument’s
specifications.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC female connector board to allow the attach-
ment of user-fabricated test fixtures.
Applicable instruments: E4980A/AL, E4981A
Frequency: DC to 30 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
Furnished accessories:
Compensation and measurement: Cable length compensation is recommended before
measurement. Set the instrument’s cable length compensation function to 2 m.
Description P/N Qty.
Terminal board with BNC(f)x4 16032-60071 1
Operating manual 16089-90001 1
Description P/N Qty.
Terminal board with BNC(f)x4 16032-60071 1
Operating manual 16048-90031 1
17 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
Up to 120 MHz (4-Terminal Pair): Port/Cable Extension continued

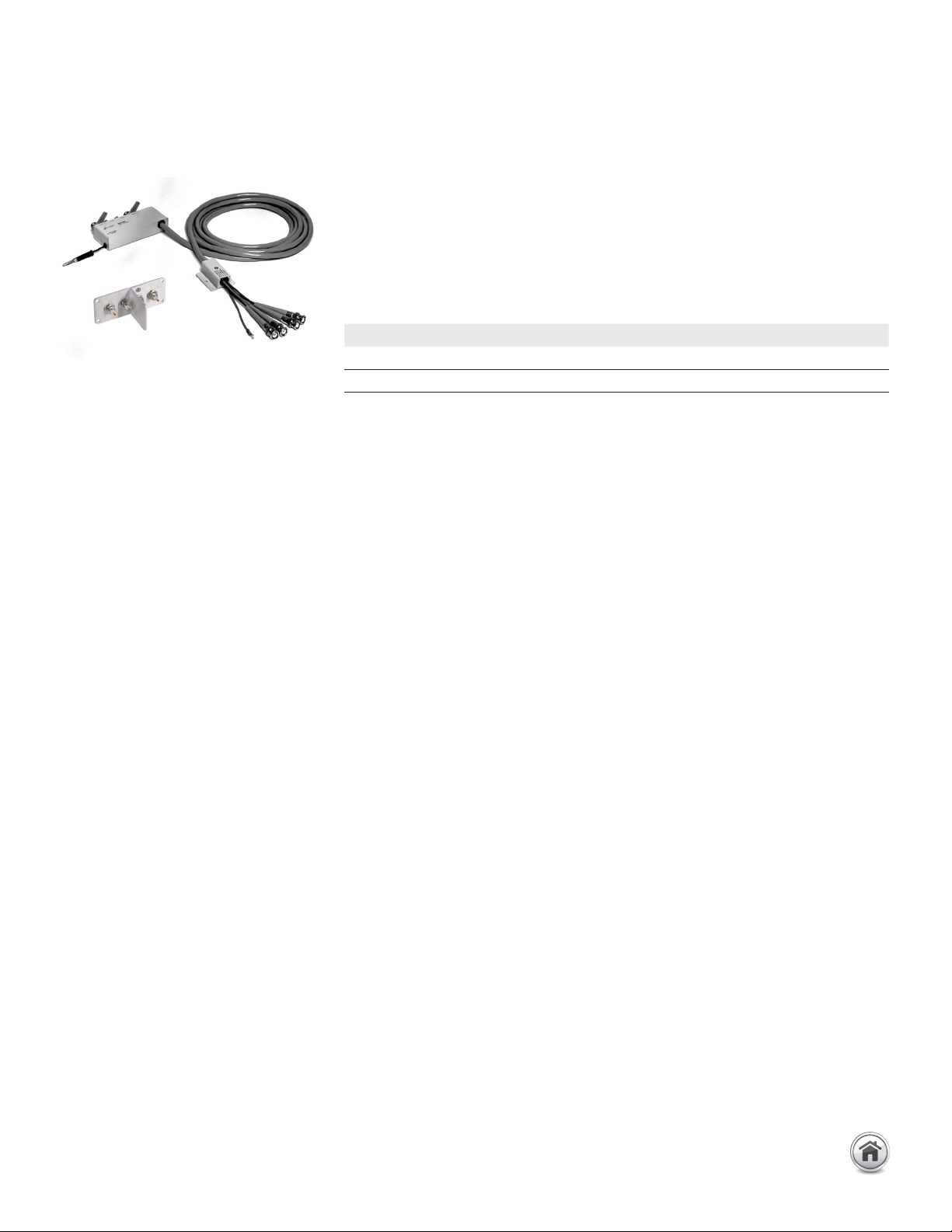

16048E Test leads
Terminal connector: 4-Terminal Pair, BNC
Cable length (approx.): 3.8 m (from
connector to cable tip)
Cable tip: BNC (male)
Weight (approx.): 690 g
Additional Error: For detailed information,
refer to the measurement instrument’s
specifications.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC female connector board to allow the attachment
of user-fabricated test fixtures.
Applicable instruments: E4980A /AL
Frequency: DC to 2 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
Furnished accessories:
Compensation and measurement: Cable length compensation is recommended before
measurement. Set the instrument’s cable length compensation function to 4 m.
Description P/N Qty.
Terminal board with BNC(f)x4 16032-60071 1
Operating manual 16048-90041 1
