Up to 3 GHz (7 mm): SMD continued
16196C Parallel electrode SMD test fixture continued
Options:
16196C-710: Add the magnifying lens and tweezers
To maintain adequate measurement performance, keep the electrodes and the short
plate in good condition. Contaminants and abrasion on these parts considerably affect
measurement results, especially for low value measurements. Periodic fixture cleaning
and part replacement is recommended to avoid deterioration of measurement perfor-
mance. The 16196x fixtures are designed with simplicity in mind, so that an operator
can easily replace parts. Spare parts, which are likely to be abraded, are supplied with
the 16196U Maintenance Kit.
16196U Maintenance kit
Opt. 16196U-010: Upper electrode, 5 piece set (common to 16196A/B/C models)
Opt. 16196U-300: Short plate for 0201 (inch)/0603 (mm) size, 5 piece set (for 16196C)
Opt. 16196U-310: Lower electrode, 5 piece set (for 16196C)
Compensation and measurement: Open and short compensations are recommended in
combination with the electrical length compensation before measurement. The fixture’s
electrical length must be entered into the electrical length compensation function of
the measurement instrument first. Next, open compensation is performed by placing
the furnished open plate on top of the insulator assembly. Short compensation is per-
formed by placing the furnished shorting plate on top of the insulator assembly. After
performing open and short compensations in combination with the electrical length
compensation, the DUT is inserted into the test fixture. Once the measurement of the
DUT is complete, remove the DUT from the fixture, by using the furnished push ring.
Refer to the 16196A figures to see how compensation and measurement is performed.
40 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

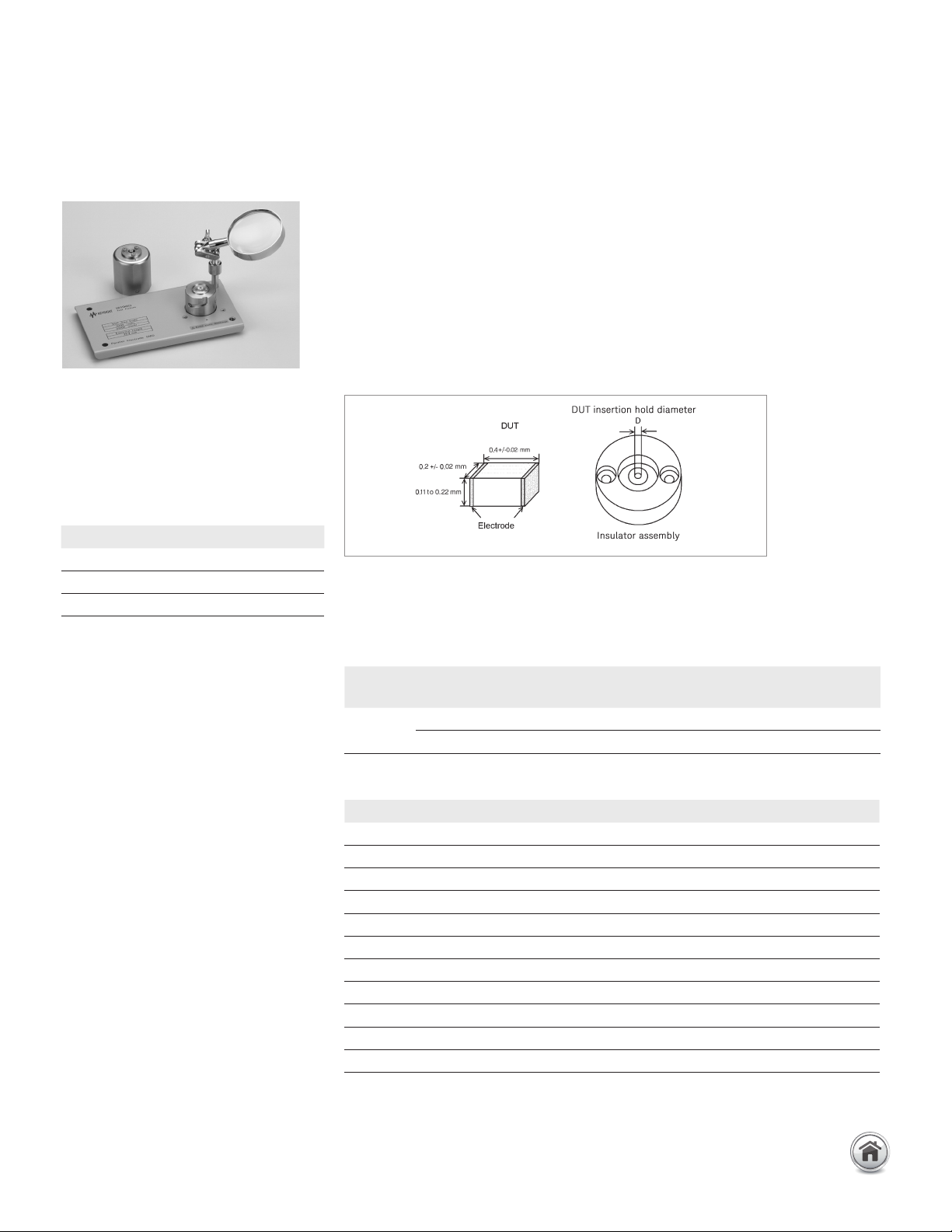

16196D Parallel electrode SMD
test fixture
Terminal connector: 7 mm
DUt connection: 2-Terminal
Electrical length: 27.3 mm
Dimensions (approx.):
140 (W) x 48 (H) x 78 (D) [mm]
Weight (approx.): 250 g
Additional error:
f: frequency [GHz]
Up to 3 GHz (7 mm): SMD continued
Description: This test fixture is designed for impedance evaluations of parallel electrode
SMDs. It achieves stable frequency characteristics up to 3 GHz and provides highly
repeatable measurements. The applicable SMD size code is 01005 (inch)/0402 (mm).
Applicable instrument: E4982A, E4990A + 42942A*, E4991B, E5061B-3L3/3L4/3L5
with Opt. 005 + 16201A
* Option E4990A-120 is required
Frequency: DC to 3 GHz
Maximum voltage: ±42 V peak max. (AC +DC)
Operating temperature: –55 to +85 °C
DUT size: The applicable SMD size is 01005 (inch) /0402 (mm). For details, see the
figure below.
The 16196D is furnished with two different insulator assemblies, since any gaps
between the DUT and the cylindrical insulator will result in improper positioning and
subsequent measurement errors. Select an insulator assembly that reduces the gap the
most. See the table below for dimensions of the insulator assemblies.
Furnished accessories:
1. Opt. 16196D-710 only
2. 16196-15101 as replacement part number
Type of error Impedance
Proportional error 1.0 x f
2
[%]
Open repeatability 5 + 40 x f [
µ
S]
Short repeatability 30 + 125 x f [mΩ]
Hole diameter of insulator
assembly (mm)
SMD case size examples
Length, width, Height (mm)
16196D ϕ0.34 0.4 x 0.2 x 0.2
ϕ0.30 0.4 x 0.2 x 0.13/0.2
Description P/N Qty.
Operation and service manual 16196-90040 1
Insulator assembly ϕ0.34 mm 16196-60412 1
Insulator assembly ϕ0.30 mm 16196-60414 1
Open plate 16196-29002 1
Short plate
16196-29030
2
1
Push ring 16196-24004 1
Magnifying lens
1
16193-60002 1
Tweezers
2
8710-2081 1
Wrench 8710-0909 1
Cleaning rod 5182-7586 1
Carrying case 16196-60450 1
41 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

16196D Parallel electrode SMD test fixture continued
Options:
16196D-710: Add the magnifying lens and tweezers
To maintain adequate measurement performance, keep the electrodes and the short
plate in good condition. Contaminants and abrasion on these parts considerably affect
measurement results, especially for low value measurements. Periodic fixture cleaning
and part replacement is recommended to avoid deterioration of measurement perfor-
mance. The 16196x fixtures are designed with simplicity in mind, so that an operator can
easily replace parts. Spare parts, which are likely to be abraded, are supplied with the
16196U Maintenance Kit.
16196U Maintenance kit
Opt. 16196U-020: Upper electrode, 5 piece set for 16196D
Opt. 16196U-400: Short plate for 01005 (inch)/0402 (mm) size, 5 piece set (for 16196D)
Opt. 16196U-410: Lower electrode, 5 piece set (for 16196D)
Compensation and measurement: First of all, install the appropriate insulator as-
sembly into the fixture. Then, perform compensation. Open and short compensations
are recommended in combination with the electrical length compensation before
measurement. The fixture’s electrical length must be entered into the electrical length
compensation function of the measurement instrument first. Next, open compensation
is performed by placing the furnished open plate on top of the insulator assembly.
Short compensation is performed by placing the furnished shorting plate on top of the
insulator assembly. After performing open and short compensations in combination with
the electrical length compensation, the DUT is inserted into the test fixture. Once the
measurement of the DUT is complete, remove the DUT from the fixture, by using the
furnished push ring. Refer to the 16196A figures to see how compensation and measure-
ment is performed.
Up to 3 GHz (7 mm): SMD continued
