1 61 9 2A Par al lel electrode SM D test f ix ture T erminal connector : 7 mm DUT connec tion: 2 -Te r m i n a l Elec trical leng th: 1 1 mm Dimensions ( appr o x.): 1 5 0 (W ) x 70 (H) x 9 0 (D ) [mm ] Wei gh t (ap pr o…

100%1 / 64
16092A Spring clip fixture
Terminal connector: 7 mm
DUT connection: 2-Terminal
Electrical length: 3.4 mm
Dimensions (approx.): 150 (W) x 70 (H) x 80 (D) [mm]
Weight (approx.): 180 g
Additional error: See figure below
Up to 3 GHz (7 mm): Lead Components
Description: This test fixture is designed for impedance evaluation of both lead
and SMD. It is furnished with two modules that can be readily screwed onto the
plate to measure either lead or SMD.
Applicable instrument: E4982A, E4990A + 42942A*, E4991B,
E5061B-3L3/3L4/3L5 with Opt. 005 + 16201A
* Option E4990A-120 is required
Frequency: DC to 500 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
DUT size: See figure below
Furnished accessories:
Compensation and measurement: Open and short compensations are
recommended in combination with the electrical length compensation before
measurement. The fixture’s electrical length must be entered into the electrical
length compensation function of the measurement instrument first. When using
the SMD module, open compensation is performed by separating the high and
the low electrodes from each other. The separation should be equivalent in size
to the DUT’s width. Short compensation is performed by usinf the furnished
shorting plate. When using the lead component module, open compensation
is performed by not having the module-electrodes be connected to anything.
Short compensation is performed by using the furnished shorting plate. After
performing open and short compensations in combination with the electrical
length compensation, the DUT is inserted into the test fixture.
Inserting the SMD
Inserting the leaded component
Description P/N Qty.
Shorting plate 16092-08010 1
Operating note 16092-90010 1
29 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
16192A Parallel electrode SMD
test fixture
Terminal connector: 7 mm
DUT connection: 2-Terminal
Electrical length: 11 mm
Dimensions (approx.):
150 (W) x 70 (H) x 90 (D) [mm]
Weight (approx.): 400 g
Additional error:
f: [GHz]
Up to 3 GHz (7 mm): SMD
Description: This test fixture is designed for impedance evaluations of parallel electrode
SMD. The minimum SMD size that this fixture is adapted to evaluate is 1 (L) [mm].
Applicable instrument: E4982A, E4990A + 42942A*, E4991B, E5061B-3L3/3L4/3L5
with Opt. 005 + 16201A
*Option E4990A-120 is required
Frequency: DC to 2 GHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: –55 to +85°C
DUT size: 1 mm to 20 mm (length)
Furnished accessories:
Description P/N Qty. Option
Operation and service manual 16192-90040 1 Standard
General sized
Shorting device
(1 x 1 x 2.4 (mm))
Shorting device
(1.6 x 2.4 x 2 (mm))
Shorting device
(2.4 x 2.4 x 3.2 (mm))
Shorting device
(2.4 x 2.4 x 4.5 (mm))
16191-29001
16191-29002
16191-29003
16191-29004
1
1
1
1
16192A-701
16192A-701
16192A-701
16192A-701
EIA/EIAJ industrial standard sized
Shorting device
(1 x 0.5 x 0.5 (mm))
Shorting device
(1.6 x 0.8 x 0.8 (mm))
Shorting device
(2.0 x 1.2 x 0.8 (mm))
Shoring device
(3.2 x 1.6 x 0.8 (mm))
16191-29005
16191-29006
16191-29007
16191-29008
1
1
1
1
16192A-010
16192A-010
16192A-010
16192A-010
Case for shorting devices 1540-0692 1 16192A-010/701
Magnifying lens 16193-60002 1 16192A-710
Tweezers 8710-2081 1 16192A-710
Type of error Impedance
Proportional error 1.5 x f
2
[%]
Open repeatability 2 + 30 x f [
µ
S]
Short repeatability 30 + 250 x f [mΩ]
30 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
Up to 3 GHz (7 mm): SMD continued
Options:
16192A-010: Add EIA/EIAJ industrial standard sized shorting bar set
16192A-701: Add general sized shorting bar set
16192A-710: Add the magnifying lens and tweezers
Compensation and measurement: Open and short compensations are
recommended in combination with the electrical length compensation before
measurement. The fixture’s electrical length must be entered into the electrical
length compensation function of the measurement instrument first. Then open
compensation is performed by separating the high and the low electrodes from
each other. The separation should be equivalent in size to the DUT’s width. Short
compensation is performed by using option 16192A-010/701 shorting bar set.
After performing open and short compensations in combination with the electri-
cal length compensation, the DUT is inserted into the test fixture. The following
figures show how compensation and measurement is performed.

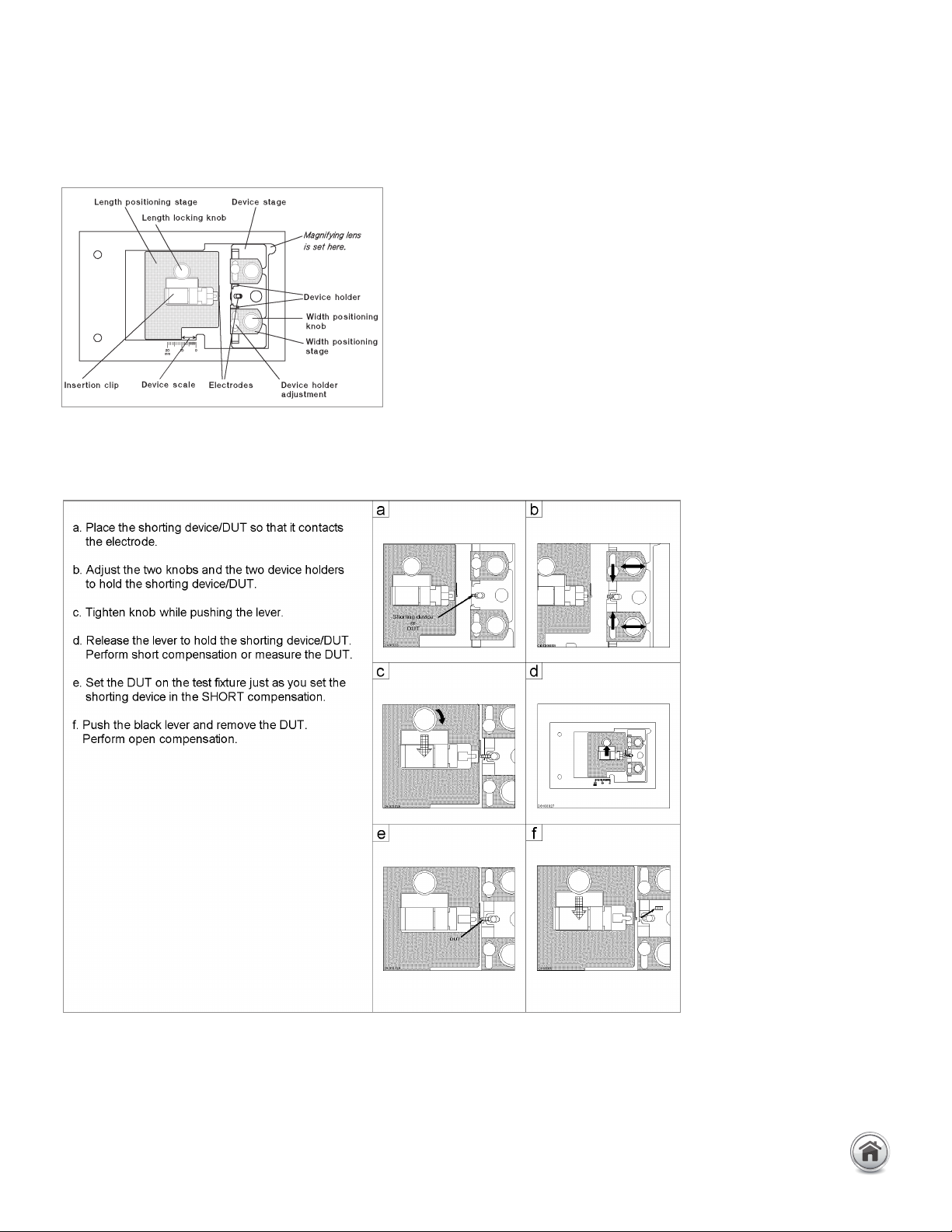

Test fixture overview
Open/short compensation
For more details, please refer
to 16192A operation manual.
16192A Parallel electrode SMD test fixture continued
