1 6 200 B e x ternal DC b ias adapter T erminal connector : 7 mm DC BI AS i nput co nnec tor : BNC (f ) Vol tage monitor connec tor: BNC (f ) Dimensions ( appr o x.): 1 70 ( W) x 7 0 (H) x 1 30 (D) [ mm ] Wei gh t (ap pr…
Optional accessories P/N
Contact board (Guide PCA 0201, 70 micrometer) 16198A-101
Contact board (Guide PCA 0201, 100 micrometer) 16198A-102
Contact board (Guide PCA 0402, 100 micrometer) 16198A-201
0201 Short bar 5-piece set 16198A-110
0402 Short bar 5-piece set 16198A-210
Weight 50 g 16198A-520
Weight 100 g 16198A-521
Weight 200 g 16198A-522
Carrying case 16198A-530
Torque driver 16198A-531
User manual English 16198A-ABA
User manual Japanese 16198A-ABJ
Retrofit/service parts P/N
Contact board (Guide PCA 0201, 70 micrometer) 16198AU-101
Contact board (Guide PCA 0201, 100 micrometer) 16198AU-102
Contact board (Guide PCA 0402, 100 micrometer) 16198AU-201
Contact board 8-piece set (Guide PCA 0201, 70 micrometer) 16198AU-103
Contact board 8-piece set (Guide PCA 0201, 100 micrometer) 16198AU-104
Contact board 8-piece set (Guide PCA 0402, 100 micrometer) 16198AU-202
0201 Short bar 5-piece set 16198AU-110
0402 Short bar 5-piece set 16198AU-210
Weight 50 g 16198AU-520
Weight 100 g 16198AU-521
Weight 200 g 16198AU-522
Carrying case 16198AU-530
Torque driver 16198AU-531
Pusher unit 16198AU-540
DUT cover ass’y 16198AU-544
Connector APC3.5 16198AU-545
Up to 3 GHz (7 mm): SMD continued
16198A Bottom electrode SMD test fixture continued
47 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

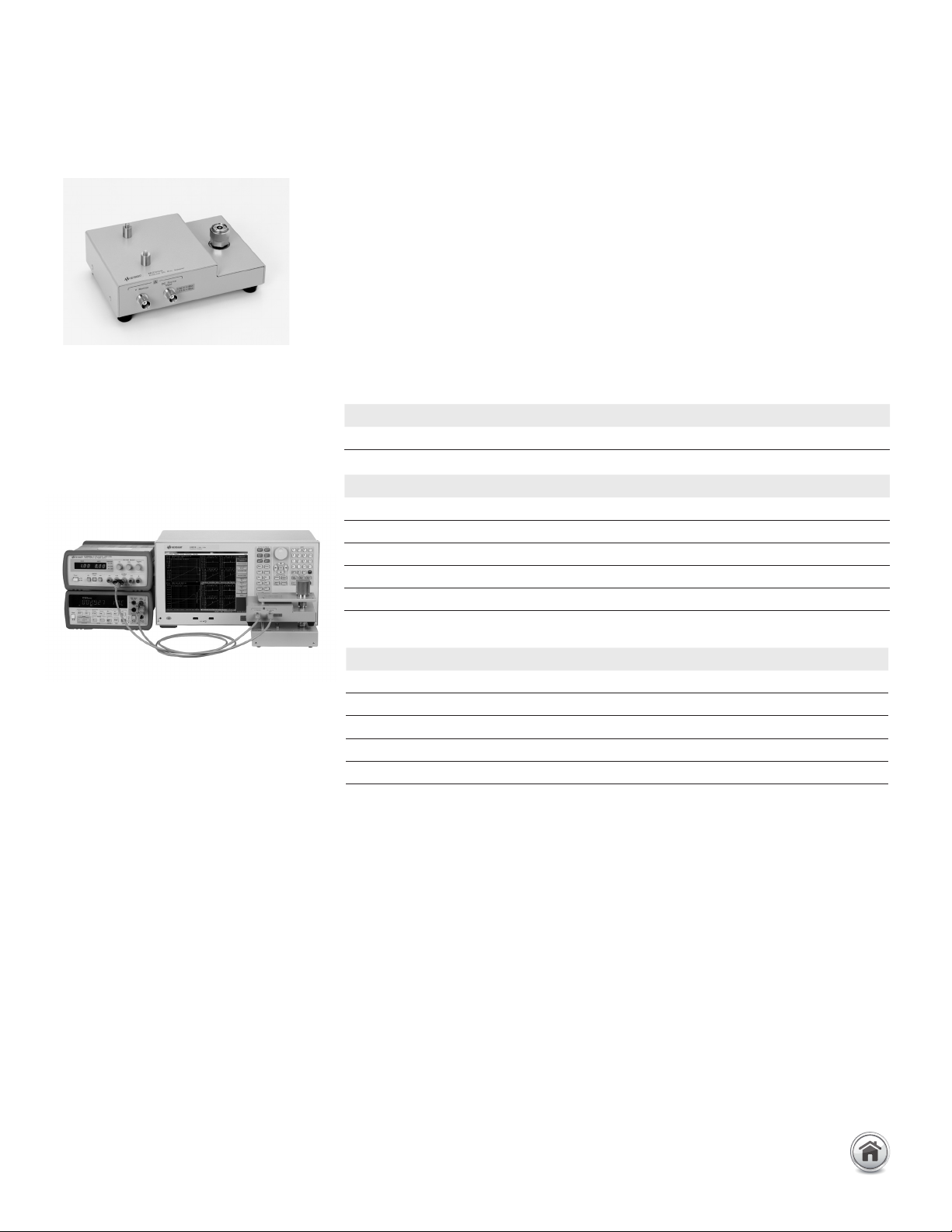

16200B external DC bias adapter
Terminal connector: 7 mm
DC BIAS input connector: BNC(f)
Voltage monitor connector: BNC(f)
Dimensions (approx.):
170 (W) x 70 (H) x 130 (D) [ mm]
Weight (approx.): 900 g
Up to 3 GHz (7 mm): DC Bias Accessories
Description: This test fixture is designed to measure a DUT with DC bias. By connecting
an external DC current source to the 16200B, it can supply a bias current across the
DUT of up to ±5 Adc through a 7 mm port.
Applicable instruments: E4982A, E4990A + 42942A*, E4991B, E5061B-3L3/3L4/3L5
with Opt. 005 + 16201A
* Option E4990A-120 is required
Frequency: 1 MHz to 1 GHz
DC bias: Up to 5A, 40 V (Input)
Operating temperature: 0 to 55°C
Applicable fixtures: 16192A, 16194A, 16196A/B/C/D, 16197A, 16092A
Furnished accessories:
16200B-001 Shorting device set
16200B-001 Load device set
Options:
16200B-001: Add Working std set
Compensation and measurement: When using the 4291B, follow these instructions:
Perform open, short, load and low-loss calibration at the 7 mm test port of the 4291B.
Connect the 16200B to the 7 mm test port, and connect the test fixture onto the
16200B. Open, short, and load compensations are recommended before measurement.
Use the short bars and 51 Ω SMD resistors furnished with 16200B-001 to perform short
and load compensation respectively.
When using other instruments, follow these instructions:
Connect the 16200B to the 7 mm test port of the measurement instrument. Perform
open, short, load (and low-loss calibration) at the 7 mm test port of the 16200B. Then,
connect the test fixture onto the 16200B and perform open, short, and electrical length
compensations in the usual manner.
Connection example
Description P/N Qty.
Operation and service manual 13200-90011 1
Size P/N Qty.
0.6 x 0.3 x 0.3 (mm) 16197-29001 2
1 x 0.5 x 0.5 (mm) 16191-29005 2
1.6 x 0.8 x 0.8 (mm) 16191-29006 2
2.0 x 1.2 x 0.8 (mm) 16191-29007 2
3.2 x 1.6 x 0.8 (mm) 16191-29008 2
Size P/N Qty.
0.6 x 0.3 x 0.3 (mm) 0699-6926 5
1 x 0.5 x 0.5 (mm) 5182-0433 5
1.6 x 0.8 x 0.8 (mm) 5182-0434 5
2.0 x 1.2 x 0.8 (mm) 5182-0435 5
3.2 x 1.6 x 0.8 (mm) 5182-0436 5
48 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

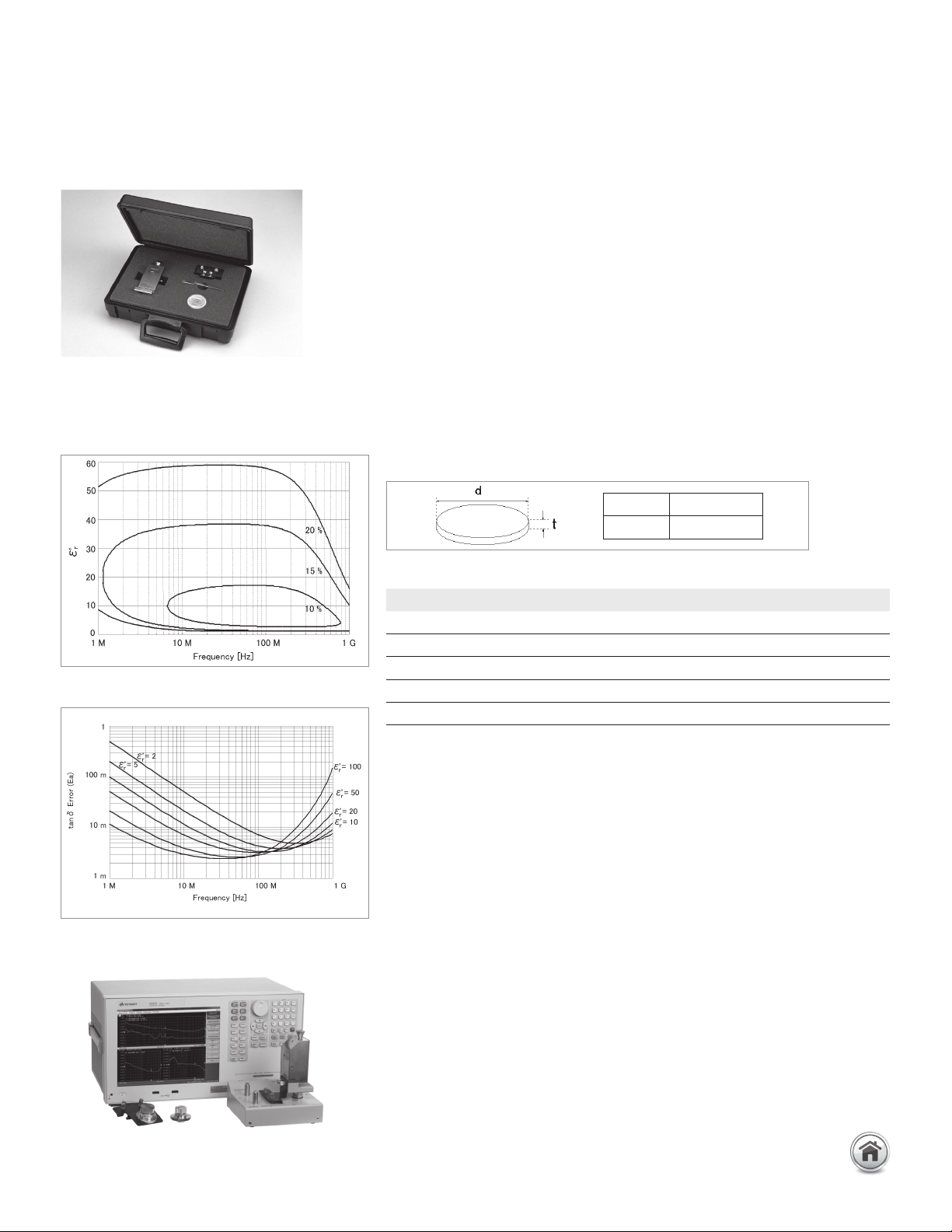

16453A Delectric material test
fixture
Terminal connector: 7 mm
Dimensions (approx.):
130 (H) x 50 (W) x 60 (D) [mm]
Weight (approx.): 600 g
Measurement accuracy (including the E4991B):
Up to 3 GHz (7 mm): Material
Description: The 16453A is designed for accurate dielectric constant and loss
tangent measurements on the E4991B. It employs the parallel plate method,
which sandwiches the material between two electrodes to form a capacitor.
E4991B measures the capacitance created from the fixture, and option
E4991B-002 firmware calculates the relative complex permittivity. Adjustment to
insure parallel electrodes is required when using the 16451B. This adjustment is
not required with 16453A because the fixture has a flexible electrode that adjusts
automatically to the material surface.
Applicable instruments: E4991B with Opt. E4991B-002
Frequency: 1 MHz to 1 GHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: –55 to 200°C
When Option E4991B-007 temperature characteristic test kit is used with
E4991B, the operating temperature range is between –55°C and +150°C.
Material size:
Furnished accessories:
Compensation and measurement: Open, short and load compensations are
recommended before measurement. Open compensation is performed by
separating the high and the low electrodes from each other. Short compensation
is performed by connecting the high and low electrodes together. Load compen-
sation is performed by using the furnished load material. After performing open,
short and load compensations, the material under test is inserted into the test
fixture.
Typical permittivity (er´) Measurement accuracy
(@ thickness = 1 mm)
Typical loss tangent (tan δ) Measurement accuracy
(@ thickness = 1 mm)
E4991B with 16453A
Diameter ≥ 15 mm
Thickness 0.3 mm ~ 3 mm
Description P/N Qty.
Fixture holder 16453-01213 1
Load 16453-60021 1
Tweezers 8710-2081 1
Carrying case 16453-60011 1
Operation and service manual 16453-90010 1
