16380C Standard capacitor set
Terminal connector: 4-Terminal Pair, BNC
Dimensions (approx.):
142 (W) x 88 (H) x 112 (D) [mm]
(capacitors)
Weight (approx.): 7.0 kg (including case
and 3 capacitors)
Other Accessories continued
Description: The 16380C is a standard capacitor set consisting of three precision
capacitors -0.01 µF (16385A), 0.1 µF (16386A), and 1 µF (16387A). These capacitors
are primarily used for performance tests of Keysight’s 4-Terminal Pair LCR meters
and impedance analyzers. Refer to the instrument’s operation/service manual for the
method of using these standards.
Applicable instrument: E4980A/AL, E4981A, E4990A
Furnished accessories:
Option:
16380C-001: Add 10 µF standard capacitor (16388A)
Description P/N Qty.
16385A (0.01 µF) N/A 1
16386A (0.1 µF) N/A 1
16387A (1 µF) N/A 1
BNC (f) - (f) Adapters 1250-0080 4
Calibration report N/A 1
Carrying case 16380-85104 1
Operating note 16380-90221 1
16385A 16386A 16387A 16388A
Capacitance 0.01 µF 0.1 µF 1 µF 10 µF
Nominal accuracy 0.10 % 0.10 % 0.10 % 0.05 %
Calibration stability ≤ 50 ppm/year
Dissipation factor ≤ 0.0004 ≤ 0.0005 ≤ 0.0007 ≤ 0.0005
54 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

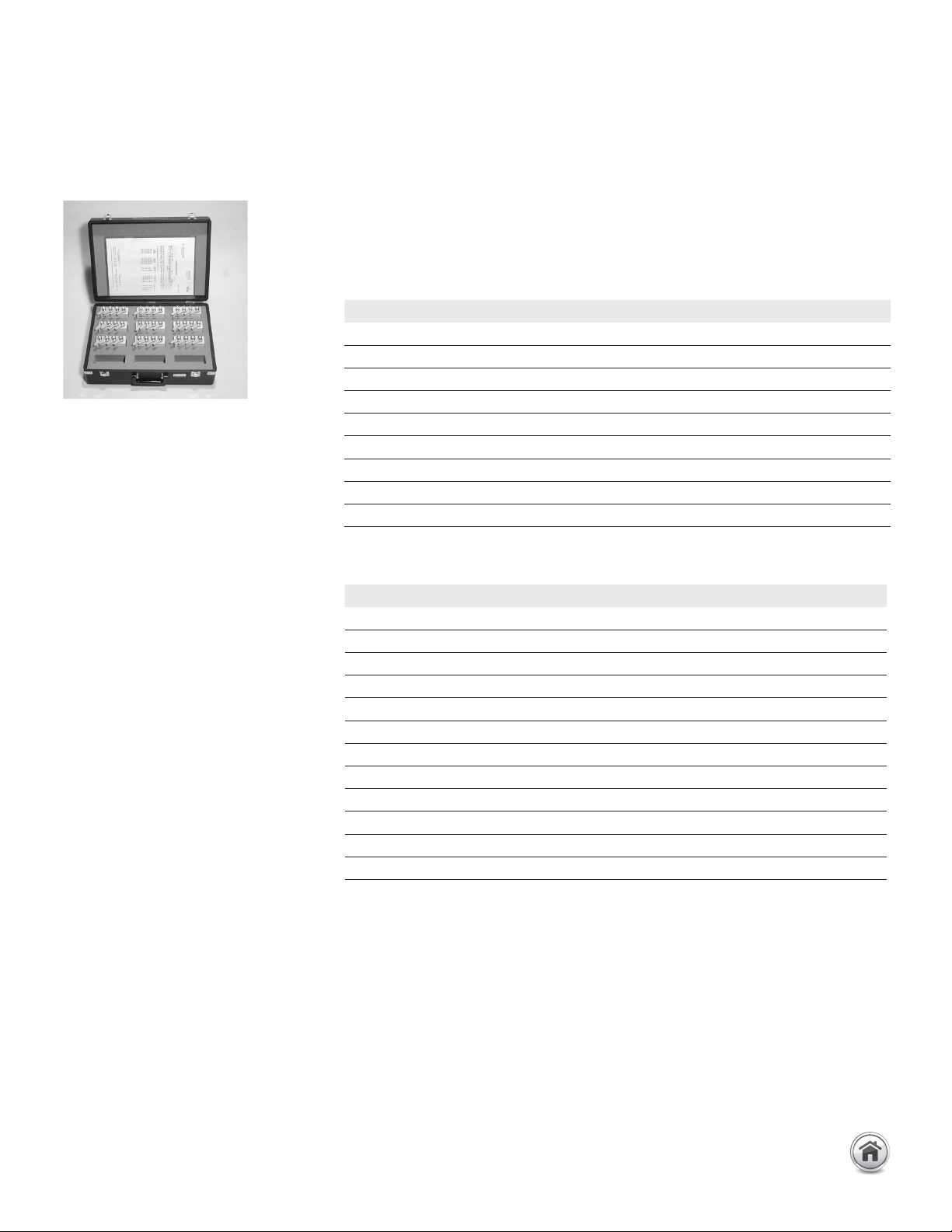

42030A Four-Terminal pair
standard resistor set
Terminal connector: 4-Terminal pair, BNC
Dimensions (approx.):
94 (W) x 31 (H) x 67 (D) [mm] (resistors)
Weight (approx.): 3.7 kg (including case
and 9 resistors)
Other Accessories continued
Description: The 42030A is a standard resistor set consisting of nine precision resistor
standards which range from 1 mΩ to 100 kΩ. These resistors are primarily used for
performance tests of Keysight’s 4-Terminal Pair LCR meters and impedance analyzers.
Refer to the instrument’s operation/service manual for the method of using these
standards.
Applicable instrument: E4980A/AL, E4981A, E4990A
Furnished accessories:
Description P/N Qty.
42031A (1 mΩ) N/A 1
42032A (10 mΩ) N/A 1
42033A (100 mΩ) N/A 1
42034A (1 Ω) N/A 1
42035A (10 Ω) N/A 1
42036A (100 Ω) N/A 1
42037A (1 kΩ) N/A 1
42038A (10 kΩ) N/A 1
42039A (100 kΩ) N/A 1
Calibration report N/A 1
Carrying case 42030-60100 1
Operating and service manual 42030-90001 1
Model DC resistance
42031A 1 mΩ ± 0.2%
42032A 10 mΩ ± 0.2%
42033A 100 mΩ ± 0.2%
42034A 1 Ω ± 0.2%
42035A 10 Ω ± 0.1%
42036A 100 Ω ± 0.1%
42037A 1 kΩ ± 0.1%
42038A 10 kΩ ± 0.1%
42039A 100 kΩ ± 0.1%
55 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

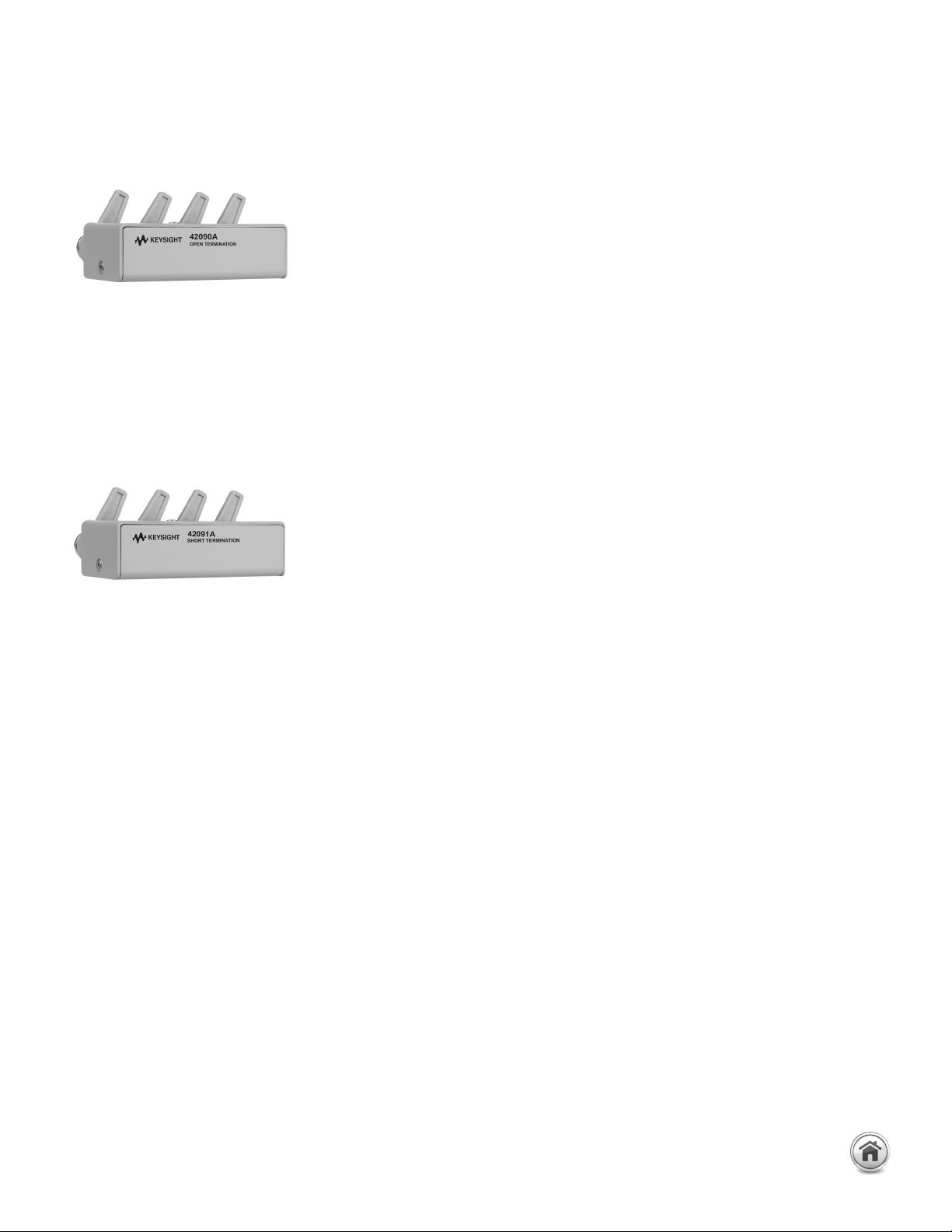

42090A Open termination
Terminal connector: 4-Terminal Pair, BNC
Dimensions (approx.):
94(W) x 31(H) x 67(D) [mm]
Weight (approx.): 120 g
Other Accessories continued
Description: The 42090A is an open termination and is primarily used for performance
tests of Keysight’s 4-Terminal Pair LCR meters and impedance analyzers. Refer to the
instrument’s operation/service manual for the method of using this standard.
Applicable instrument: E4980A/AL, E4981A, E4990A
42091A Short termination
Terminal connector: 4-Terminal Pair, BNC
Dimensions (approx.):
94(W) x 31(H) x 67(D) [mm]
Weight (approx.): 120 g
Description: The 42091A is a short termination and is primarily used for performance
tests of Keysight’s 4-Terminal Pair LCR meters and impedance analyzers. Refer to the
instrument’s operation/service manual for the method of using this standard.
Applicable Instrument: E4980A/AL, E4981A, E4990A
