Up to 3 GHz (7 mm): Material continued

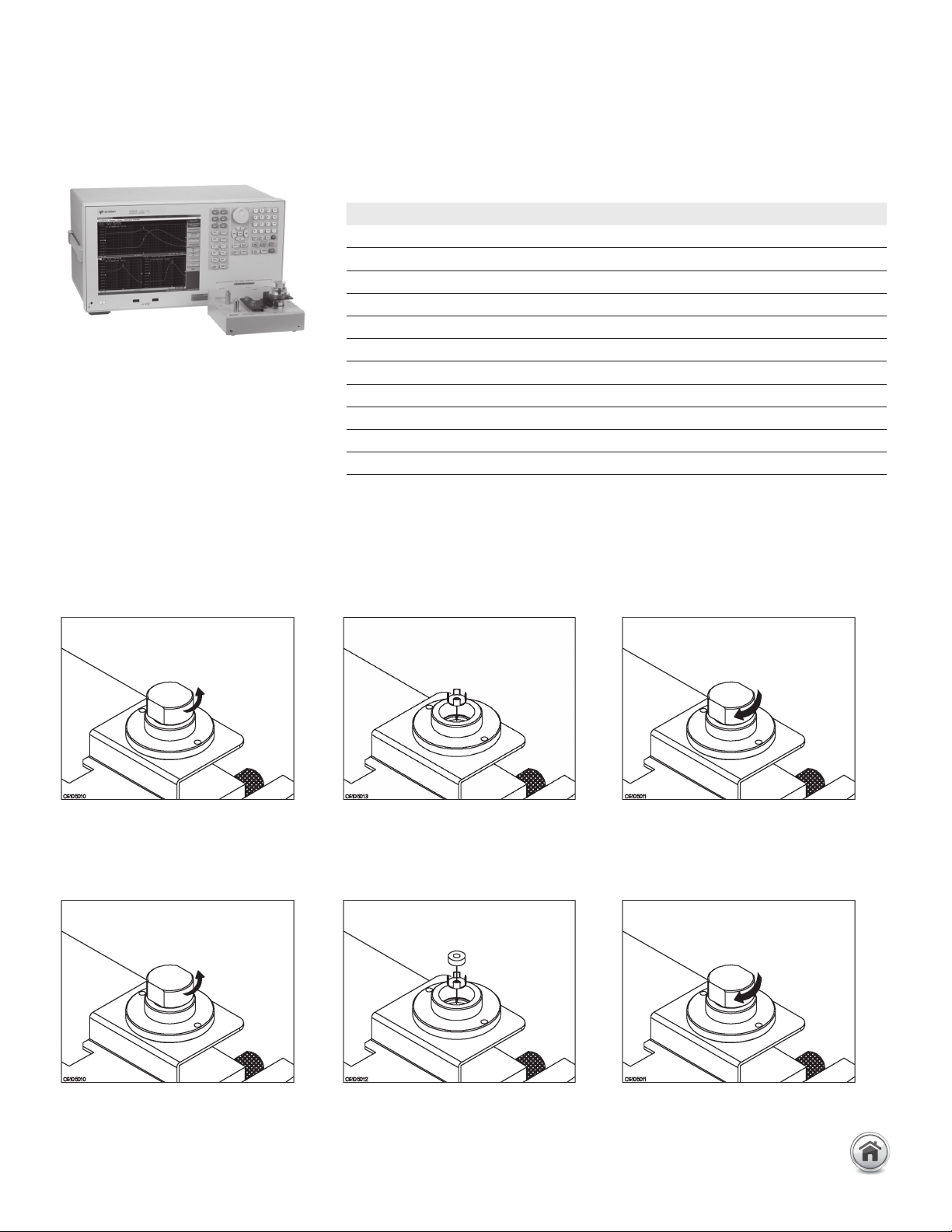

Placing the MUT on the test fixture as follows:
Furnished accessories:
Compensation and measurement: Short compensation is required before measure-
ment. Short compensation is performed by only inserting the MUT holder into the test
fixture. After performing short compensation, the MUT is inserted into the fixture as
shown below.
Remove the cap of the fixture Place a MUT holder only in the fixture Replace the cap by screwing tightly
Remove the cap of the fixture Place a MUT onto the MUT holder and insert it
into the fixture.
Replace the cap by screwing tightly
Short compensation
E4991B with 16454A
Description P/N Qty.
Fixture holder 16454-00601 1
Tweezers 8710-2081 1
Screw, hex recess 0515-1050 1
Holder A 16454-25002 1
Holder B 16454-25001 1
Holder C (Without hole) 16454-25004 1
Holder D (With hole) 16454-25003 1
Holder case 1540-0622 1
Hex key (for replacing fixtures) 8710-1181 1
Carrying case 16454-60101 1
Operation and service manual 16454-90020 1
16454A magnetic material test fixture continued
51 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

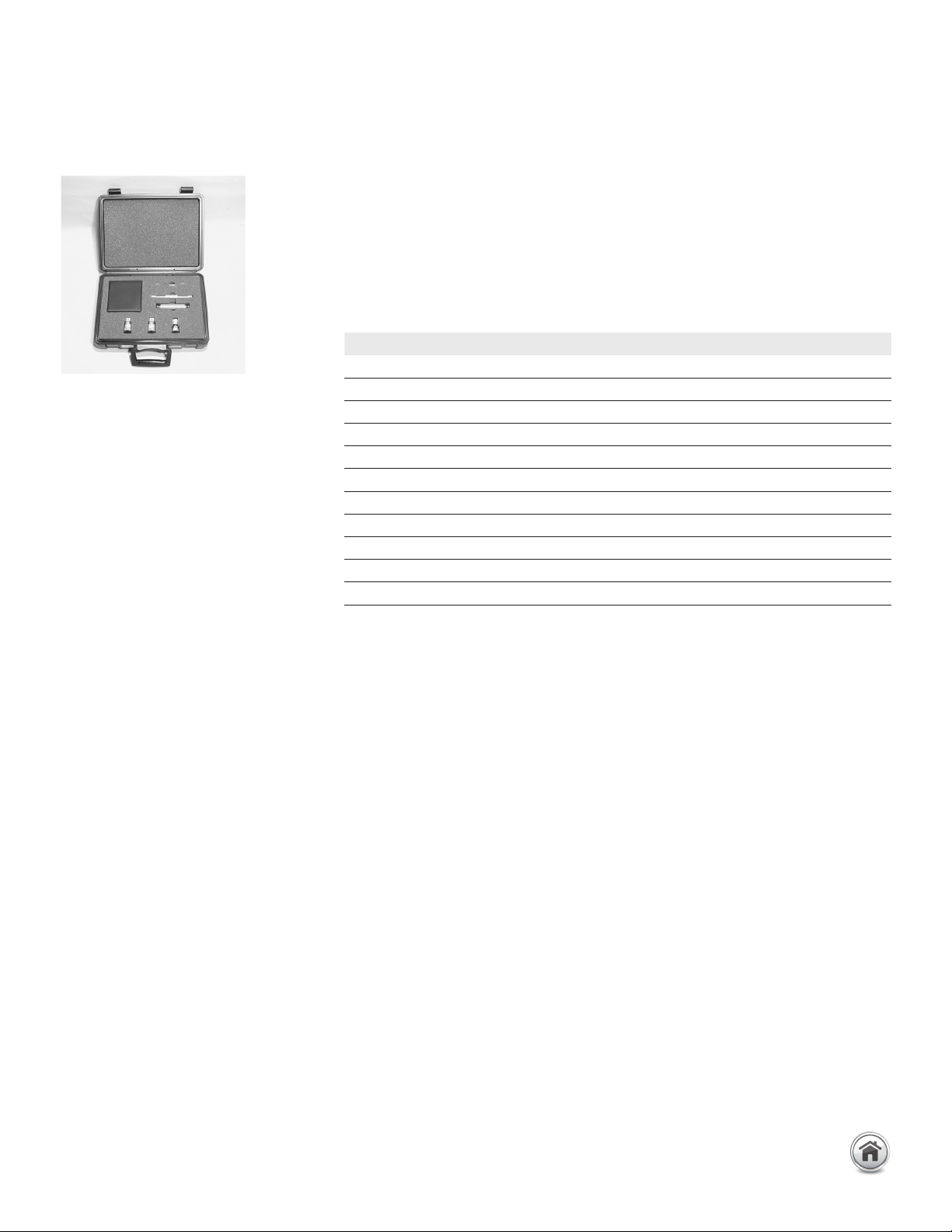

16190B Performance test kit
Terminal connector: 7 mm
Dimensions (approx.):
350 (W) x 100 (H) x 270 (D) [mm]
Weight (approx.): 2.0 kg
Other Accessories
Description: The 16190B is a performance test kit designed to verify the impedance
measurement accuracy of LCR meters or impedance analyzers that have a 7 mm
measurement terminal. Refer to the instrument’s operation/service manual for the
method of using these standards.
Applicable instrument: E4982A, E4990A + 42942A*, E4991B
* Option E4990A-120 is required
Furnished accessories:
Description P/N Qty.
Airline, 50 Ω, 7 mm N/A 1
Cap, Protection 1401-0123 2
50 Ω termination N/A 1
Open termination N/A 1
Short termination N/A 1
Cap, termination protection 16190-25011 3
Wrench, 1/2 and 8/15, open end 8710-1770 1
Carrying case N/A 1
Floppy diskette for calibration data N/A 1
Calibration report N/A 1
Operating note 16190-90020 1
52 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

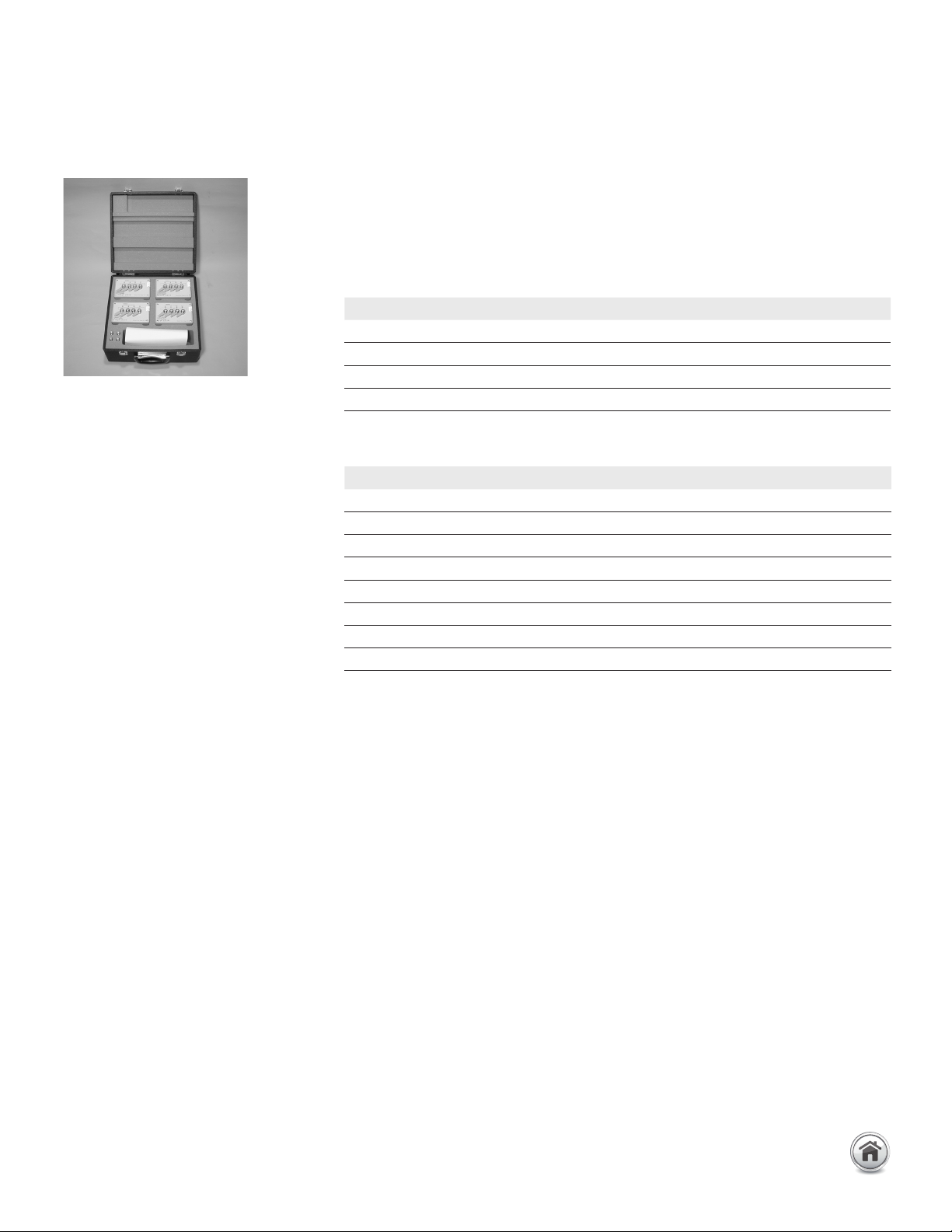

16380A Standard capacitor set
Terminal connector: 4-Terminal Pair, BNC
Dimensions (approx.):
142 (W) x 88 (H) x 112 (D) [mm]
(capacitors)
Weight (approx.): 8.0 kg (including case
and 4 capacitors)
Other Accessories continued
Description: The 16380A is a standard capacitor set consisting of four precision
capacitors -1 pF (16381A), 10 pF (16382A) 100 pF (16383A), 1000 pF (16384A). These
capacitors are primarily used for performance tests of Keysight’s 4-Terminal Pair LCR
meters and impedance analyzers. Refer to the instrument’s operation/service manual
for the method of using these standards.
Applicable instrument: E4980A/AL, E4981A, E4990A
Furnished accessories:
Description P/N Qty.
16381A (1 pF) N/A 1
16382A (10 pF) N/A 1
16383A (100 pF) N/A 1
16384A (1000 pF) N/A 1
BNC (f) - (f) Adapters 1250-0080 4
Calibration report N/A 1
Carrying case 16380-85101 1
Operating note 16380-90011 1
16381A 16382A 16383A 16384A
Capacitance 1 pF 10 pF 100 pF 1000 pF
Nominal accuracy 0.10 %
Calibration stability ≤ 300 ppm/year
Dissipation factor ≤ 0.0001
