Up to 3 GHz (7 mm): SMD continued
EIA/EIAJ Size shorting bar set (furnished)
16197A-001 Shorting bar
Options:
16197A-001: Add 0603 (mm)/0201 (inch) Device guide set
The 16197A’s electrode spaces are 0.5 mm, 1 mm, 1.5 mm and 2 mm and the device
guide matches these spaces with appropriate insertion holes for the applicable SMD.
The 0.2 mm electrode spacing is available with option 001, which includes a device
guide with 0603 mm/0201inch insertion holes, an electrode plate and 4 shorting
devices.
Compensation and measurement: First of all, select the appropriate device insertion
hole. If the device insertion hole is not positioned in the pressure arm’s contact range,
reposition the device guide and the electrode plate. Once this is prepared, perform
compensation. Open and short compensations are recommended in combination with
the electrical length compensation before measurement. The fixture’s electrical length
must be entered into the electrical length compensation function of the measurement
Electrodes configuration and SMD size
Size P/N Qty.
1 x 0.5 x 0.5 (mm) 16191-29005 1
1.6 x 0.8 x 0.8 (mm) 16191-29006 1
2.0 x 1.2 x 0.8 (mm) 16191-29007 1
3.2 x 1.6 x 0.8 (mm) 16191-29008 1
Device Guide 16197-25007 1
Electrode Plate 16197-00604 1
Size P/N Qty.
0.6 x 0.3 x 0.3 (mm) 16197-29001 4
16197A Bottom electrode SMD test fixture continued
44 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
instrument first. Next, open compensation is performed by not placing anything in the
device insertion hole. Short compensation is performed by placing the furnished shorting
device in the device insertion hole. After performing open and short compensations in
combination with the electrical length compensation, the DUT is inserted into the device
insertion hole. Once the measurement of the DUT is complete, remove the DUT from the
fixture. The following figures show how compensation and measurement is performed.
Up to 3 GHz (7 mm): SMD continued
Compensation and measurement
16197A Bottom electrode SMD test fixture continued
45 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

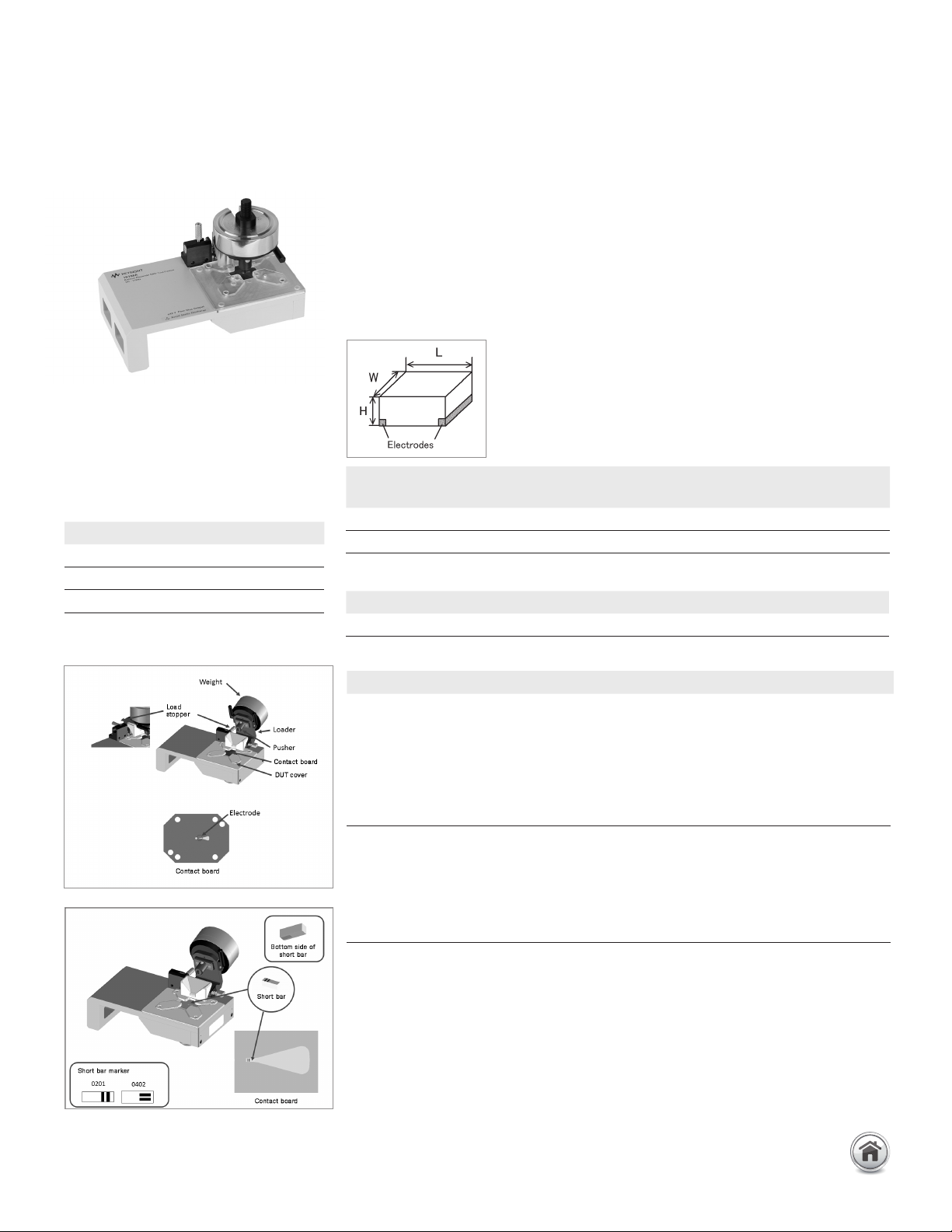

16198A Bottom electrode SMD
test fixture
Terminal connector: 7 mm
DUt connection: 2-Terminal
Dimensions (approx.):
145 (W) × 80 (D) × 110 (H) [mm]
Weight (approx.): 870 g (with weight of
300 g)
Additional error:
Description: This test fixture is designed for impedance evaluations of bottom electrode
SMDs. It achieves stable frequency characteristics up to 3 GHz and provides highly
repeatable measurements. This test fixture supports two SMD sizes, 0201 (mm)/
008004 (inch) and 0402 (mm)/01005 (inch).
Applicable instrument: E4982A, E4991B, E5061B-3L3/3L4/3L5 with Opt. 005 + 16201A
Frequency: DC to 3 GHz
Maximum voltage: ±40 V peak max. (AC +DC)
Operating temperature: –55 to +85°C
DUT size: See figure and table below:
Standard option
SMD size code
Applicable SMD size
L [mm] W [mm] H [mm]
0402 (mm)/01005 (inch) (0.38 to 0.42) ±0.02 (0.18 to 0.22) ±0.02 ≥ 0.11
0201 (mm)/008004 (inch) (0.2 to 0.25) ±0.013 (0.1 to 0.125) 0.013 ≥ 0.1
Furnished Accessory
Description P/N
Cleaning rod 5182-7586
f: frequency [GHz]
Up to 3 GHz (7 mm): SMD continued
Error factor Formula
Proportional error 1.2 x f
2
[%]
Open repeatability 5 + 40 x f [μS]
Short repeatability 60 + 125 x f [mΩ]
Optional accessories
Standard set P/N Qty.
Standard set, 0201 16198A-100
Contact board (Guide PCA 0201 70 micrometer) 1
Contact board (Guide PCA 0201 100 micrometer) 1
0201 Short bar 5-piece set 1
Weight 50 g 1
Weight 100 g 1
Weight 200 g 1
Standard set, 0402 16198A-200
Contact board (Guide PCA 0402 100 micrometer) 1
0402 Short bar 5-piece set 1
Weight 50 g 1
Weight 100 g 1
Weight 200 g 1
Note: A standard set of either 0201 or 0402 can be ordered, but not both.
If necessary, the parts can be ordered individually.
