Up to 120 MHz (4-Terminal Pair): Port/Cable Extension
16048A Test leads
Terminal connector: 4-Terminal Pair, BNC
Cable length (approx.):
0.94 m (from connector to cable tip)
Cable tip: BNC (male)
Weight (approx.): 315 g
Additional error: For detailed information,
refer to the measurement instrument's
specifications.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC female connector board to allow the attachment
of user-fabricated test fixtures.
Applicable instruments: E4980A/AL, E4981A
Frequency: DC to 30 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
Furnished accessories:
Compensation and measurement: Cable length compensation is recommended before
measurement. Set the instrument's cable length compensation function to 1 m.
16048D Test leads
Terminal connector: 4-Terminal Pair, BNC
Cable length (approx.):
1.89 m (from connector to cable tip)
Cable tip: BNC (male)
Weight (approx.): 460 g
Additional error: For detailed information,
refer to the measurement instrument’s
specifications.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC female connector board to allow the attach-
ment of user-fabricated test fixtures.
Applicable instruments: E4980A/AL, E4981A
Frequency: DC to 30 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
Furnished accessories:
Compensation and measurement: Cable length compensation is recommended before
measurement. Set the instrument’s cable length compensation function to 2 m.
Description P/N Qty.
Terminal board with BNC(f)x4 16032-60071 1
Operating manual 16089-90001 1
Description P/N Qty.
Terminal board with BNC(f)x4 16032-60071 1
Operating manual 16048-90031 1
17 | Keysight | Accessories Catalog for Impedance Measurements - Catalog
Up to 120 MHz (4-Terminal Pair): Port/Cable Extension continued
16048E Test leads
Terminal connector: 4-Terminal Pair, BNC
Cable length (approx.): 3.8 m (from
connector to cable tip)
Cable tip: BNC (male)
Weight (approx.): 690 g
Additional Error: For detailed information,
refer to the measurement instrument’s
specifications.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC female connector board to allow the attachment
of user-fabricated test fixtures.
Applicable instruments: E4980A /AL
Frequency: DC to 2 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: 0 to 55°C
Furnished accessories:
Compensation and measurement: Cable length compensation is recommended before
measurement. Set the instrument’s cable length compensation function to 4 m.
Description P/N Qty.
Terminal board with BNC(f)x4 16032-60071 1
Operating manual 16048-90041 1
18 | Keysight | Accessories Catalog for Impedance Measurements - Catalog

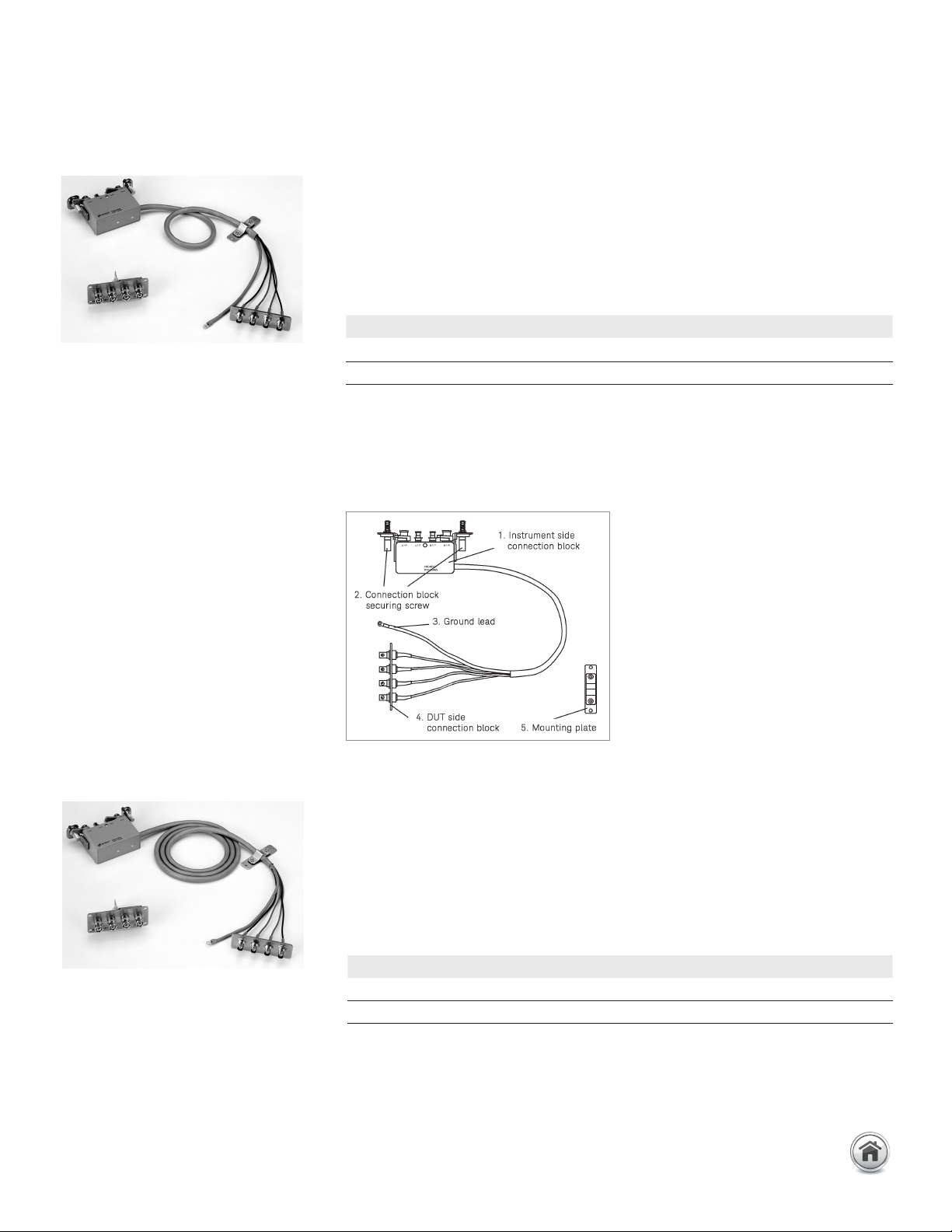

Up to 120 MHz (4-Terminal Pair): Port/Cable Extension continued
16048G Test leads
Terminal connector: 4-Terminal pair, BNC
Cable length (approx.): 1 m
Cable tip: BNC (female)
Weight (approx.): 460 g
Additional error: For detailed information,
refer to the operation manual or the
specifications of E4990A.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC male connector board to allow the attachment
of user-fabricated test fixtures.
Applicable instrument: E4990A
Frequency: DC to 120 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: –20 to 150°C
Furnished accessories:
Options:
16048G-001: Add BNC Bracket* (P/N 16048-60003)
* Here the BNC Bracket refers to the terminal board with four BNC (m)connectors.
Compensation and measurement: Adapter setup is recommended before measurement.
In the adapter setup menu, select 4TP 1M. Then use the 100 Ω resistor furnished with
the E4990A to perform phase compensation and load data measurement.
16048H Test leads
Terminal connector: 4-Terminal pair, BNC
Cable length (approx.): 2 m
Cable tip: BNC (female)
Weight (approx.): 690 g
Additional error: For detailed information,
refer to the operation manual or the
specifications of E4990A.
Description: The test leads extend the measurement port with a 4-Terminal Pair
configuration. It is provided with a BNC male connector board to allow the attachment
of user-fabricated test fixtures.
Applicable instrument: E4990A
Frequency: DC to 120 MHz
Maximum voltage: ±42 V peak max. (AC+DC)
Operating temperature: –20 to 150°C
Furnished accessories:
Options:
16048H-001: Add BNC Bracket* (P/N 16048-60003)
* Here the BNC Bracket refers to the terminal board with four BNC (m) connectors.
Compensation and measurement: Adapter setup is recommended before measurement.
In the adapter setup menu, select 4TP 2M. Then use the 100 Ω resistor furnished with
the E4990A to perform phase compensation and load data measurement.
Test fixture overview
Description P/N Qty.
Mounting plate NA 1
Operating and service manual 16048-90050 1
Description P/N Qty.
Mounting plate NA 1
Operating and service manual 16048-90050 1
