Operating the Feeder Module - Overview of the Menus

www.asm-smt.com

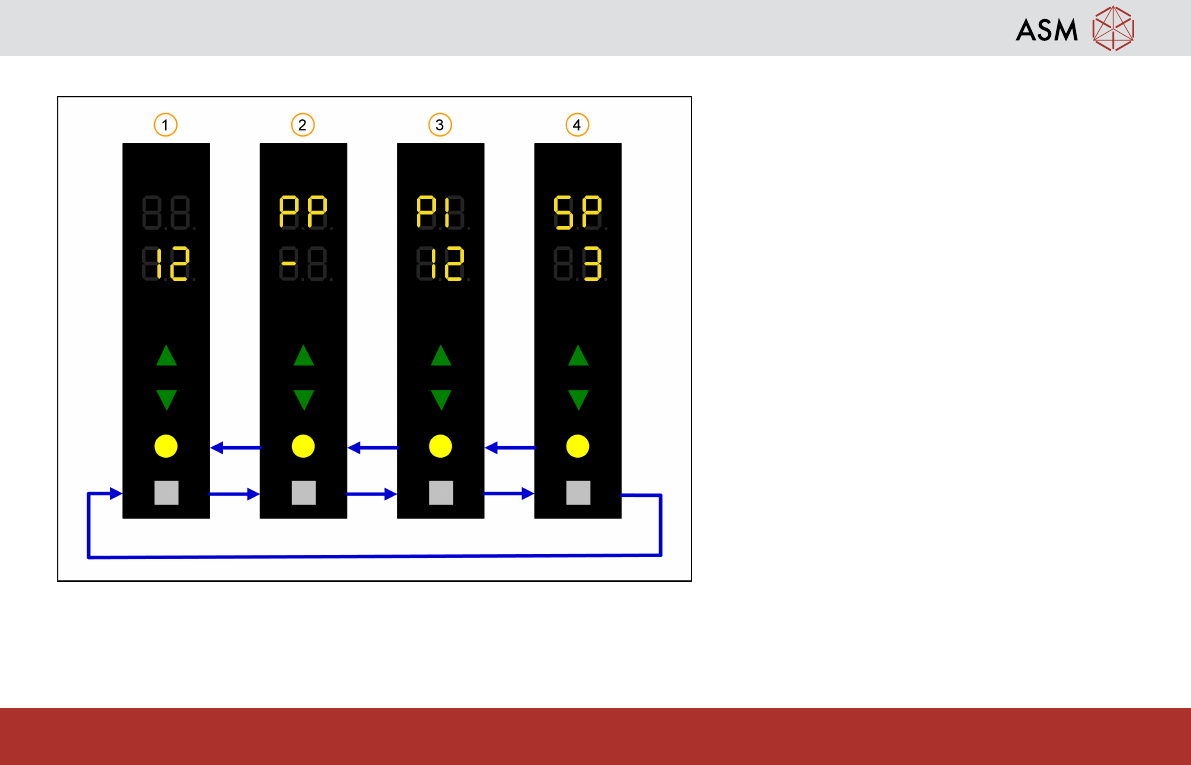

1.5 Overview of the Menus

1. Main Menu

2. Pickup position menu (PICK POSITION)

3. Pitch menu (PITCH)

4. Transport speed menu (SPEED)

With the gray SET button you switch to the

next menu, with the yellow FOIL button to the

previous menu.

Operating the Feeder Module - Feeder Setup and Log On

www.asm-smt.com

1.6 Feeder Setup and Log On

1. Place the feeder module on the

changeover table.



Attention:

When placing the feeder module, make

sure that the slider guide of the feeder

module fits properly in the Omega profile

of the track on the changeover table.

If the feeder module is not placed prop-

erly, the pickup window can be damaged

during insertion.

2. Carefully push the feeder module into the

changeover table, as far as the stop.

3. If the removal handle is still out, push it

into the feeder module.

4. The feeder is now logged on.

Operating the Feeder Module - Feeder Log Off and Removal

www.asm-smt.com

1.7 Feeder Log Off and Removal

1. Press the back of the removal handle.

This handle will protrude and trigger the

log off procedure.

Once the status displays have gone off,

remove the feeder module from the

changeover table.

2. Use the removal handle to pull the feeder

module a little bit out of the component

table.

3. Use the handle to pull the feeder module

completely out of the component table.
