Operating the Feeder Module - Emptying the Foil Container
19
www.asm-smt.com
1.15 Emptying the Foil Container
Empty the foil disposal container regularly.

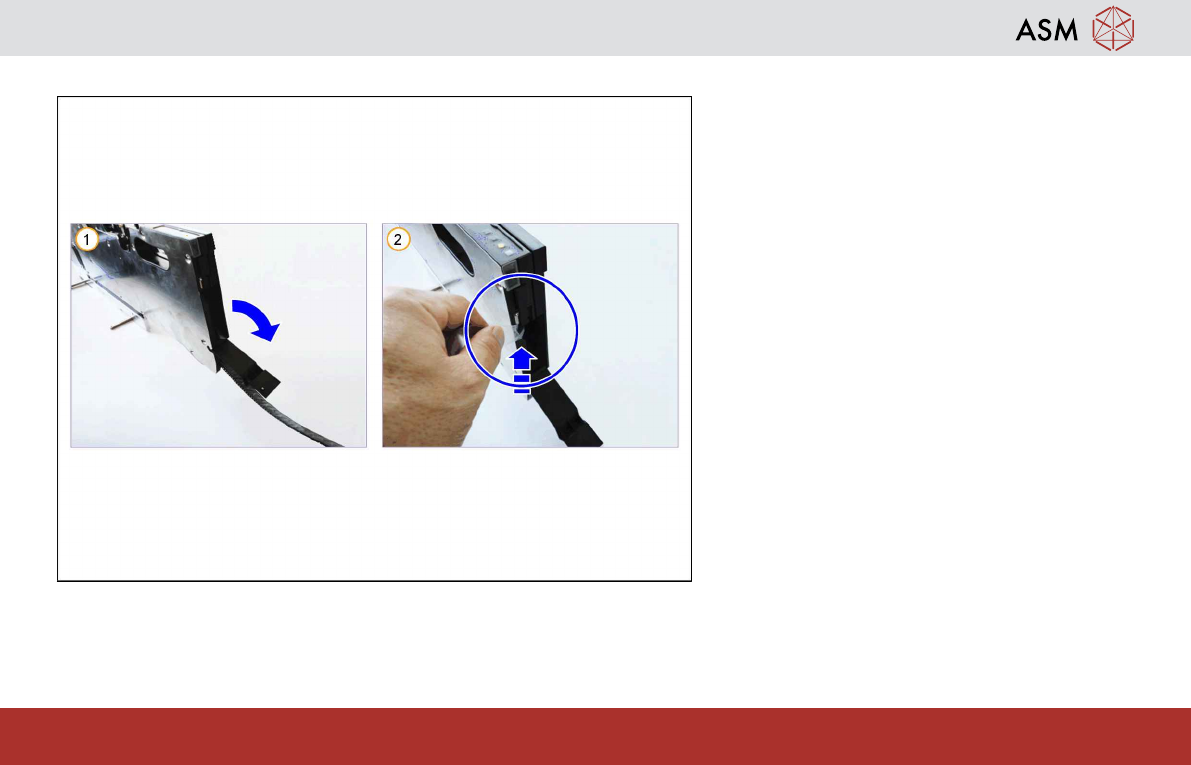

1. Open the foil flap.
2. Remove the foil in the foil container and
cut it by means of the built-in blade.
Then close the foil flap again.
Operating the Feeder Module - Removing the Tape (Teardown)
20
www.asm-smt.com
1.16 Removing the Tape (Teardown)
The following section describes how to tear
down a feeder module, if you want to still keep
it in the machine without the tape.
1. Press and hold the BACKWARDS button.
"FE" (Feeder) is displayed in the upper
part of the display and "do" for down in
the lower part. Now you can release the
BACKWARDS button.
2. Press the rocker within the next 5
seconds to unlock the foil removal device
and relax the foil rocker.
3. Cut the foil and remove the tape.
Attention:
After performing removal, make sure that there
are no tape or foil residues in the feeder mod-
ule pickup area, as the placement head could
get caught in these.
Operating the Feeder Module - Removing the Tape (Teardown if Foil Torn)
21
www.asm-smt.com
1.17 Removing the Tape (Teardown if Foil Torn)
The following section describes how to tear
down a feeder module, if you want to still keep
it in the machine without the tape and a "foil
torn" error has been issued.
A "foil torn" error is indicated by a red status
display and the error text "Er" in the upper part
and "Fo" in the lower part of the display.
1. Press and hold the BACKWARDS button.
After approx. 1 second, the error will be
reset and the status display lights up
green.
2. Release the BACKWARDS button.
Attention:
After performing removal, make sure that there
are no tape or foil residues in the feeder mod-
ule pickup area, as the placement head could
get caught in these.
