Splicing - Checking the Splicing Point 36 www.asm-smt.com
Splicing - Checking the Splicing Point
35
www.asm-smt.com
2.7 Checking the Splicing Point
Identifying correct splicing.

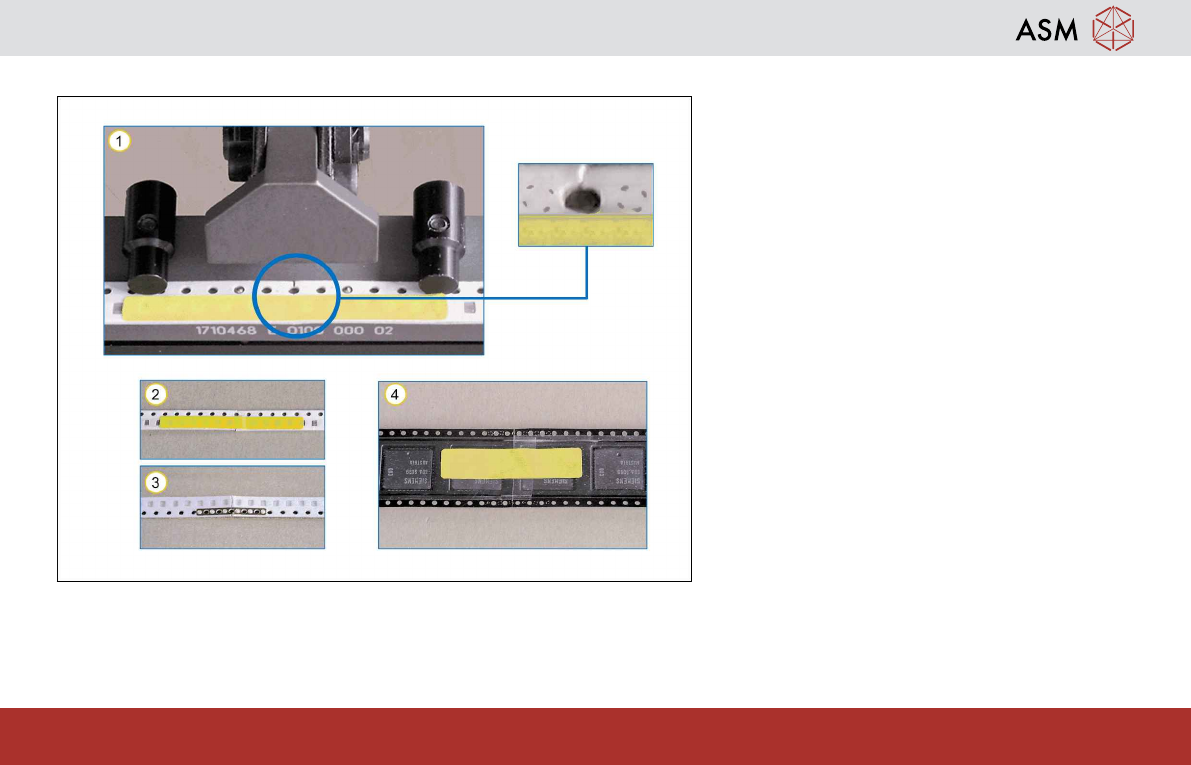

1. If the tape is spliced correctly, the prongs
of the rivet will be visible.
2. Top of a tape (8 mm)
3. Bottom of a tape (8 mm)
4. Top of a tape (24 mm)
