Operating the Feeder Module - Front side
6
www.asm-smt.com

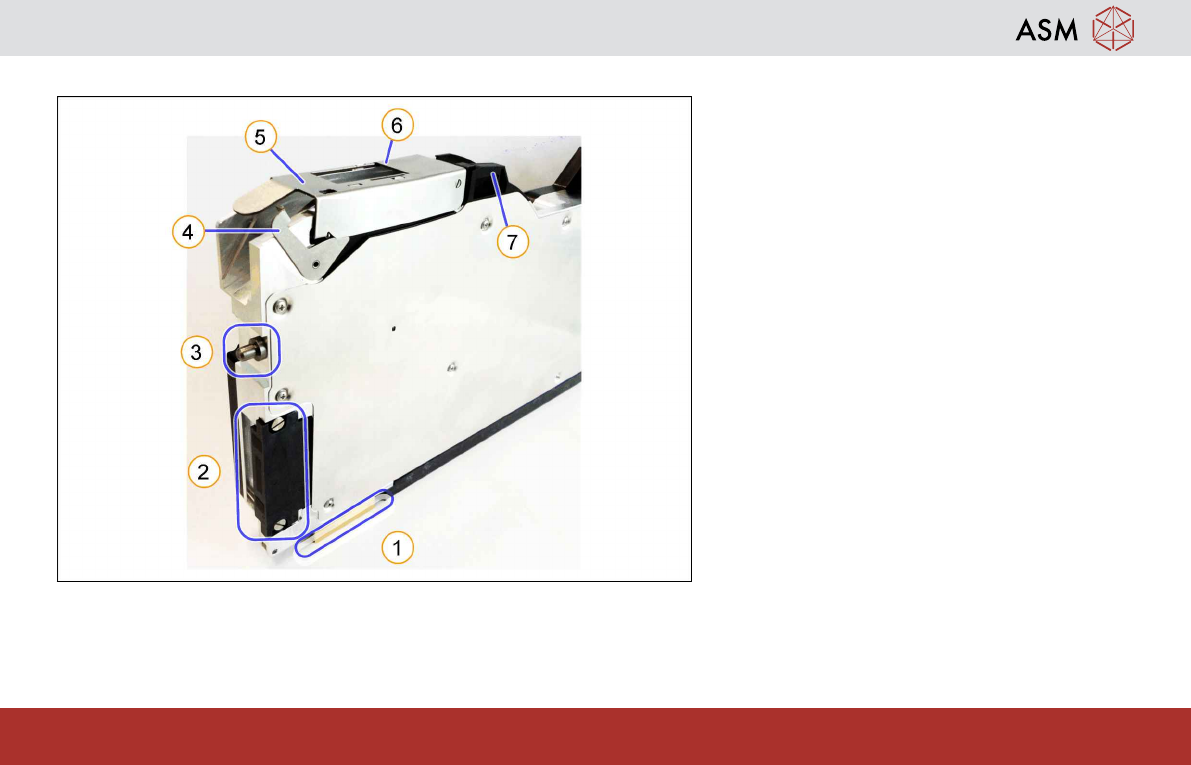

1.2 Front side
1. Sliding guide
2. Energy and data interface (EDIF)
3. Centering pin at front
4. Pickup window actuator
5. Pickup window
6. Removal edge
7. Splice sensor (or dummy)
Operating the Feeder Module - Rear side
7
www.asm-smt.com

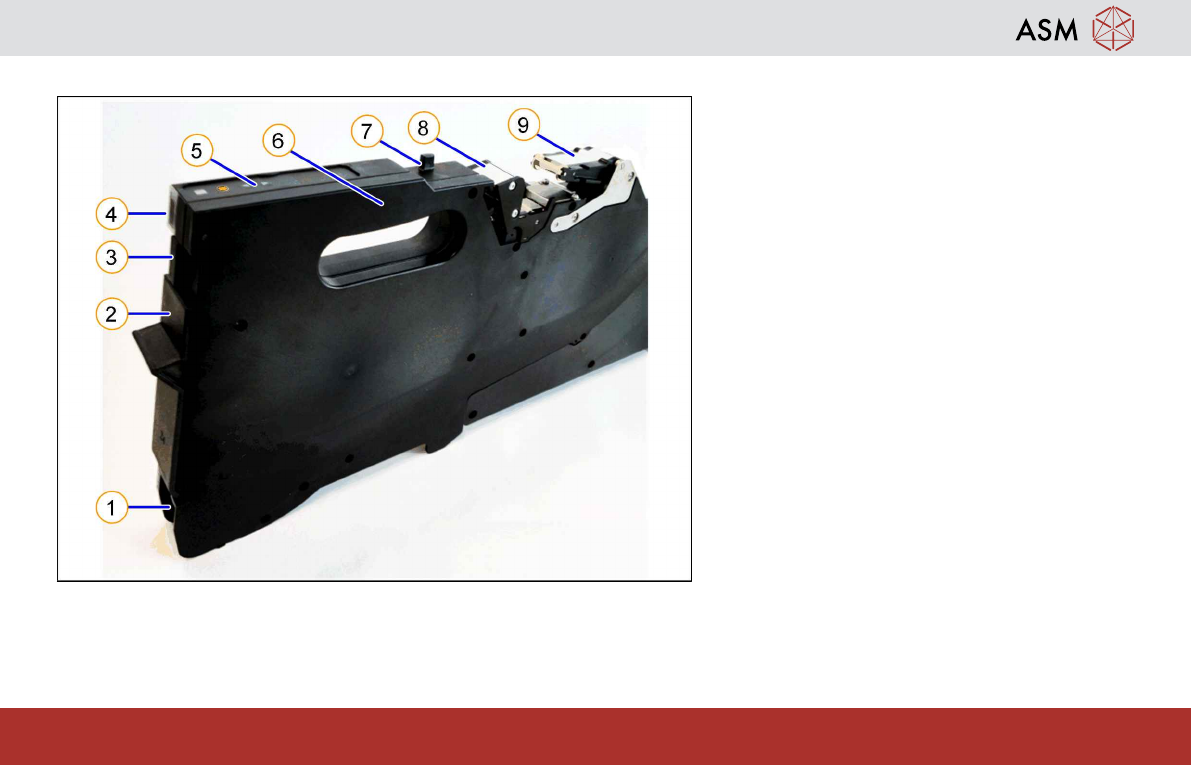

1.3 Rear side
1. Tape duct with spring
2. Foil disposal flap
3. Removal handle
4. Status display
5. Operator panel
6. Handle
7. Rear centering pin
8. Foil removal rocker
9. Foil rocker
Operating the Feeder Module - Operator panel
8
www.asm-smt.com

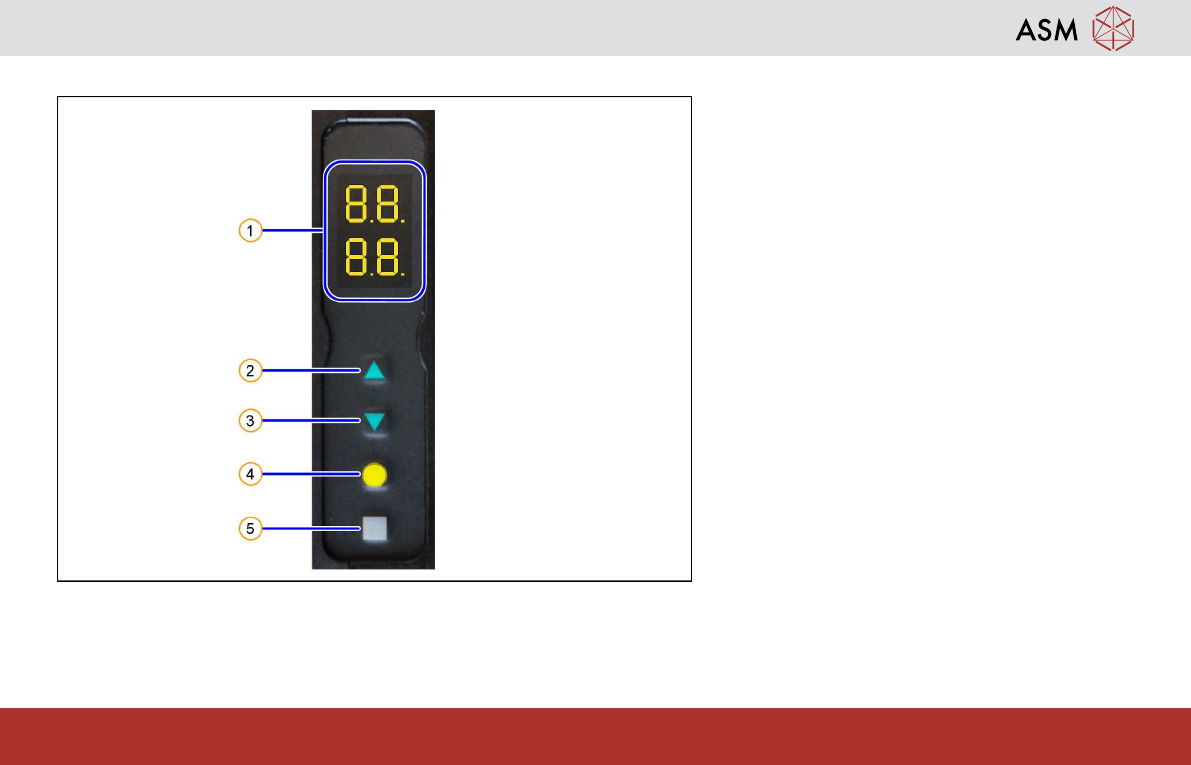

1.4 Operator panel
1. Display (7-segment display)
2 characters above, 2 characters below
2. FORWARDS button
3. BACKWARDS button
4. FOIL button
5. SET button
