Splicing - Required Tools and Materials
25
www.asm-smt.com
2 Splicing2.1 Required Tools and Materials

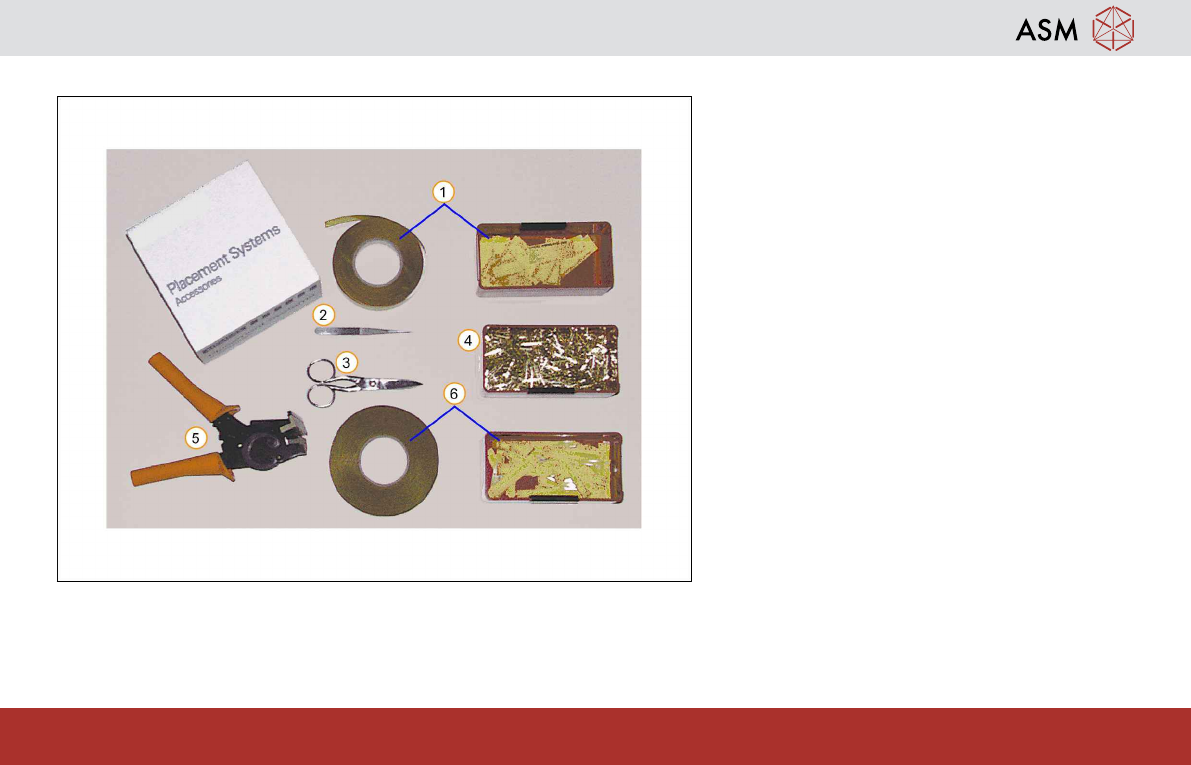

These tools and materials are required for tape
splicing:
1. Adhesive tape (small)
2. Tweezers
3. Scissors
4. Splicing rivets
5. Splicing tool
6. Adhesive tape (large)
Splicing - Required Tools and Materials
26
www.asm-smt.com

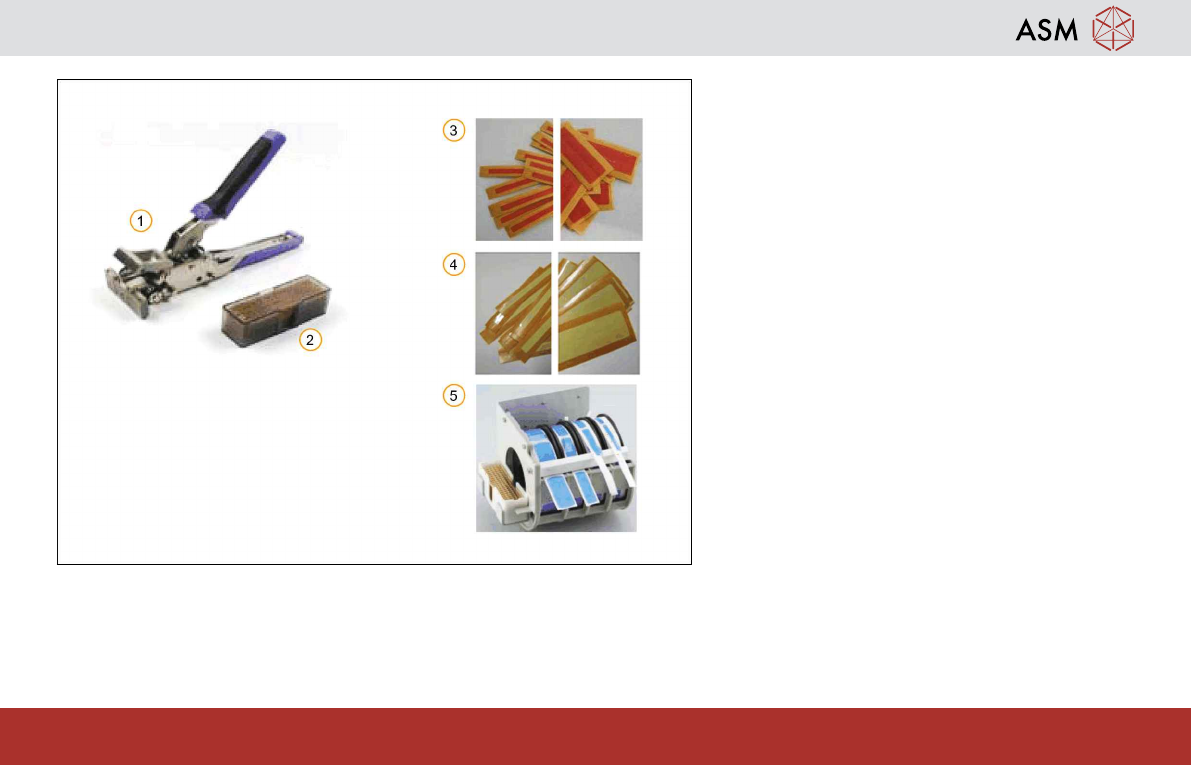

Alternatively, you could also use the multi-
frame tape splice gripper shown in the dia-
gram.
1. Multi-frame tape splice gripper
2. Splicing rivet strips
3. Adhesive tape strips, red
4. Adhesive tape strips, yellow
5. Adhesive tape strips
