Operating the Feeder Module - Setting the Pitch

www.asm-smt.com

1.12 Setting the Pitch

1. Press the gray SET button (1) repeatedly

until the characters "PI" (PITCH) are dis-

played.

The adjusted pitch is displayed in the

lower part of the display.

2. Press the FORWARDS button (2) to in-

crease the pitch.

3. Press the BACKWARDS button (3) to re-

duce the pitch.

4. Press the gray SET button (1) briefly to

save the setting and switch over to the

next menu.

5. Press the yellow FOIL button(4) to save

the setting and switch back to the previ-

ous menu.

Possible pitches (in 4 mm steps):

24 mm X: 4mm … 32mm

32 mm X: 4mm … 40mm

44 mm X: 4mm … 52mm

56 mm X: 4mm … 64mm

72 mm X: 4mm … 80mm

88 mm X: 4mm … 96mm

104 mm X: 4mm … 96mm

Operating the Feeder Module - Setting the Transport Speed

www.asm-smt.com

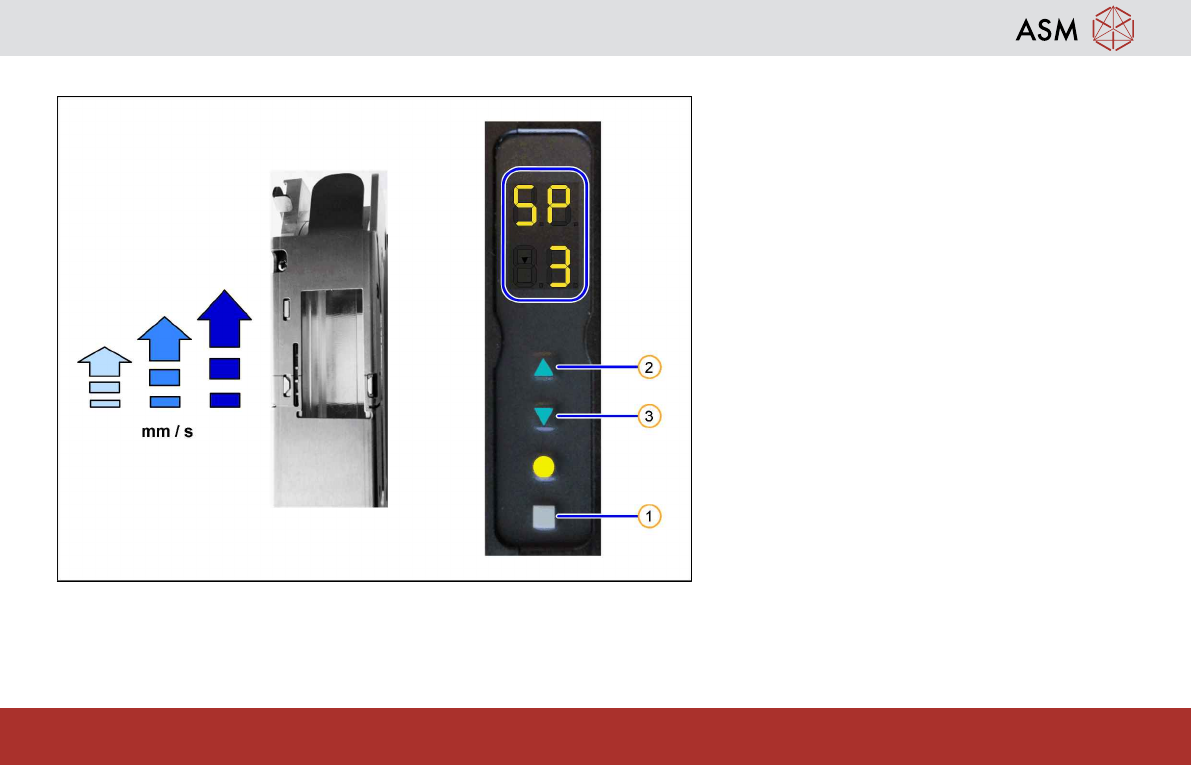

1.13 Setting the Transport Speed

The transport speeds "slow"(1), "middle"(2)

and "fast" (3, default) are available for the

SmartFeeder.

Proceed as follows to display or edit the cur-

rent setting:

1. Press the gray SET button (1) repeatedly

until the characters "SP" (SPEED) are

displayed.

2. Press the FORWARDS button(2) to in-

crease the transport speed. Press the

BACKWARDS button (3) to reduce the

transport speed.

The adjusted speed is displayed in the

lower part of the display.

3. Press the gray SET button (1) briefly to

save the setting and switch over to the

next menu.

4. Press the yellow FOIL button(4) to save

the setting and switch back to the previ-

ous menu.

Operating the Feeder Module - Triggering a Scan Request

www.asm-smt.com

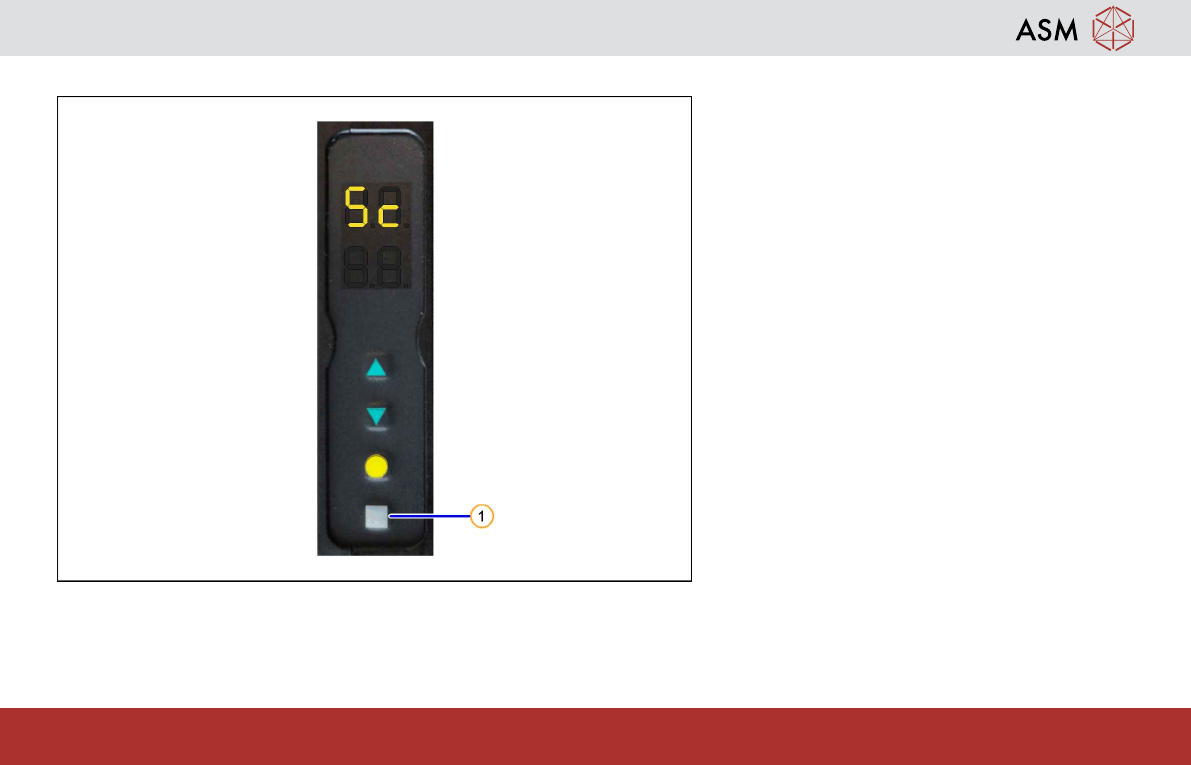

1.14 Triggering a Scan Request

1. Press and hold the gray SET button for at

least 2 seconds.

After this period, the message will be sent to

the station. When the station receives the mes-

sage and has started the scan process, the

status display for the feeder module will flash

green.
