Splicing - Splicing a Wide Tape
31
www.asm-smt.com

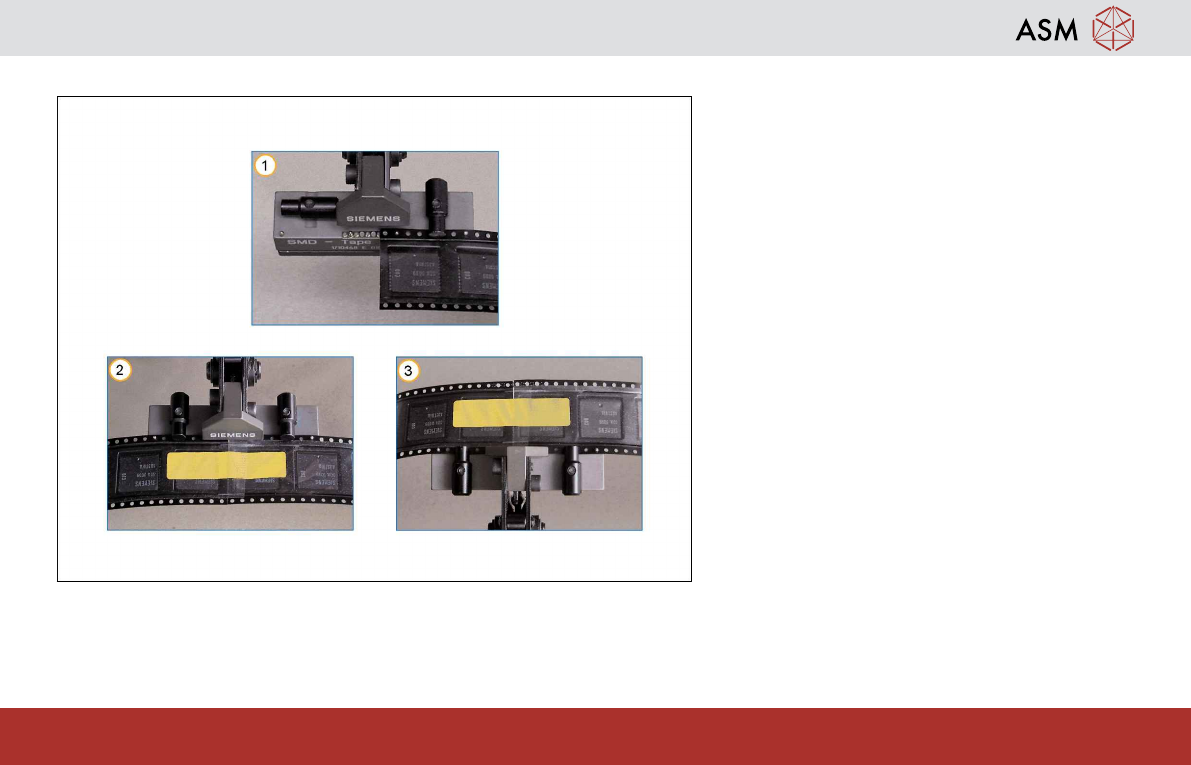

2.5 Splicing a Wide Tape
1. Place the end of the tape over half of the
rivet and then close the right-hand locking
of the splicing tool, as shown in the dia-
gram.
2. First splice one side of the tape, as de-
scribed for the narrow tape. Use a wide
adhesive strip!
3. Place a new rivet into the splicing tool,
turn the tape over and splice the perfora-
tion onto the other side.
Splicing - Splicing with the Multi-frame Tape Splice Gripper
32
www.asm-smt.com

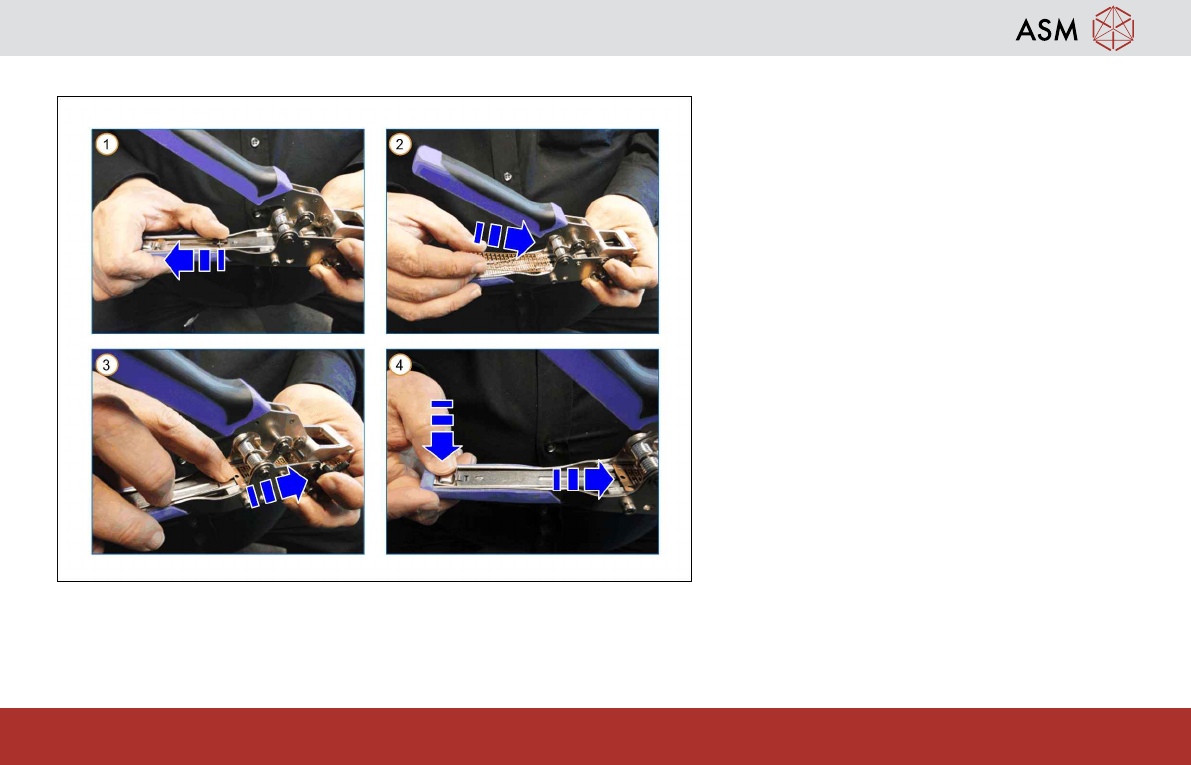

2.6 Splicing with the Multi-frame Tape Splice Gripper
You first need to "load" the multi-frame tape
splice gripper with a strip of splicing rivets.
1. Open the multi-frame tape splice gripper
press the slide back, as far as the stop-
per.
2. Place a strip of splicing rivets into the
multi-frame tape splice gripper, as shown
in the diagram.
3. Slide the strip of splicing rivets forwards,
as far as the stopper.
4. Press on the catch to release the slide, as
shown in the diagram.
The multi-frame tape splice gripper is now
ready for use.
Splicing - Splicing with the Multi-frame Tape Splice Gripper
33
www.asm-smt.com

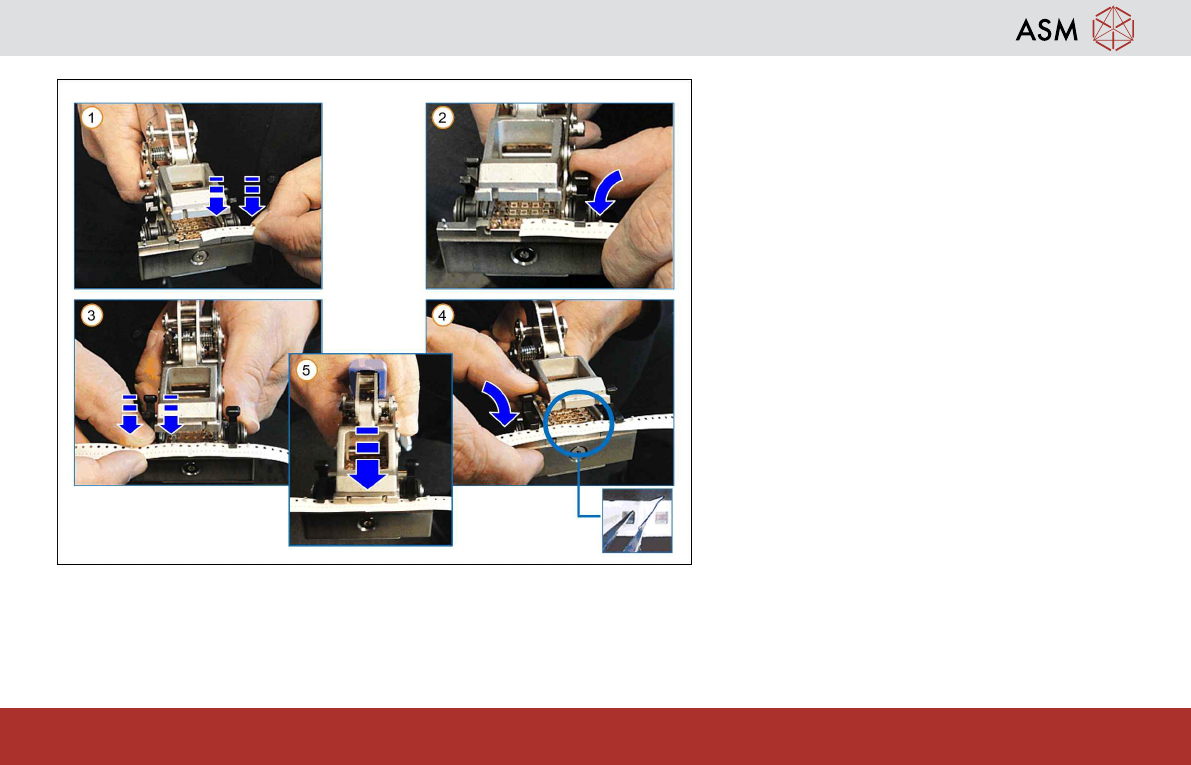

To prepare the ends of the tape, proceed as
described further above.
1. Place the end of the old tape over half of
the rivet.
2. Close the right-hand locking of the multi-
frame tape splice gripper, as shown in the
diagram.
3. Place the start of the new tape over the
other half of the rivet.
4. Close the other locking of the splicing
tool. The foil must protrude over the end
of the old tape, at the top.
5. Press the multi-frame tape splice gripper
firmly together, to close the splicing rivet.
