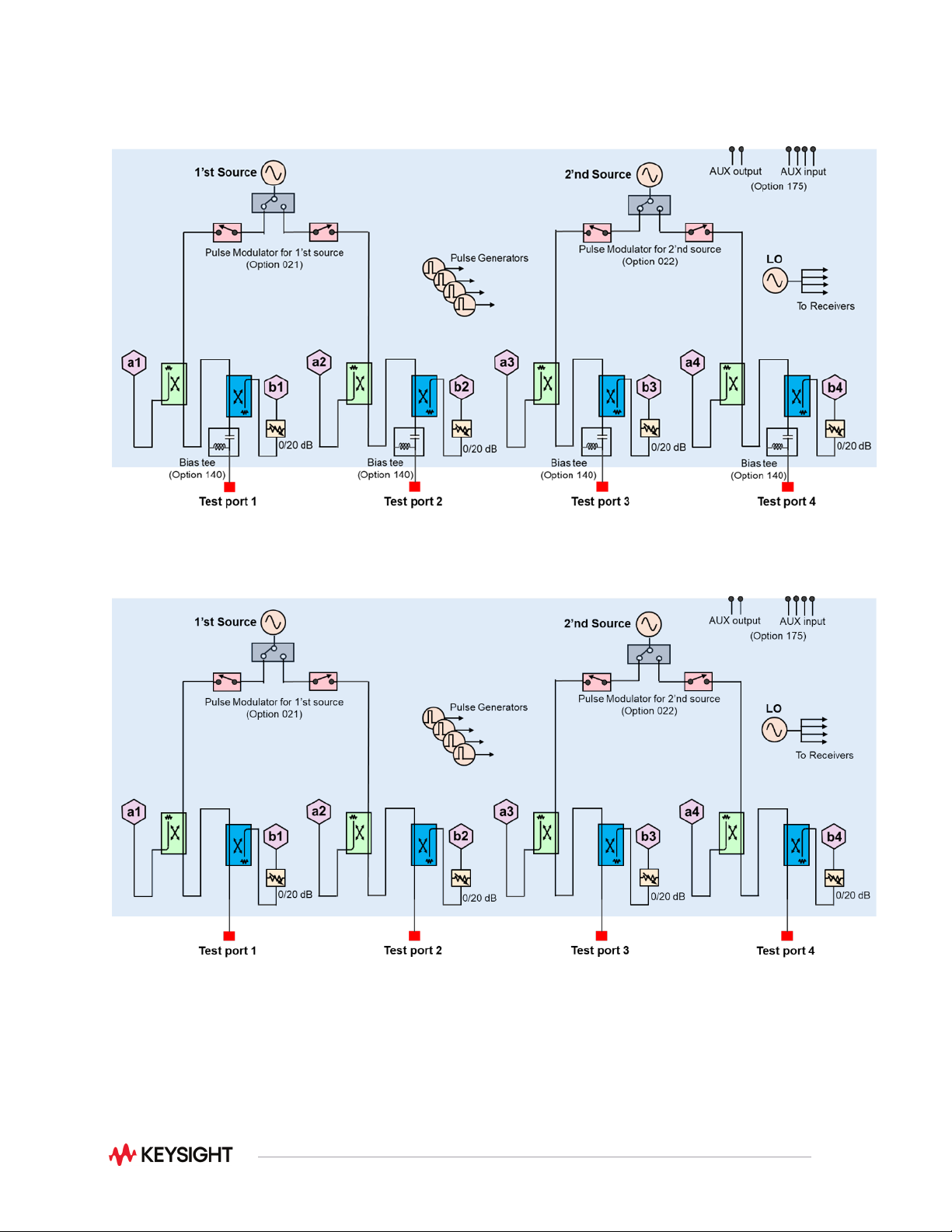

Block Diagrams
E5080B Option 240/260/290/2D0/2K0 (2-port base options)
E5080B Option 2L0/2M0/2N0/2P0 (2-port base options)
13
E5080B Option 440/460/490/4D0/4K0 (4-port base options)
E5080B Option 4L0/4M0/4N0/4P0 (4-port base options)
14
E5080B Option 442/462/492/4D2/4K2 (4-port second source option)
E5080B Option 4L2/4M2/4N2/4P2 (4-port second source options)
