17 E508 1A Option 2K6/2 N6/2N7 (2-port , 20 or 44 G Hz with upconverter ) E508 1A Option 4 K6 /4 N6 / 4 N7 (4-port , 20 or 44 G Hz with upconverter )

100%1 / 69
16
E5081A Option 2N5 (2-port, 44 GHz base)
E5081A Option 4N5 (4-port, 44 GHz base)
17

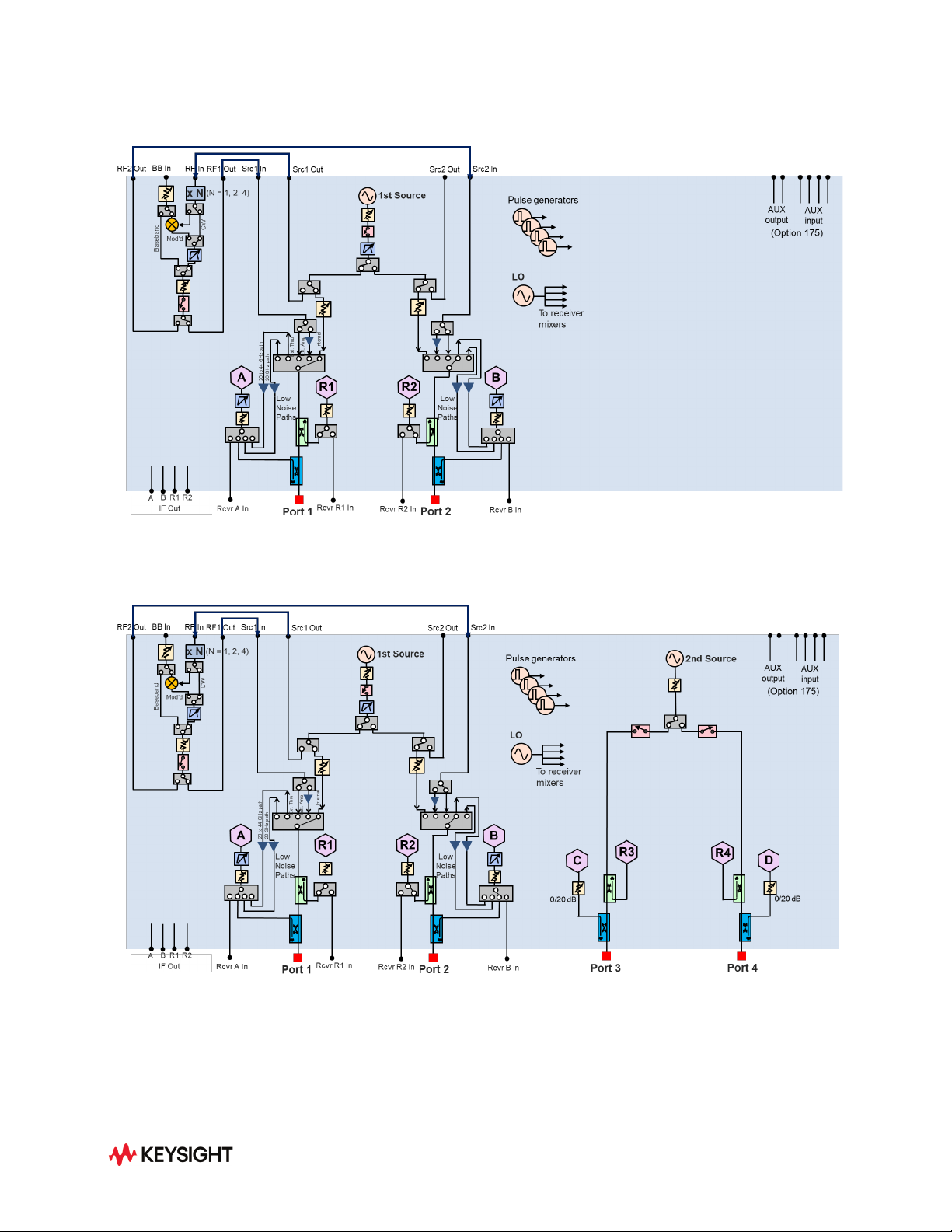

E5081A Option 2K6/2N6/2N7 (2-port, 20 or 44 GHz with upconverter)
E5081A Option 4K6/4N6/4N7 (4-port, 20 or 44 GHz with upconverter)
18
Measurement Application Software
Description
1
For E5080B ENA
For E5081A ENA-X
Additional Information
Automatic fixture removal
S96007B
S96007B
Time domain analysis
S96010B
S96010B
Probe and fixture leakage
calibration
S96008B
S96008B
Enhanced time domain
analysis with TDR
S96011B
S96011B
Includes all capabilities of
S96010B.
Real-time S-parameter and
power measurement
uncertainty
S96015B
S96015B
Displays the measurement
uncertainty dynamically (real-time)
on the measurement trace.
Basic pulsed-RF
measurements lite for
E5080B
S96024B
N/A
Requires E5080B option 021/022.
Subset of S96025B.
Basic pulsed-RF
measurements for E5080B
S96025B
N/A
Requires E5080B option 021/022.
Basic pulsed-RF
measurements lite for
E5081A up to 20 GHz
N/A
S960240B
Subset of S960250B.
Basic pulsed-RF
measurements lite for
E5081A up to 44 GHz
N/A
S960241B
Subset of S960251B.
Basic pulsed-RF
measurements for E5081A
up to 20 GHz
N/A
S960250B
Basic pulsed-RF
measurements for E5081A
up to 44 GHz
N/A
S960251B
Add mechanical noise
tuner control for noise
figure/parameter
measurements
N/A
S96027B
Provides ability to control Maury
Microwave's LXI or Focus
Microwaves’ CCMT impedance
tuners.
Requires E5081A option
0K1/0K2/0N1/0N2 and application
software S96029B.
Noise figure measurements
with vector correction
2
S96029B
S96029B
Standard receivers are used on
E5080B. Option 0K1/0K2/0N1/0N2
are required to enable high gain
setting on E5081A.
IQ data bandwidth up to
1.5 GHz
N/A
S96050B
Requires either S960704/707B or
S960904/907B for E5081A.
E5080B is not supported.
IQ data bandwidth up to 4
GHz
N/A
S96051B
Requires either S960704/707B or
S960904/907B for E5081A.
E5080B is not supported.
Impedance analysis
S96041B
N/A
Provides impedance analysis of
small-sized Surface Mount Devices
(SMD) up to 10 GHz. Requires
16198A option 010 test fixture
3
and
85052DH02 mechanical cal kit.
