Accessories, Calibration Options

Option Number

Description

Additional Information

E5092A-1CM

Rack mount kit only

Adds a rack mount kit for use without handles.

E5092A-1CN

Front handle kit only

Adds a front handle kit.

E5092A-1CP

Rack mount kit with handle kit

Adds a rack mount and front handle kit.

E5092A-1A7

ISO 17025 compliant calibration

E5092A-A6J

ANSI Z540 compliant calibration

Measurement Accessories

A complete list of RF and microwave test accessories is available on our Web site:

www.keysight.com/find/mta

Accessories are available in these connector types: 50 Ω Type-N, 3.5 mm, 7 mm, 2.4 mm, 2.92 mm,

1.85 mm, 1.0 mm, and waveguide. Test port cables and a calibration kit should be added for a complete

measurement system. A verification kit is used to verify corrected system performance.

Cable and Adapter Sets

Keysight offers cables in the following types:

•

Single cables in semi-rigid and flexible

•

Cable sets in semi-rigid and flexible

There are also adapter sets available that protect the test port and convert the port to the desired

connector interface. These kits contain:

•

One male adapter

•

One female adapter

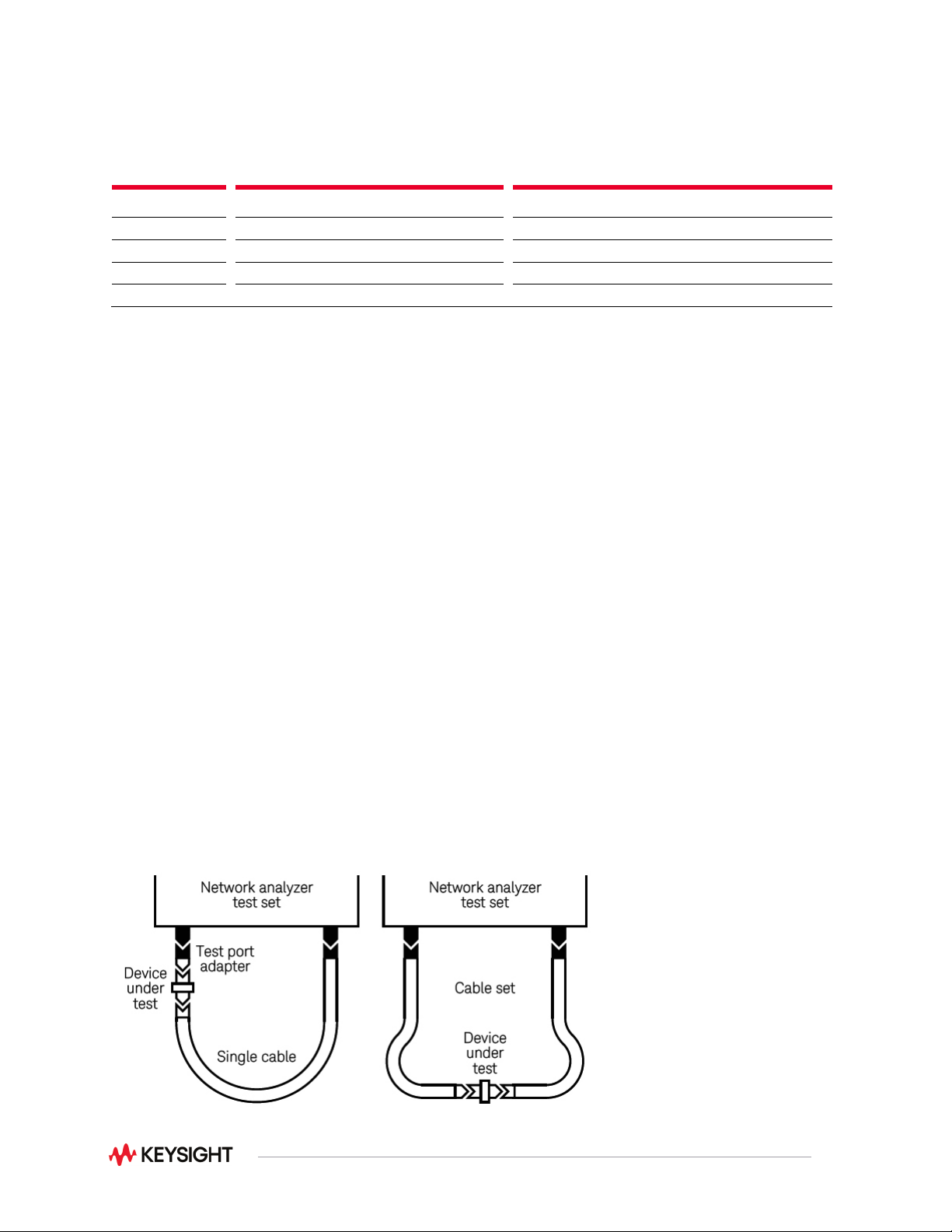

To attain the best mechanical rigidity for device connection, use a single cable and the appropriate

special adapter set. To attain the greatest flexibility for device connection, use a cable set.

Cable and Adapter Sets

Coaxial measurements

Mechanical calibration kits include standards, such as opens, shorts and loads, which are measured by

the network analyzer for increased measurement accuracy.

Choose a calibration kit for each connector type to be used.

Economy, includes:

•

Open standards (male and female)

•

Short standards (male and female)

•

Fixed-termination standards (male and female)

Standard, includes the devices in the economy kit and adds:

•

Sliding load standards (male and female) or a series of offset shorts

Precision, includes the devices in the economy kit and adds:

•

50 Ω airline(s) for TRL calibration

•

TRL adapters

Electronic Calibration (ECal) kits replace mechanical calibration standards with one solid-state calibration

module that is controlled by the network analyzer via USB, to present many different impedances to the

test ports. A full two-port calibration can be performed quickly with a single connection. This technique

reduces operator errors and connector wear and abrasion.

For more information about ECal modules, refer to the technical overview 5963-3743E (N4690, 85090,

N4430, N7550, and N7560 Series).

Waveguide measurements

For waveguide measurements, Keysight offers mechanical calibration kits that include:

•

Waveguide-to-coax adapters (X, P, K, R, Q, U, V)

•

Precision waveguide section

•

Flush short circuit

•

Fixed terminations

•

Straight section

For Devices with 1.85 mm Connectors

Mechanical calibration kits

85058B standard: DC to 67 GHz. Includes:

•

85058-60101 1.85 mm (m) short 5.4 mm

•

85058-60102 1.85 mm (m) short 6.3 mm

•

85058-60103 1.85 mm (m) short 7.12 mm

•

85058-60104 1.85 mm (m) short 7.6 mm

•

85058-60105 1.85 mm (f) short 5.4 mm

•

85058-60106 1.85 mm (f) short 6.3 mm

•

85058-60107 1.85 mm (f) short 7.12 mm

•

85058-60108 1.85 mm (f) short 7.6 mm

•

85058-60109 1.85 mm male open

•

85058-60110 1.85 mm female open

•

85058-60111 1.85 mm male load

•

85058-60112 1.85 mm female load

•

85058-60113 1.85 mm (m) to 1.85 mm (m) adapter

•

85058-60114 1.85 mm (f) to 1.85 mm (f) adapter

•

85058-60115 1.85 mm (m) to 1.85 mm (f) adapter

85058E economy: DC to 67 GHz. Includes:

•
