Vector Network Analyzer (VNA) Simulator (S9405xB)
VNA simulator runs on your PC and simulates operations of Keysight’s latest VNAs (PNA/ENA/PXI or
Streamline Series VNA), eliminating the need for a VNA for your test program development. The
simulator has standard and advanced versions. The standard version (S94050B) supports operations of
standard S-parameter measurement class. The advanced version (S94051B) gives access to all
advanced capabilities with S96xxxB software (e.g., spectrum analysis) for the ENA and ENA-X except
S96007B or S96552B software.
S9405xB is available on subscription licenses only.
Device Measurement eXpert (DMX) (S94601B)
S94601B assists the users in setting up measurements automatically with customizable templates to use
consistent measurement settings in different stages of design and test workflow. It supports various types
of DUTs, and once the right DUT is selected, appropriate measurement parameters are listed, and the
users can select the parameters of interest.
It provides intelligent algorithms that optimizes measurement setups based on instrument and DUT
performance limitations and protects both the DUT and the instrument.
Limit Assistant (S94602B)
S94602B allows the users to acquire the data from a VNA or data file in csv, s2p or prn format and easily
generate limit masks for complex limit test conditions with an intuitive and convenient graphical interface
for production test applications.
Automated Measurement Expert (AMX)
This software package is a smart software solution for automated multiport S-parameter measurements
with the 4-port E5080B or E5081A and E5092A. The S94701A AMX test plan builder provides an
interactive GUI which helps you edit your multiport DUT test plans and generate test sequence files for
the network analyzers. The S94702A and KS8400A software running on the analyzer executes the test
sequences according to the optimized test sequence files generated by the S94701A.
35
A 4-port ECal module (i.e. N4431D or N4433D) is recommended for calibration wizard.

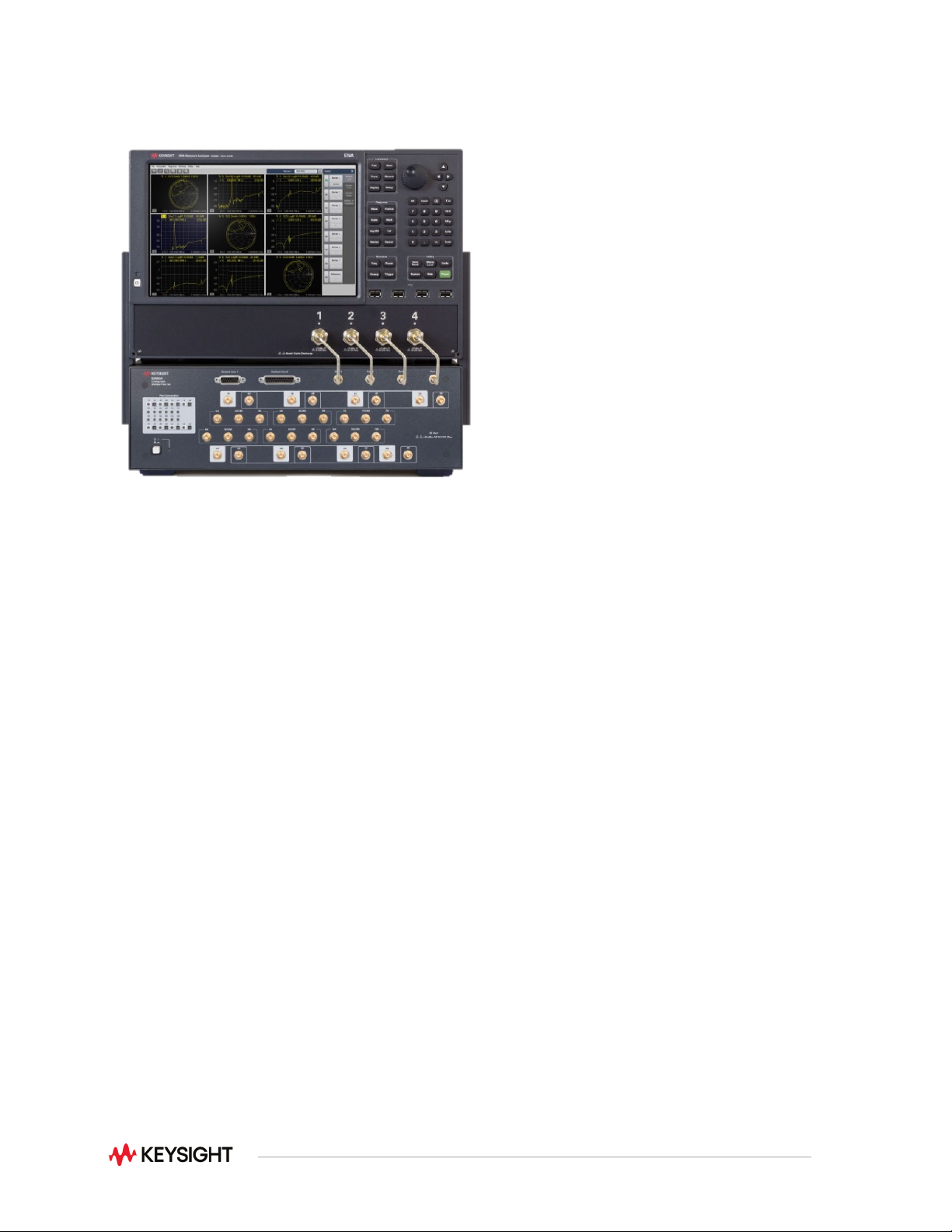

Figure 1. Multiport measurement setup using the E5080B ENA and E5092A Configurable Multiport Test Set
Restricted Feature Enable Licenses (S9480xb)
S9480xB licenses lift the restrictions of export-controlled features of the base firmware or other software
applications.
S94800B-KL0 (Available as an option of the S9480XBU SW upgrade)
This license allows the users to use a feature, hybrid source, above 90 GHz. It is export controlled.
S94801B-KL1 (Available as an option of the S9480XBU SW upgrade)
This license allows the users to use a feature, hybrid source, under any of these restricted conditions.
(The modulation bandwidths are limited without this license.)
•
Modulation bandwidth > 2.2 GHz between 4.8 GHz and 31.8 GHz
•
Modulation bandwidth > 550 MHz between 31.8 GHz and 37 GHz
•
Modulation bandwidth > 2.2 GHz between 37 GHz and 75 GHz
•
Modulation bandwidth > 5 GHz between 75 GHz and 90 GHz
S9480XBU Restricted Feature Enable License Upgrade This license allows you to add the S94800B-KL0
or the S94801B-KL1 on your E5080B or E5081A.
36
DisplayPort DP Cable Compliance Test Software
(S94DPPCB)
This application software provides a fast and automated way to characterize and debug DisplayPort and
DP Alt Mode on USB Type-C cable assemblies on UHBR, HBR, and RBR speed rate technologies. It
performs compliance test automation with a 4-port VNA and generates a comprehensive test report
including test limits, margins, and pass/fail status of each test parameter. The test plans performed by the
S94DPPCB compliance test software are based on the latest DisplayPort and DP Alt Mode Compliance
Test Specification (CTS) by Video Electronics Standards Association (VESA).
S94DPPCB supports multiport configurations using a 4-port VNA and L8990M-0LZ (e.g. 20-port switch
matrix), which fully automates the test procedure and dramatically reduces the test time by eliminating
manual cable reconnections.
S94DPPCB requires S96011B, KS8400B PathWave Test Automation and KS8401B HTML5 Result
Listener Plugin.
Refer to http://www.keysight.com/find/S94DPPCB for more details.
USB Type-C Interconnects Compliance Test Software
(S94USBCB)
This application software provides a fast and automated way to characterize and debug USB Type-C
interconnect products such as cable assemblies, connectors, or raw cables on USB4, USB 3.2, USB 3.1,
and USB 2.0 technologies. It also covers USB4 and USB 3.2 Linear Re-Driver (LRD) active cable
assemblies and is Thunderbolt compatible to test TBT 3 and TBT 4 protocols. It allows to automatically
execute compliance tests with a 4-port VNA based on the latest USB Type-C Compliance Test
Specification (CTS) by USB-IF, and displays the comprehensive test results including test limits, margins,
and pass/fail status of each test parameter.
S94USBCB supports multiport configurations using a 4-port VNA and L8990M-0LZ (e.g. 20-port switch
matrix), which fully automates the test procedure and dramatically reduces the test time by eliminating
manual cable reconnections. E5081A ENA-X is not recommended for USB Type-C low-speed signal test
which requires measurements from 300 kHz.
S94USBCB requires S96011B, KS8400B PathWave Test Automation and KS8401B HTML5 Result
Listener Plugin.
Refer to www.keysight.com/find/S94USBCB or S94USBCB USB Type-C Interconnects Compliance
Software data sheet (literature number 3122-1253) for more details.
