Overview of the Modules 2.1.2 Overview of DLM Head Parts DLM Head Service Manual SIPLACE Placement Heads DLM3/DLM4 17 DLM head with twelve segments 1. Star, fitted 2. "Z axis down" sensor 3. RSF - digital rota …

Overview of the Modules

DLM Head 2.1.2 Overview of DLM Head Parts

16 Service Manual SIPLACE Placement Heads DLM3/DLM4

2.1.2

2.1.2 Overview of DLM Head Parts

Overview of DLM Head Parts

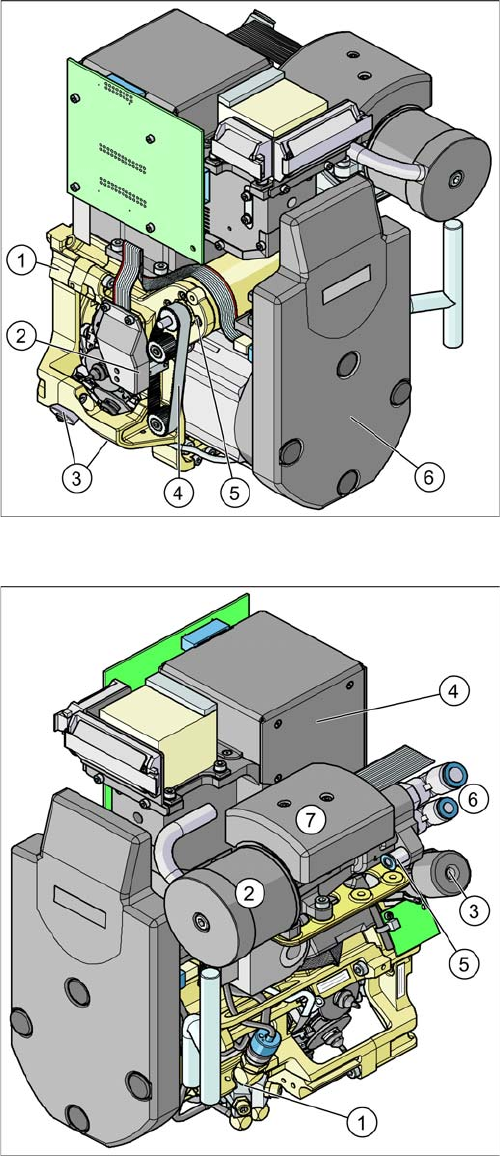

DLM head with twelve segments

1. Collect&Place head 12 DLM3

[03041228-xx] (showed)

[03082532-xx] (DLM4)

Collect&Place head 6 DLM3

[03048341-xx] (not for D4 and DX machines)

2. Light barrier "Z Axis up" (behind the cover)

[00347297-xx]

3. Valve positioning drive placement circuit

[00368076-xx]

Valve positioning drive reject circuit

[DLM3: 00368074-xx] (not for DLM4)

4. Z axis toothed belt

[00334936-xx]

5. Z axis drive

[03038908-xx]

6. Intermediate distributor, digital (behind the cover)

[DLM3: 00330648-xx] / [DLM4: 03082809

xx]

DLM head with twelve segments

1. Forced air unit with electromagnetic valve (version 02

– downwards compatibility)

[00367793-xx]

2. Silencer

[03003134-xx]

3. Turning station

[DLM3: 00341780-xx] / [DLM4: 03083835-xx]

4. Component camera 18x18

[03014449-xx]

Component camera 27x27

[03018637-xx]

5. Compressed air supply for forced air unit

6. Compressed air supply for vacuum generator (hold

ing circuit and pick/place)

7. Vacuum measurement board (under the cover)

Overview of the Modules

2.1.2 Overview of DLM Head Parts DLM Head

Service Manual SIPLACE Placement Heads DLM3/DLM4 17

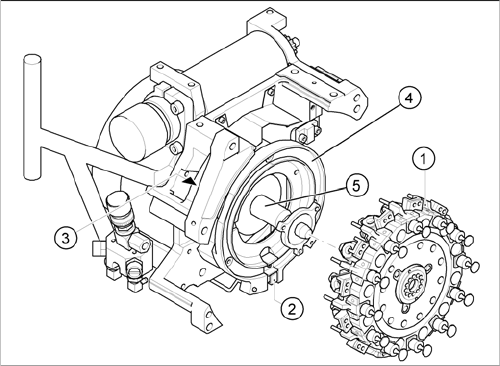

DLM head with twelve segments

1. Star, fitted

2. "Z axis down" sensor

3. RSF - digital rotary encoder

4. Circular guide (raceway), aligned to star drive axis

5. Star drive axis, centered by head housing and Z-axis

claw
