Settings Calibration 5.13.3 Calibration Procedure 82 Service Manual SIPLACE Placement Heads DLM3/DLM4
Settings
5.13.2 Calibrating the Heads and Cameras (SW70x) Calibration
Service Manual SIPLACE Placement Heads DLM3/DLM4 81
5.13.2
5.13.2 Calibrating the Heads and Cameras (SW70x)
Calibrating the Heads and Cameras (SW70x)
5.13.3
5.13.3 Calibration Procedure
Calibration Procedure
C&P calibration procedure
► Switch over to the operator level Service (Customer).
► Switch over to the Service menu and select Ma
-
chine calibration or Automatic calibration (depending
on SW version).
► Select 8. Head and cameras and click on Next.
► On the next page, select the gantries on which the
heads to be calibrated are located and then click on
Next.
► The next step is to check the calibration conditions
(nozzle, calibration tool etc.). Follow the instructions
provided.
After this step, calibration will begin. All required interme
-
diate steps (head height etc.) will be performed automat
-
ically.
Settings
Calibration 5.13.3 Calibration Procedure
82 Service Manual SIPLACE Placement Heads DLM3/DLM4
Description of the Circuit Boards
Base adapter DLM [03081413-xx]
Service Manual SIPLACE Placement Heads DLM3/DLM4 83
6
6 Description of the Circuit Boards
Description of the Circuit Boards
6.1
6.1 Base adapter DLM [03081413-xx]
Base adapter DLM [03081413-xx]

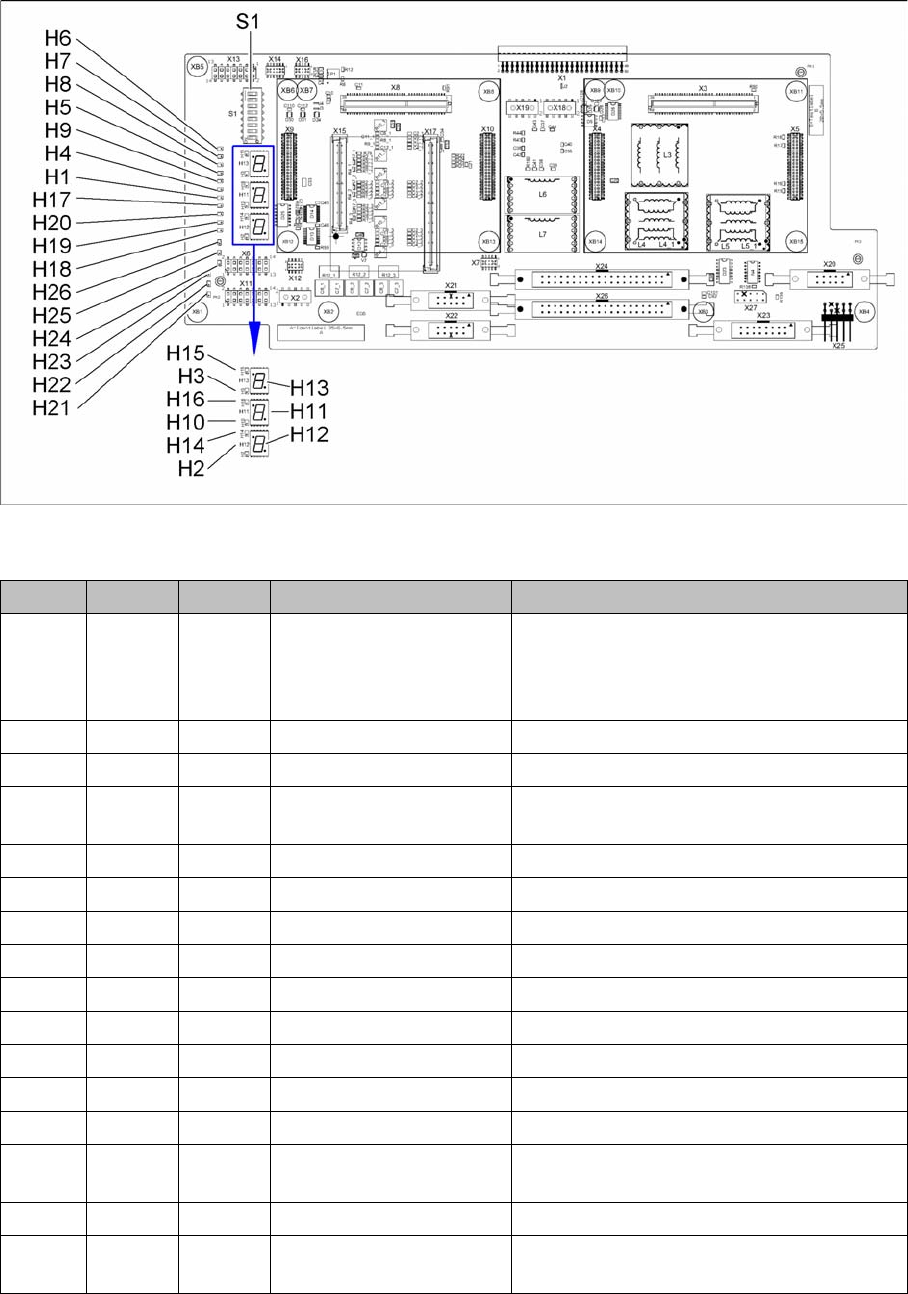

03081413-03
LED [03081413-03]
LED Color Status Signal name Description
H1 RD ON POWERFAIL_LOCAL_N „LOC“-PowerFail board:
ON, when 1.5VDC, 3.3VDC, 5VDC and
15VDC are outside the permissible toler
-
ance
H2 RD ON V_DISP_XC167 XC167 error
H3 RD ON V_DISP_HCU1 HCU1 error
H4 RD ON FPGA_TEST_5 24VDC PowerFail:
when voltage < 23VDC
H5 RD ON FPGA_TEST_1 15VDC PowerFail
H6 RD ON FPGA_TEST_6 1.5VDC PowerFail
H7 RD ON FPGA_TEST_2 3.3VDC PowerFail
H8 RD ON FPGA_TEST_4 5VDC PowerFail
H9 RD ON FPGA_TEST_3 Not used
H10 RD ON V_DISP_HCU2 HCU2 error
H14 GN ON V_DISP_XC167 XC167 OK
H15 GN ON F_DISP_HCU1 HCU1 OK
H16 GN ON V_DISP_HCU2 HCU2 OK
H17 RD ON +V-LS Overcurrent display or switching off the light
barriers on the stepping motor
H18 RD ON DZS ERR Overcurrent, „Swivel in“ stepping motor
H19 RD ON ZHS ERR Overcurrent, "Pick-up/placement circuit"
stepping motor
