Service Work Exchange the Placement head Service Manual SIPLACE Placement Heads DLM3/DLM4 19 3 3 S e r v ic e W o r k Service Work 3.1 3 . 1 E x c h a n g e t h e P la c e m e n t h e a d Exchange the Placement head ► Fo…
Overview of the Modules
DLM Head 2.1.2 Overview of DLM Head Parts
18 Service Manual SIPLACE Placement Heads DLM3/DLM4
Service Work
Exchange the Placement head
Service Manual SIPLACE Placement Heads DLM3/DLM4 19
3
3 Service Work
Service Work
3.1
3.1 Exchange the Placement head
Exchange the Placement head
► For removal and installation details of the placement head, read the service manual for your ma
-
chine.
3.2
3.2 Removal/Installation of Head Front Part
Removal/Installation of Head Front Part
Parts, equipment and tools
▪ Set of Allen keys.
▪ Torx Allen screwdriver TX8 [03080081-xx]
▪ Calibration tool version 3 [03010565-xx]
▪ Assembling instruction for "component sensor" [00193356-xx], if necessary
Overview
NOTICE
Differences between the various DLM heads
The instructions apply in principle to all DLM head variants.
Any differences will be explicitly indicated.
NOTICE
Additional work
► If you need to perform further work on this head (e.g. replacing spare parts), fit the head to
the head mount [03056231-xx].

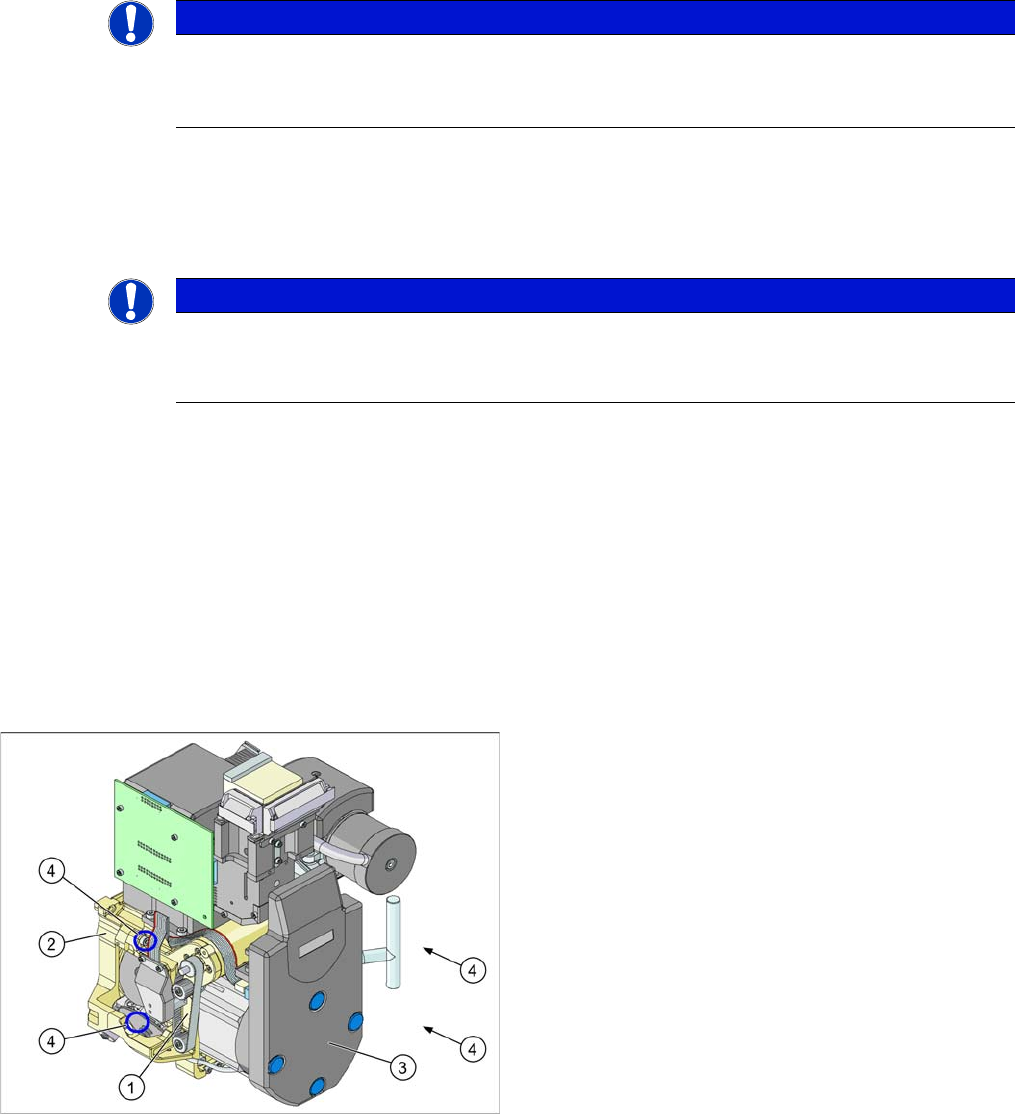

1. Front part
2. Back part
3. Intermediate distributor (under the cover)
4. Fastening screws (4x) for the front part of the head
Service Work
Removal/Installation of Head Front Part
20 Service Manual SIPLACE Placement Heads DLM3/DLM4
Preparation
► Remove the head from the machine. For details about removing and fitting the placement head, refer
to the service manual for your machine.
Removal
► Switch off the machine and secure it to prevent unauthorized reactivation.
► Remove the head from the machine.
► If you have not dismantled the head from the gantry: pull the connection cable plug off the gantry
board.
► Remove the compressed air hose for the blast air.
► DLM3 only: If required, loosen the screws fastening the C&P12 component sensor option. Observe
the assembly instructions "component sensor" [DE+EN: 00193356
-
xx].
1. Front part
2. Back part
3. Fastening screws (4x) for the front part of the head
4. Compressed air hose for blast air
1. Star
2. Front part
3. Back part
4. Vacuum distributor block
NOTICE
Avoid confusing the front and back sections of different heads
The front and back parts of each specific head belong together.
► Make sure that the front and back part of the head always have the same serial number.
Do not confuse these parts with parts from other heads, which have different serial num
-
bers.
