Machine Illustrations
Edition 2.0E - 51 - NXT II Specifications

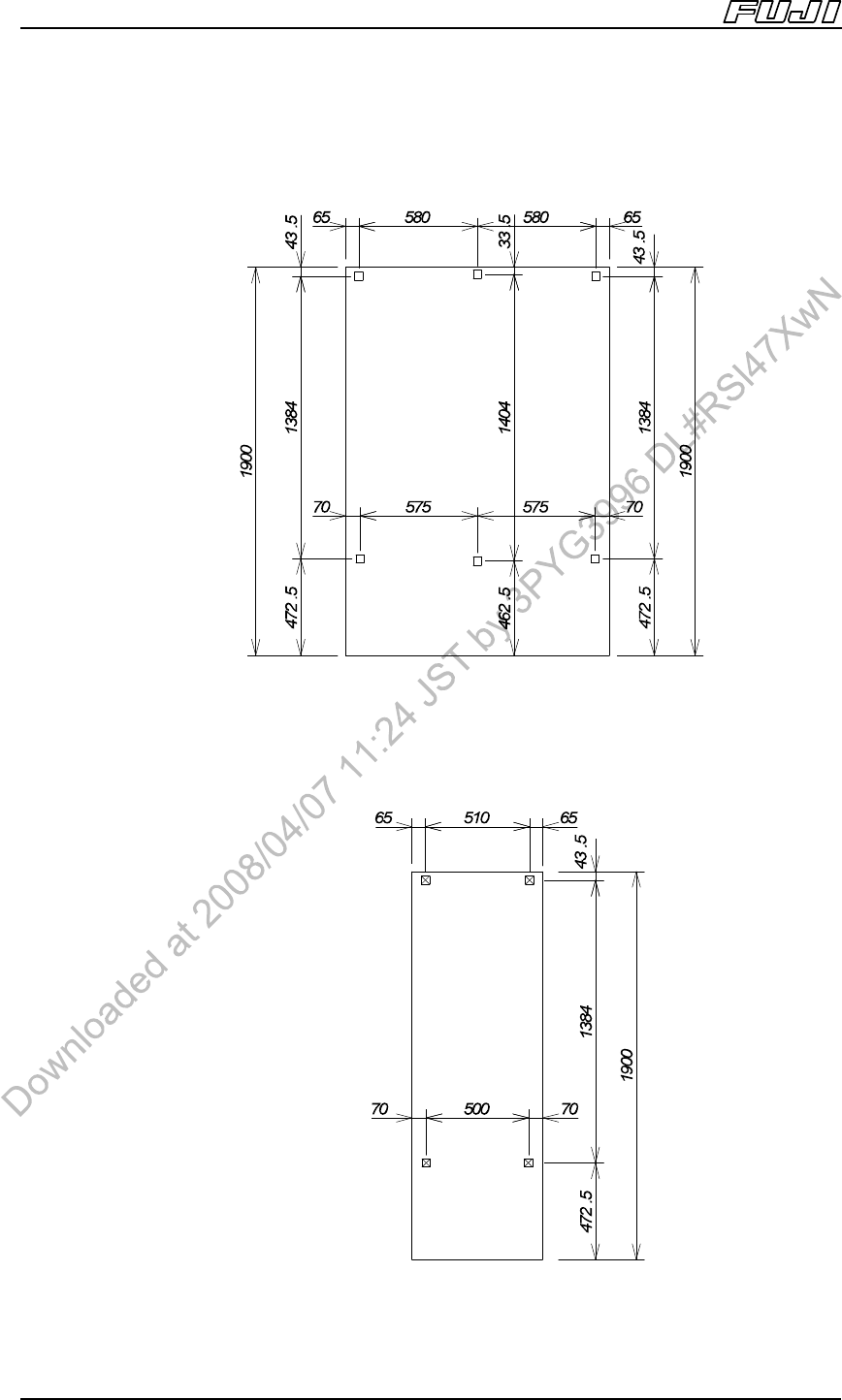

11.3. Leveling Positions
<4MII base>
<2MII base>
Units: mm
Machine Front Side
Machine Front Side
Machine Illustrations
Edition 2.0E - 52 - NXT II Specifications

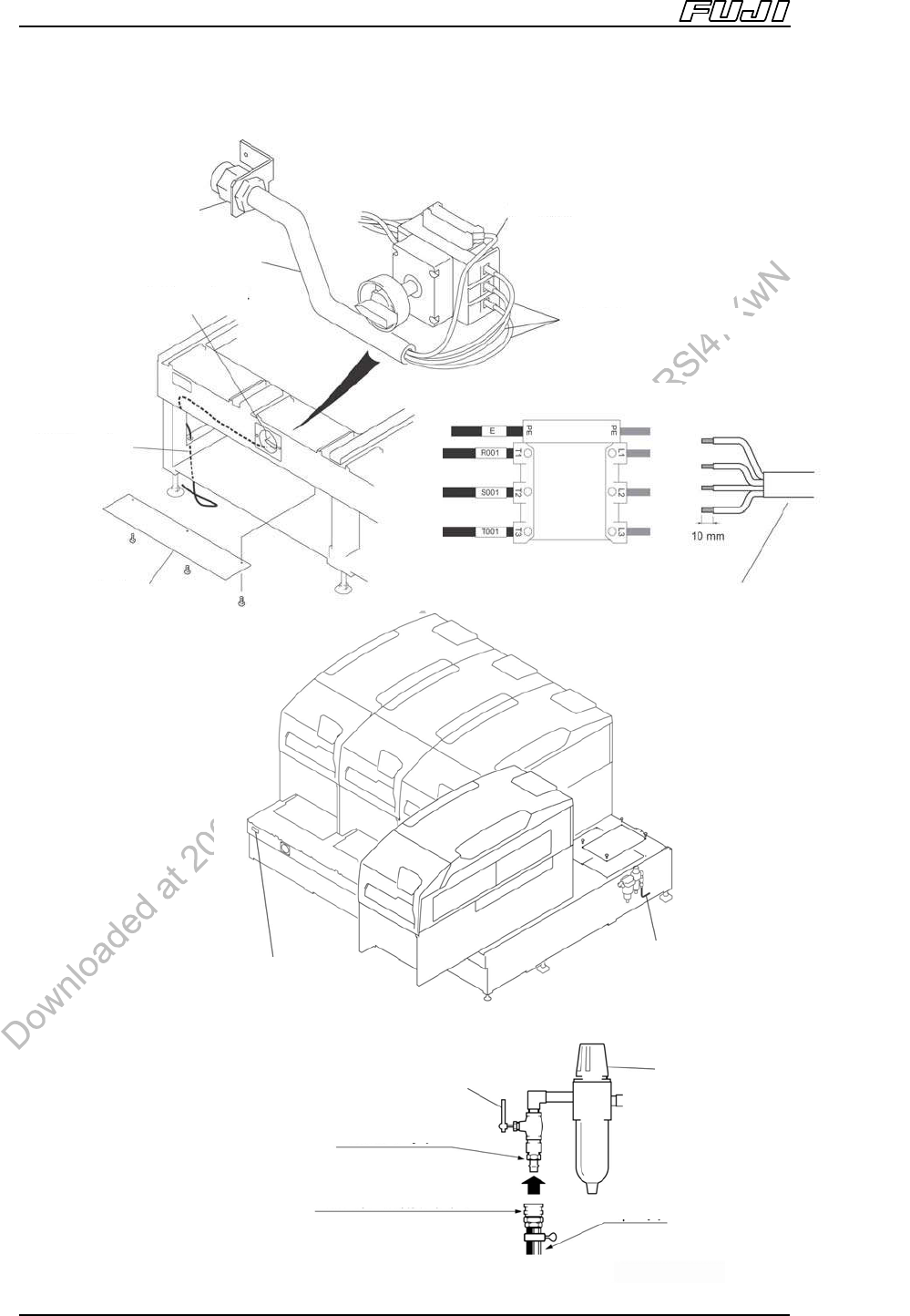

11.4. Air and Power Supply Locations
Cable fixin
g
collar
Main switch
Power cable
Power cable
Cover
Ground wire
3-phase
electric wire
Digital pressure gauge
Air inlet
Primary side
Rear side of the main switch
The size of the cable for the primary side should be
AWG12 (3.5 sq) or larger.
Leve
r
20PM plug
3/8” hose socket
0.5 MPa or greater
Hose
Knob
NXTII Machine Specifications
Revision History
Date of Issue Version No. Items Contents of the Revision
March 13,2008
CNT-NXTII-02E 3.4 Leaded & bump parts sizes for H12HS [H12S] have been changed.
February,2007
CNT-NXTII-01E Newly released.
