9.9 带盘的形状及尺寸
2.0
±
0.5
Fig.I8
TableI2
带盘的区分记号 适用料带宽 A N W
1
W
2
R08 □ 8 178～382 60 以上 +2
8.4
0
14.4以下
単位:mm
Note
(a)带盘区分记号中的□内，进入相对于 A 尺寸公称值的以下英文大写字
母。
A:178B:180C:254D:330E:360F:370G:382
(b)W
2
尺寸表示带盘的总厚度。
1209-001
9.9带盘的形状及尺寸
OM-1744
9-4
1209-001
10.电路

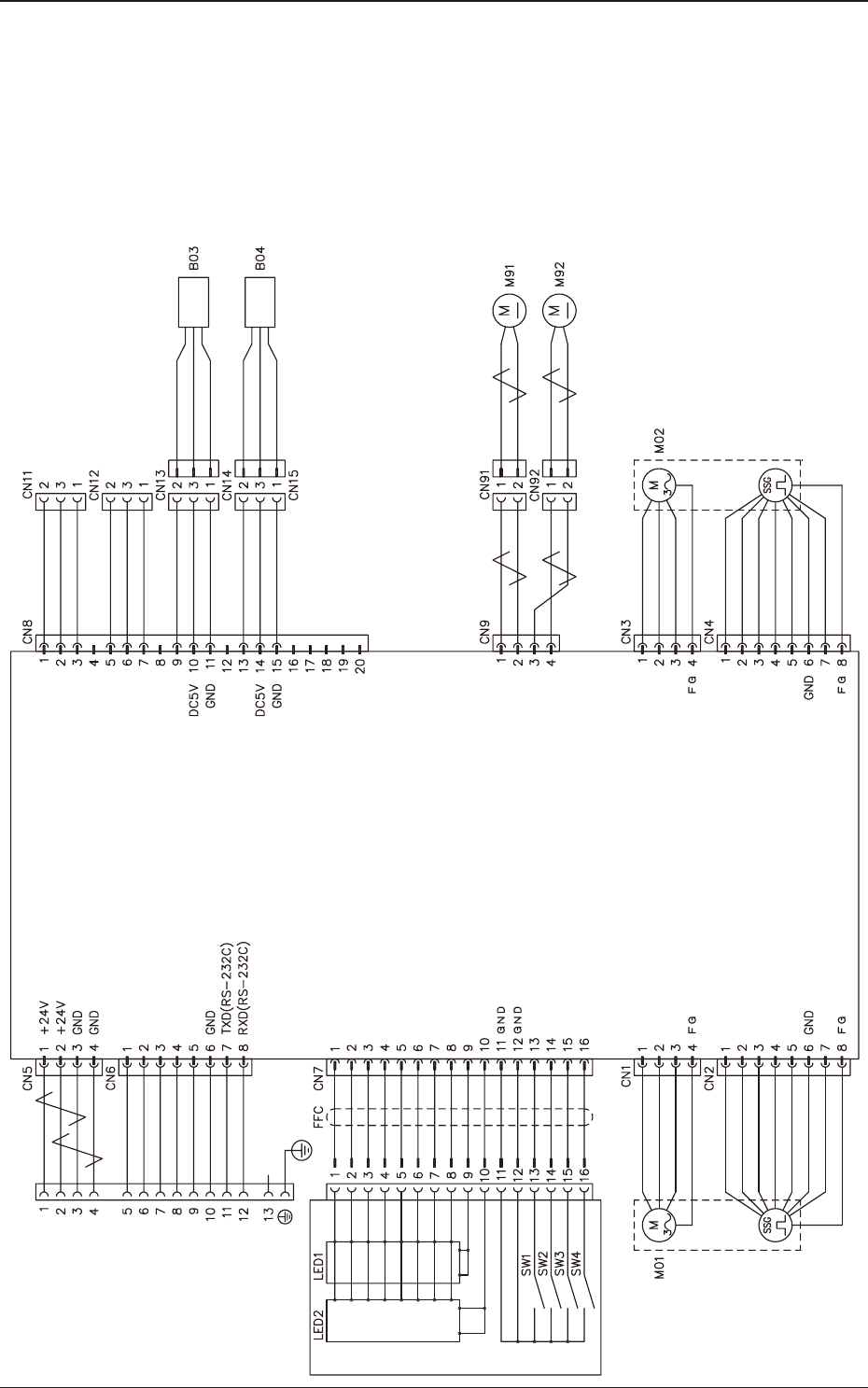

10.1 送料器控制电路图 (GT-38080)
Drawer Connector
Connection Confirmation Signal
Lane 1 Feed Command
Lane 2 Feed Command
READY Signal
Connection Confirmation Signal
Lane 2 Tension Detection Sensor
Lane 1 Tension Detection Sensor
White
Brown
Blue
White
Brown
Blue
Blue
Black
Blue
Black
Blue
Black
Blue
Black
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Operation Panel
Cover Tape Take-up Key
7-Segment LED is turned ON (a)
7-Segment LED is turned ON (b)
7-Segment LED is turned ON (c)
7-Segment LED is turned ON (d)
7-Segment LED is turned ON (e)
7-Segment LED is turned ON (f)
7-Segment LED is turned ON (g)
7-Segment LED is turned ON (D.P)
For Dynamic Light ON (first figure)
For Dynamic Light ON (second figure)
Lane Selection Key
Forward Key
Backward Key
DC Motor No. 2 Power Supply
DC Motor No. 1
DC Motor No. 1 Power Supply
DC Motor No. 2
Lane 1 Take-up Motor
Lane 2 Take-up Motor
Lane 1 Servo Motor
Motor No. 1 Phase W
Motor No. 1 Phase U
Motor No. 1 Phase V
Reserve
Encoder No. 1 Phase A
/Encoder No. 1 Phase A
Encoder No. 1 Phase B
Power Supply (DC5V)
/Encoder No. 1 Phase B
Motor No. 2 Phase W
Motor No. 2 Phase U
Motor No. 2 Phase V
Lane 2 Servo Motor
Reserve
Encoder No. 2 Phase A
/Encoder No. 2 Phase A
Encoder No. 2 Phase B
/Encoder No. 2 Phase B
Power Supply (DC5V)
Feeder Control Amplifier
10.电路
OM-1744
10-1
10.2 送料器控制电路图 (GD-38080)
1209-001

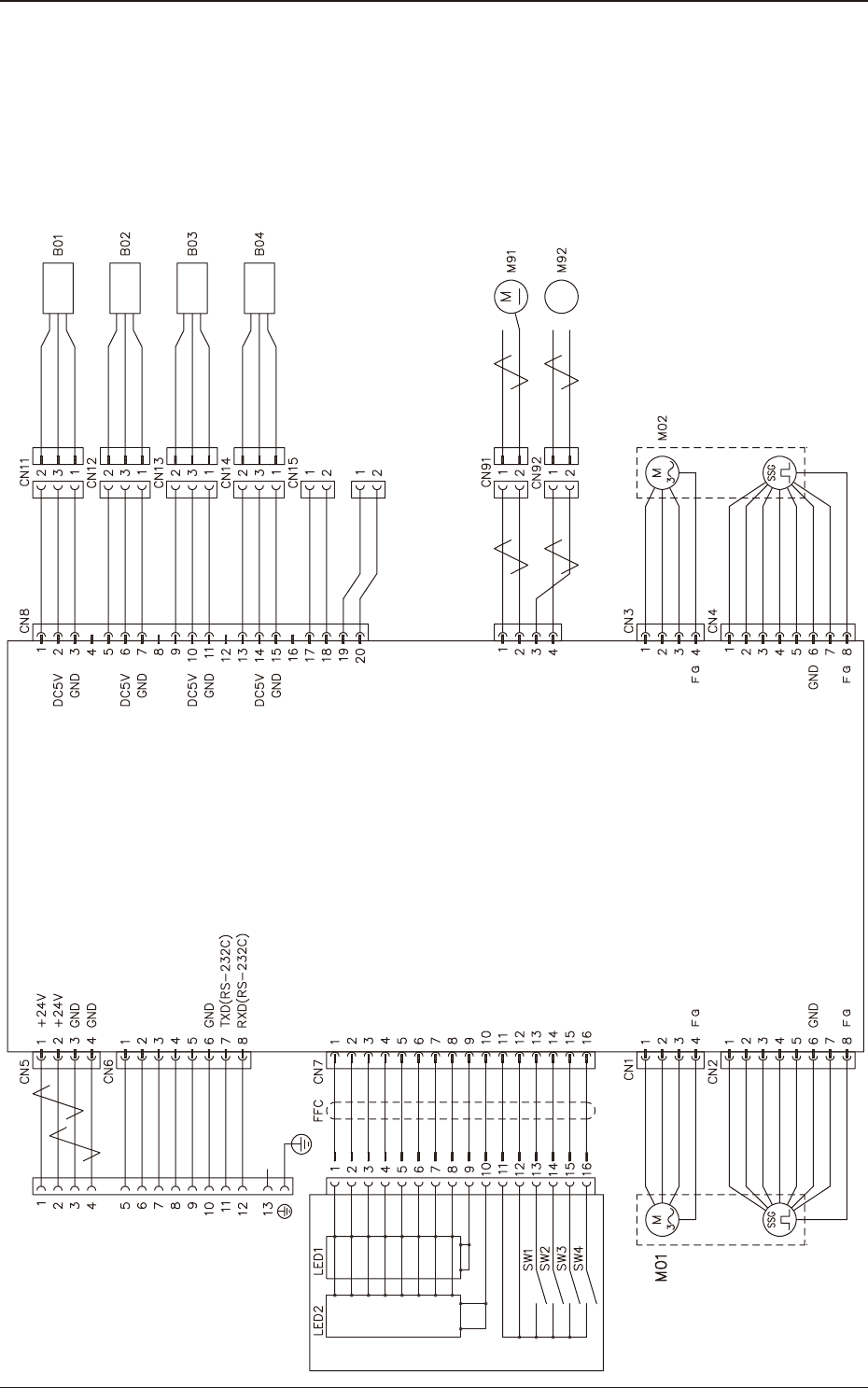

10.2送料器控制电路图 (GD-38080)
Drawer Connector
Lane 1 Feed Command
Lane 2 Feed Command
READY Signal
Connection Confirmation Signal
Connection Confirmation Signal
7-Segment LED is turned ON (a)
7-Segment LED is turned ON (b)
7-Segment LED is turned ON (c)
7-Segment LED is turned ON (d)
7-Segment LED is turned ON (e)
7-Segment LED is turned ON (f)
7-Segment LED is turned ON (g)
7-Segment LED is turned ON (D.P)
For Dynamic Light ON (first figure)
For Dynamic Light ON (second figure)
Cover Tape Take-up Key
Lane Selection Key
Forward Key
Backward Key
GND
GND
Motor Phase 1W
Motor Phase 1U
Motor Phase 1V
Encoder Phase 1A
/Encoder Phase 1A
Encoder Phase 1B
Power Supply (DC5V)
/Encoder Phase 1B
Feeder Control Amplifier
Lane 1 Servo Motor
Operation Panel
Lane 1 Splicing Detection Sensor
Lane 2 Splicing Detection Sensor
Lane 1 Tension Detection Sensor
Lane 2 Tension Detection Sensor
DC Motor 1
DC Motor 1 Power Supply
DC Motor 2
DC Motor 2 Power Supply
Motor Phase 2W
Motor Phase 2U
Motor Phase 2V
Encoder Phase 2A
/Encoder Phase 2A
Encoder Phase 2B
Power Supply (DC5V)
/Encoder Phase 2B
Reserve
Lane 2 Servo Motor
White
Brown
Blue
White
Brown
Blue
White
Brown
Blue
White
Brown
Blue
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Blue
Black
Blue
Black
Lane 1 Take-up Motor
Lane 2 Take-up Motor
Blue
Black
Blue
Black
Blue
Black
Blue
Black
