VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
October 10, 2008
13
XPM2 / XPM3 Technical Reference Manual Conveyor Systems
REMOVE AND REPLACE EDGE RAIL CONVEYOR CHAINS AND RAILS
REMOVE CHAINS

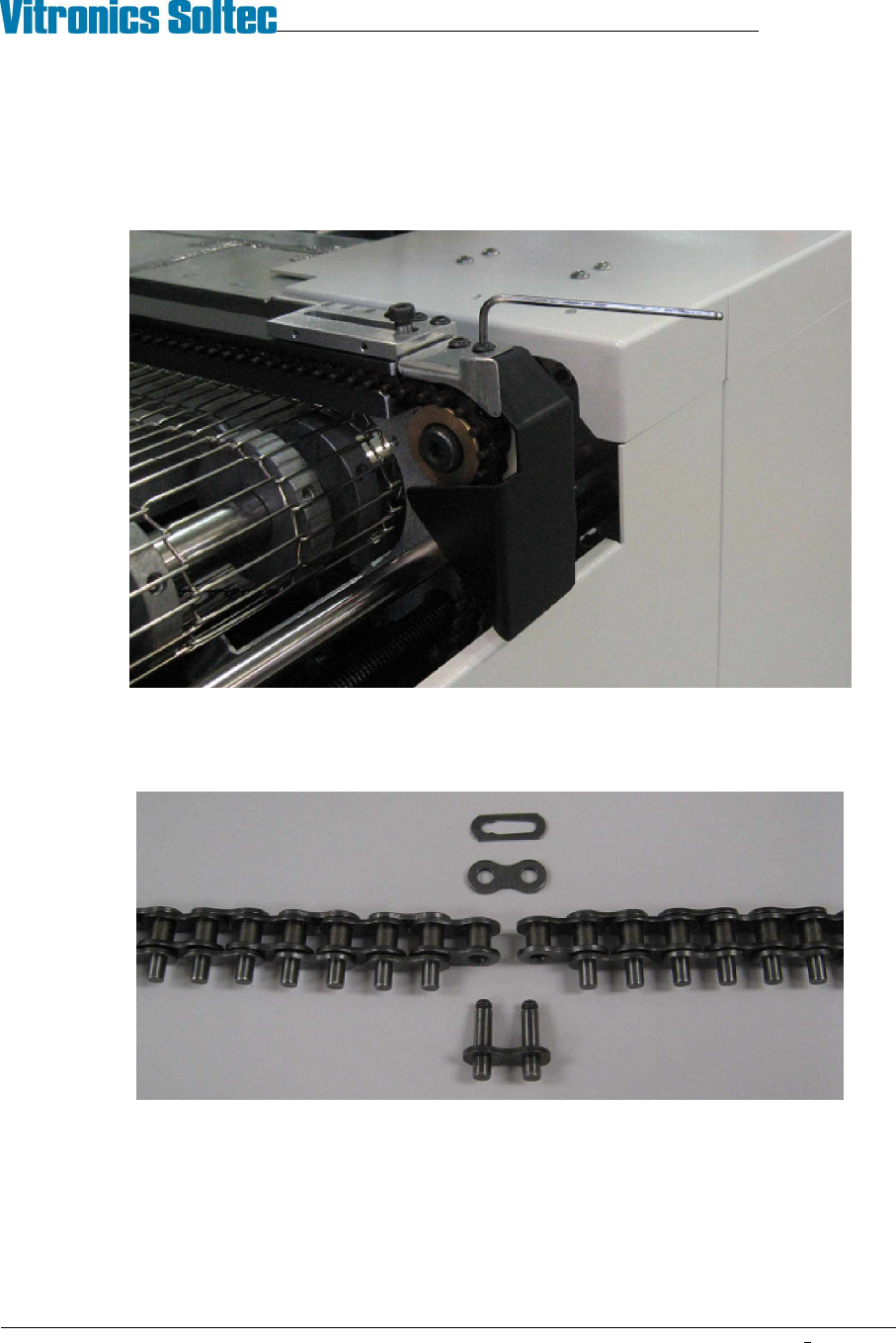

1. At the off-load end of the oven, remove the chain guard from each rail by removing the button head
screws with a 1/8" hex key.
2. Run the conveyor until the master link for one of the chains comes up just under the rail. Remove the
master link from the chain and unthread the chain from all of the sprockets that it wraps around on its
way under the oven. Make sure that the chain is off the drive sprocket and tie-wrap it to the idler shaft
just below the end of the oven.
3. Go to the on-load end of the oven and remove the chain guards. Pull the chain out of the rail and let it
drop down. Tie wrap the end of the chain to the idler shaft below the end of the oven.
4. Repeat steps 2. and 3. to remove the chain from the remaining edge rail(s).
VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
October 10, 2008
14
XPM2 / XPM3 Technical Reference Manual Conveyor Systems
REMOVE RAILS
1. Remove both edge rail chains (see above).
2. Use a 5/32" hex key to remove the shoulder bolts that retain both ends of each rail in the rail capture
brackets.
3. Use a 1/8 hex key to loosen the set screw in the top of the barrel nuts on all rail of the hangers.
4. With a 5/8 hex wrench remove all of the barrel nuts and thrust washers. The rail (with rail clamps still
attached) will drop down to rest on the mesh belt.
VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
October 10, 2008
15
XPM2 / XPM3 Technical Reference Manual Conveyor Systems
5. Slide the rail assemblies out from under the hanger bars and withdraw the rail from the oven tunnel.
Exercise extreme care when handling the rails. DO NOT to let them bend or they may be permanently
deformed.
6. Using a 3/16 hex key loosen but DO NOT REMOVE the two ¼-20 socket head cap screws in each rail
clamp and slide the clamps off the rail extrusions.
