VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
October 10, 2008
33
XPM2 / XPM3 Technical Reference Manual Conveyor Systems

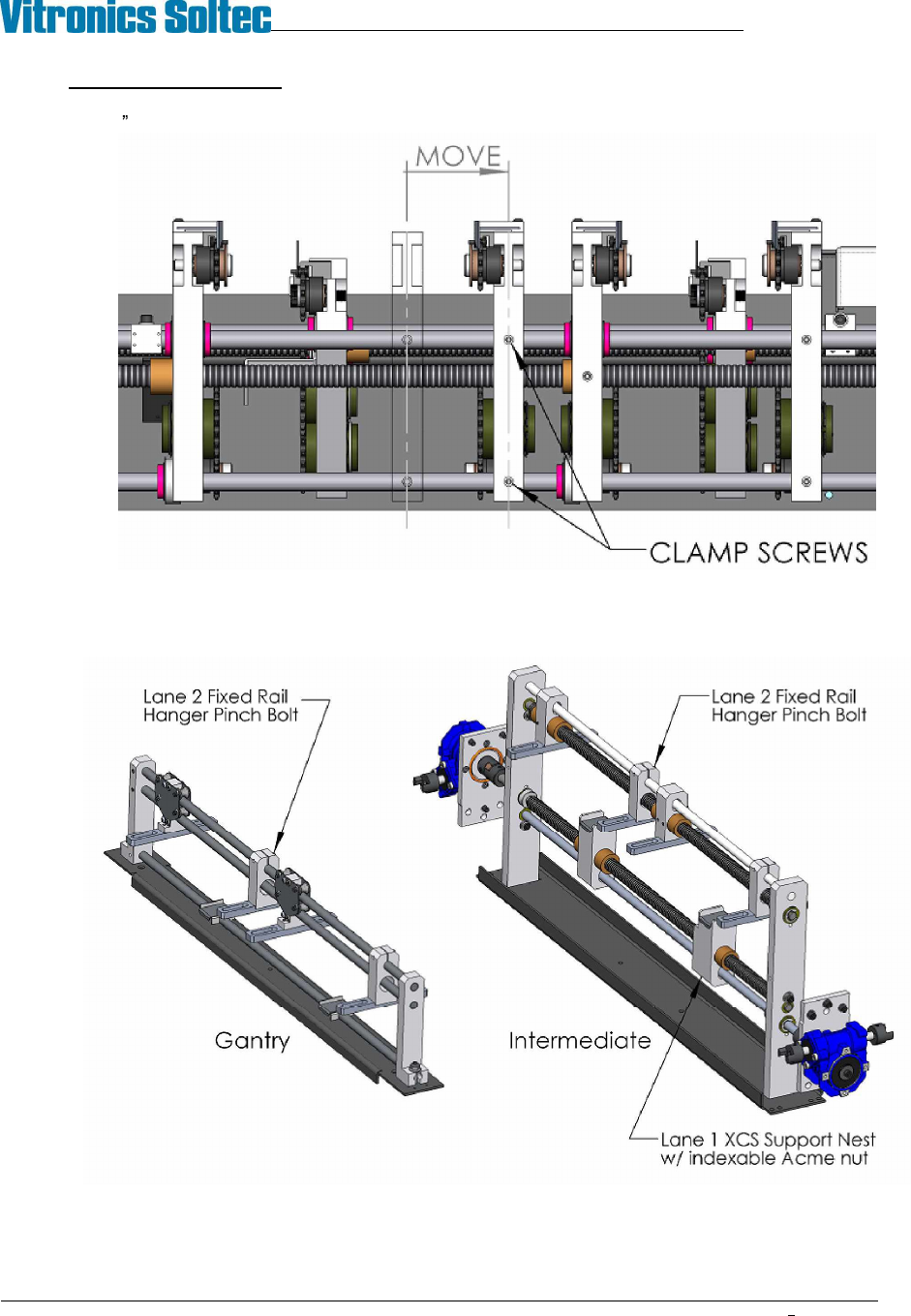

8. Move the lane 2 fixed rail: Loosen the lane 2 fixed rail end plate clamp screws and corresponding pinch
bolts in each gantry and intermediate rail hanger, then move the lane 2 fixed rail to the target dimensions
(±.005 ) calculated in step 6.
VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
October 10, 2008
34
XPM2 / XPM3 Technical Reference Manual Conveyor Systems

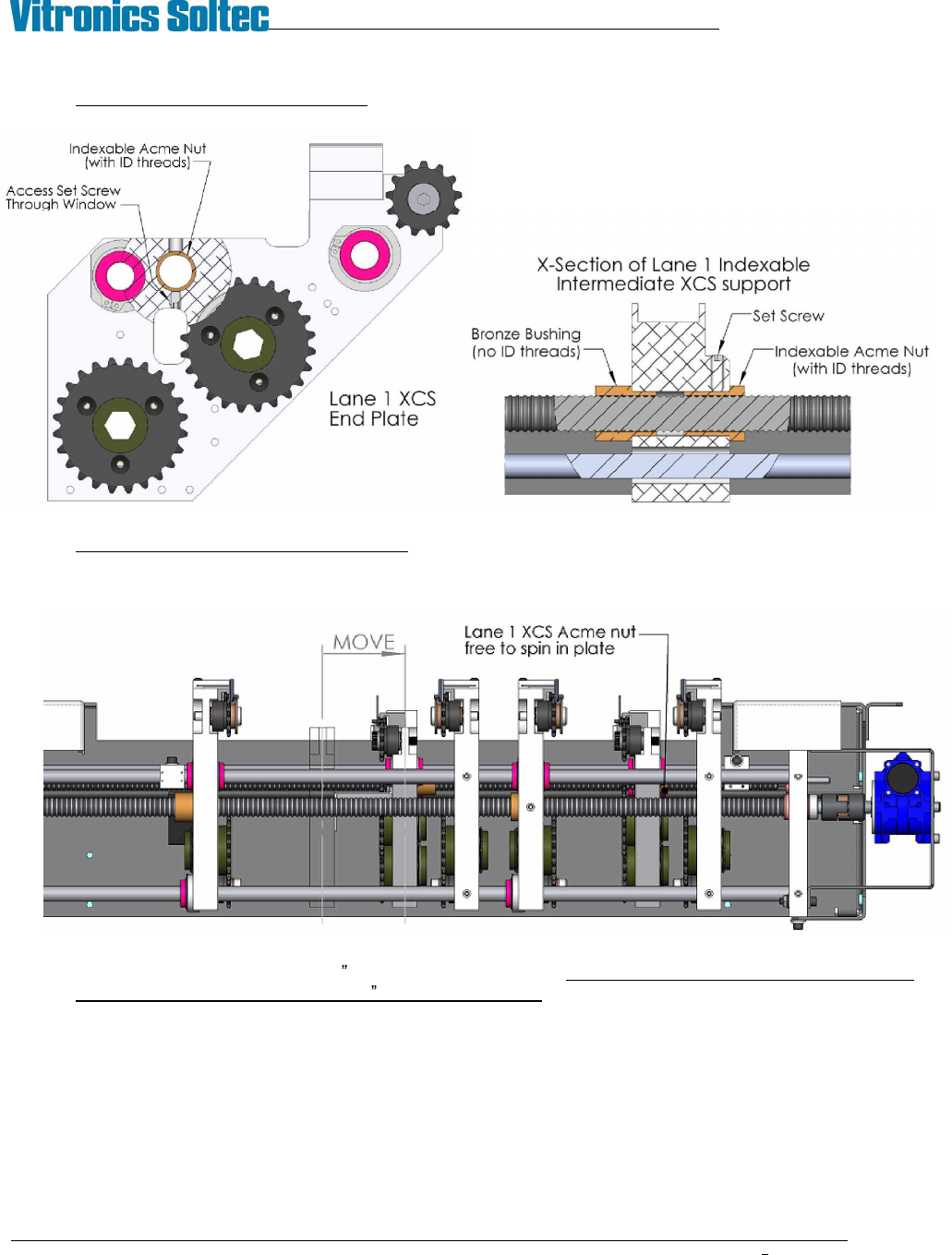

9. Decouple the lane 1 XCS Acme nuts by loosening the set screws in the onload and offload XCS end plates
and intermediate support nest(s).
10. Move the lane 2 XCS toward the fixed rail by operating the XCS width adjust system. Make the move in
small increments, stopping to rotate the indexable XCS Acme nuts in lane 1 so that the rail stays straight
and the XCS chain does not run into the fixed rail. It may be necessary to temporarily remove the XCS
chain and rail from lane 1 while performing this step.
11. Once the XCS is approximately 1 (25mm) from the fixed rail adjust each of the lane 1 XCS Acme nuts to
achieve the target dimensions (±.005 ) calculated in step 6. Be very careful to not over tighten the set
screws when locking the adjustable Acme nuts in position. It is very easy to distort the Acme threads
enough to bind the nut on the feedscrew.
VITRONICS-SOLTEC REFLOW SOLDERING SYSTEMS
October 10, 2008
35
XPM2 / XPM3 Technical Reference Manual Conveyor Systems
12. Decouple the lane 1 moveable rail Acme nuts: Loosen the set screws in the onload and offload end plates
and intermediate rail hanger(s). Note that there are two set screws acting on the Acme nut in each of the
end plates.
13. Move the lane 2 moveable rail toward the fixed rail by operating the edge rail width adjust system. Make
the move in small increments, stopping to rotate the indexable Acme nuts in lane 1 so that the rail stays
straight and does not run into the XCS. It may be necessary to temporarily remove the moveable rail and
chain from lane 1 while performing this step.
14. When the moveable rail is close to position adjust each of the lane 1 moveable rail Acme nuts to achieve
the exact target dimensions (±.005 ) calculated in step 6. Be very careful to not over tighten the set
screws when locking down the adjustable Acme nuts. It is very easy to distort the Acme threads and
cause the nut to bind on the feedscrew.
