How to Configure a Multi Line Job
4.1.3 Copying/Renaming/Creating/Deleting a Multi Line Job Defining the Output Folder
SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline 121
4.2
4.2 Defining the Output Folder
Defining the Output Folder
If a new multi line job has been created, this means that you still need to define an output folder in which
the SiCluster Multiline results can be stored for this multi line job.

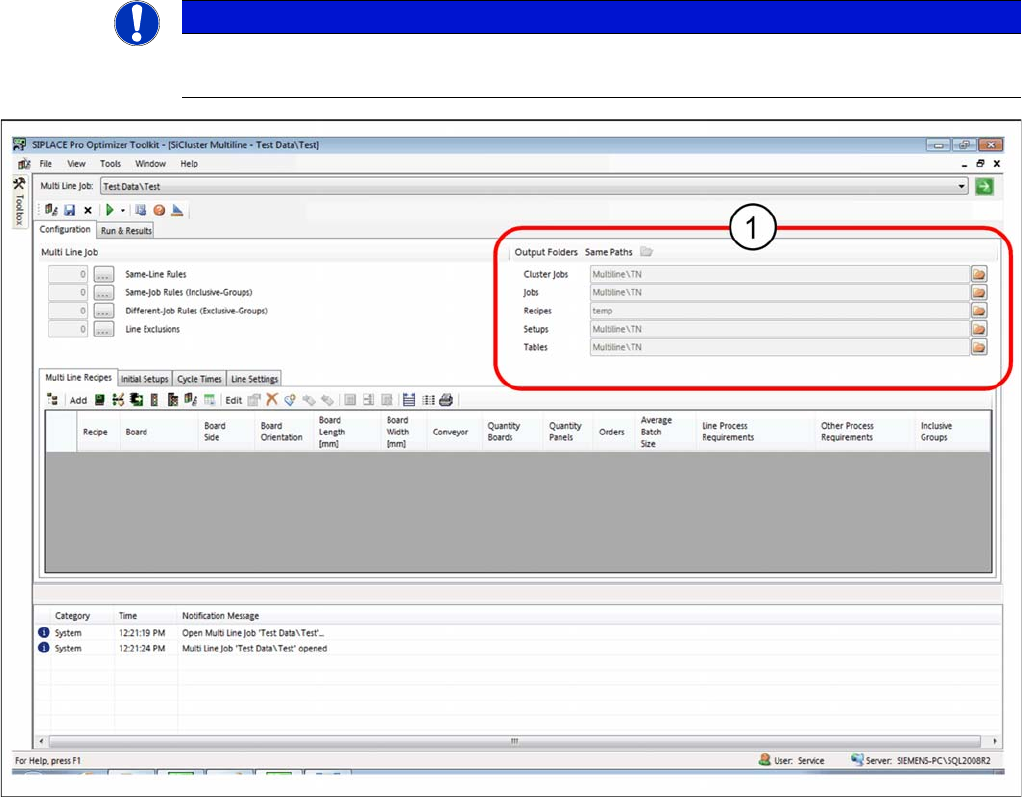

Tab: configuration: defining output folders
► Go to (1) and define the folders in which the results for this multi line job are to be stored. This is
where the temporarily generated recipes/jobs ( e.g. when creating ideal cycle times) are saved.
▪The Same Paths function saves cluster jobs, jobs, recipes, setups and tables in the same folder.
▪ You can select different folders for each of the result objects, provided the Same Path button has not
been enabled.
▪ The topmost folder is shown with a "\".
NOTICE
The output folder must be defined.
If there is no output folder defined, you will be unable to start optimization.
How to Configure a Multi Line Job
Adding Recipes or Boards 4.1.3 Copying/Renaming/Creating/Deleting a Multi Line Job
122 SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline
4.3
4.3 Adding Recipes or Boards
Adding Recipes or Boards
In the Multi Line Recipes tab you can define the recipes for the multi line job by adding boards or recipes.
These boards/recipes should be optimally allocated to the defined recipes.
► Go to Configuration and select the Multi Line Recipes tab.
Tab: configuration - tab: multi line recipes - add boards
► Add individual boards or boards which are in recipes, jobs, cluster jobs and multi line jobs.
Icon Description
1 Add boards. You can add one or more boards. The "4.3.2 Selecting Board Side for Add-
ing" [ ➙ 124] dialog box will be opened. You will be asked to select the board side.
2 Select Options to add boards. The "4.3.1 Defining Options for Adding Boards" [ ➙ 123]
dialog box will open.
3 Adding boards from recipes.
4 Adding boards from the recipes of a job. This adds all boards for a job to the multi line job.
5 Adding recipes from a cluster job. This adds all recipes for the cluster job to the multi line
job.
6 Adding recipes for a multi line job. This adds all recipes for the multi line job to the multi
line job.
7 Opens the CSV Import Wizard dialog box. This enables you to import recipe/job data with
the recipe size information. The boards must be present in SIPLACE Pro.
See also "9 Import Wizard for CSV Data" [ ➙ 181].
How to Configure a Multi Line Job
4.3.1 Defining Options for Adding Boards Adding Recipes or Boards
SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline 123
4.3.1
4.3.1 Defining Options for Adding Boards
Defining Options for Adding Boards
► In this area you can define how the cluster recipe
names are to be formed when adding boards.
► Go to the Multi Line Recipes tab and select the
icon.
⇨ The Options for Adding Boards dialog box will open.
Parameter Description
Add board side desig-
nator string to the clus-
ter recipe name
Enabled: the entered designator is added to the cluster name recipe. To en-
sure that the top and/or bottom is recognized, enter the relevant designator at
Designator for Top Side and/or Designator for the Bottom Side.
Designator for top side This is the part of the name which is added to the cluster recipe for the top side.
Designator for bottom
side
This is the part of the name which is added to the cluster recipe for the bottom
side.
Add the board side
designator at:
Begin
End
This is where you can define whether the additional designator is to be added
at the beginning or end.
Do not add board
sides without any
placement
If you do not want to add boards without placements, enable this option.
When adding top +
bottom side from one
board put them into a
new inclusive group
Enabled: A new inclusive group is created for the top and bottom sides and is
allocated to the recipe for the top and bottom sides.
