How to Perform Multiline Clustering Performing Clustering Within the Line 154 SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline 5.3 5 . 3 P e r f o r m in g C lu s t e r in g W it h in t h e L in e Performing Clust…
How to Perform Multiline Clustering
Performing Multi Line Clustering
SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline 153

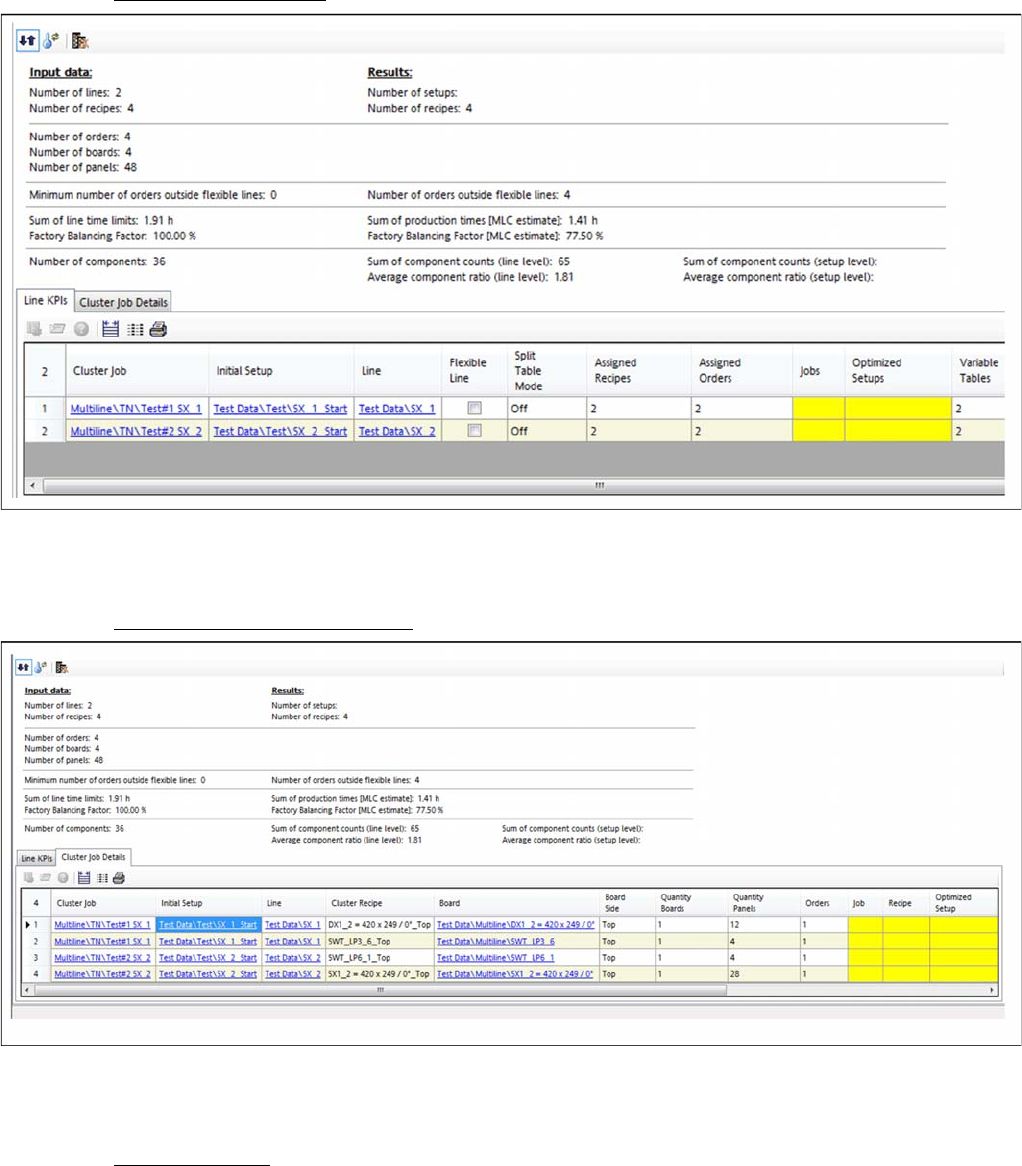

Result: tab: Line KPIs
Tab: line KPIs: cluster jobs created
▪ One cluster job has been created per line.
Result: tab – cluster job details
Tab: line KPIs: cluster jobs created
▪ Four cluster recipes have been distributed across the two cluster jobs.
Additional steps
▪ The results still missing will be marked yellow and determined in the following steps.
How to Perform Multiline Clustering
Performing Clustering Within the Line
154 SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline
5.3
5.3 Performing Clustering Within the Line
Performing Clustering Within the Line
► As a second step, start the Clustering in multi cluster job view (1).
Performing clustering within lines
⇨ The Multi Cluster Job Optimization will start.
⇨ Clustering within the lines will be run with the known SiCluster Professional algorithm. Depending on
the number of processor cores available, clustering may run parallel for several lines.
⇨ The results will be shown in the Line KPIs and Cluster Job Details tabs.
How to Perform Multiline Clustering
Performing Clustering Within the Line
SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline 155
Result: tab – line KPIs
Result: tab: line KPIs - multi line job created
Result: tab – cluster job details
Result: tab: cluster job details - multi line job created
▪ The jobs were created within the line (clustered).
▪ The results still missing will be marked yellow and determined in the following steps.
▪ The jobs created for all lines will be optimized by the SIPLACE Optimizer in the next step.
