How to Perform Multiline Clustering
Changing the Optimization Strategy (Optional)
156 SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline
5.4
5.4 Changing the Optimization Strategy (Optional)
Changing the Optimization Strategy (Optional)
You have the chance to edit and explicitly change the optimization parameters for cluster optimization
of the individual cluster jobs.
► Mark a cluster job in the table and select the icon from the toolbar in the Line KPIs tab.
⇨ The Cluster Parameters dialog box will open.
► Execute the required changes. See also "7.2 Optimization Parameters: Cluster Parameters"
[ ➙ 173].
5.5
5.5 Optimizing Jobs in Multi Job Optimization
Optimizing Jobs in Multi Job Optimization

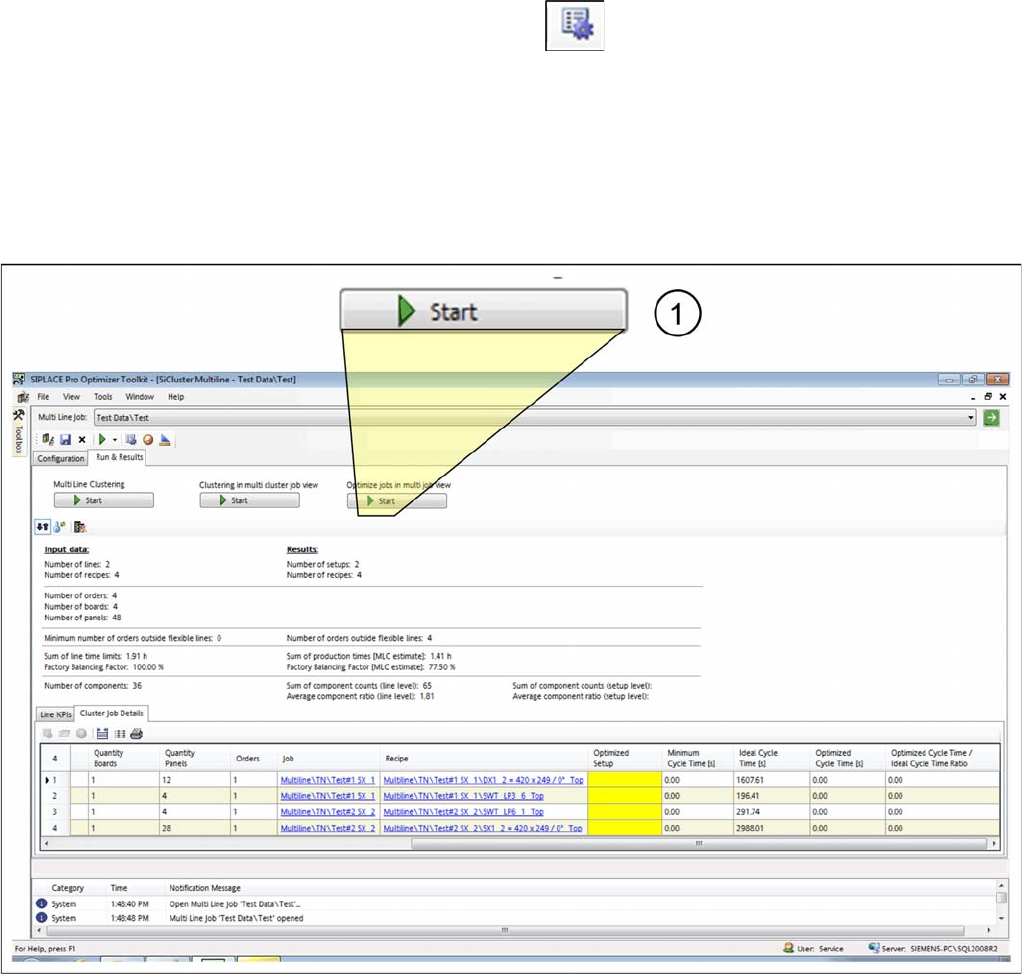

► As the third and last step, start the Optimize jobs in multi job view (1).
Optimizing multi line jobs
⇨ The Multi Job Optimization will start.
⇨ The results will be shown in the Line KPIs and Cluster Job Details tabs.
How to Perform Multiline Clustering
Optimizing Jobs in Multi Job Optimization
SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline 157

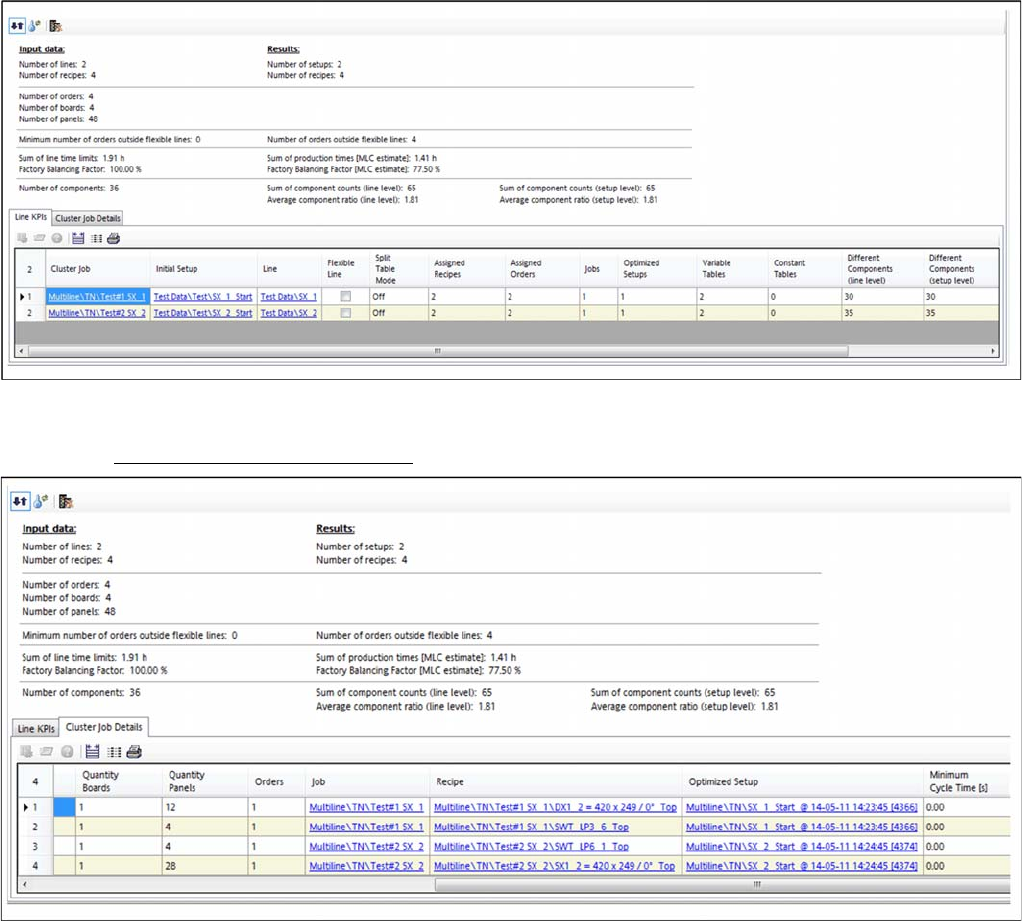

Result: tab – Line KPIs
Result: tab: line KPIs - multi line job optimized
Result: tab – cluster job details
Result: tab: cluster job details - multi line job optimized
How to Perform Multiline Clustering
Cluster Job Optimization Results 5.6.1 Results of the Cluster Job Optimization - Line KPIs
158 SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline
5.6
5.6 Cluster Job Optimization Results
Cluster Job Optimization Results
5.6.1
5.6.1 Results of the Cluster Job Optimization - Line KPIs
Results of the Cluster Job Optimization - Line KPIs
► Go to Run & Results and select the Line KPIs tab.
► Mark a cluster job in the table and select the icon (1).
Tab: line KPIs - showing job optimization results
⇨ The Results Cluster Job dialog box will open.
