9.4 CSV Import – Results View
CSV Import – Results View

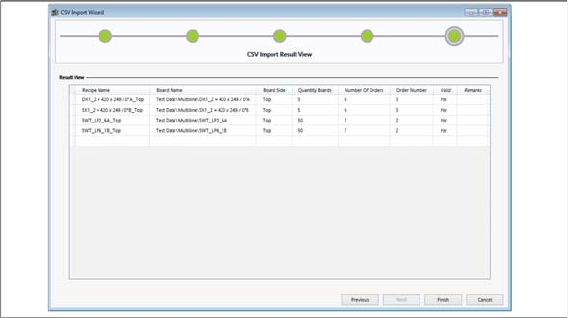

CSV import wizard for CSV data – CSV import results view
Shows an overview of the data to be imported.
The existence of the objects to be imported is checked in the SIPLACE Pro database. Non-existent ob-
jects or those which are not found will be shown in red. An import is possible provided at least one of the
SIPLACE Pro objects has been found.
► Click on the Finish button to import the data in the results view table into SiCluster Multiline.
Tips and Tricks
Creating a Template for Multi Line Jobs
SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline 187
10
10 Tips and Tricks
Tips and Tricks
10.1
10.1 Creating a Template for Multi Line Jobs
Creating a Template for Multi Line Jobs
Create a multi line job with all lines and all settings, including the multiline cluster/optimization settings.
Each time you use SiCluster Multiline, this multi line job will be copied as a template. This means that all
settings are available and you can immediately begin to import the job data with the CSV Import function.
You can then begin the multi line clustering procedure.
10.2
10.2 Optimizing Ideal Cycle Times for all Existing Boards
Optimizing Ideal Cycle Times for all Existing Boards
When introducing SiCluster Multiline, we recommend that you optimize the ideal cycle time for all exist-
ing boards and all lines.
This makes the ideal cycle times available for all recipe-line combinations. When using SiCluster Multi-
line, you can then use the cycle times directly from the clipboard. You will only have to optimize the ideal
cycle times for new boards. The most time needed for optimizing ideal cycle times has been invested
and you can begin the actual mutliline clustering more quickly.
10.3
10.3 Creating a Board as Central Editor for Defining Process Requirements
Creating a Board as Central Editor for Defining Process Require-
ments
Create a board in SIPLACE Pro which is only used to define the process attributes. All the process at-
tributes needed in the production process will be defined here. This board is therefore the central editor
for defining process attributes. The board itself has no placement position, fiducials etc. as it is not in-
tended for placement.
Tips and Tricks
Inserting the Attributes with the SIPLACE Data Maintenance Tool
188 SIPLACE SiCluster Multiline SIPLACE SiCluster Multiline
10.4
10.4 Inserting the Attributes with the SIPLACE Data Maintenance Tool
Inserting the Attributes with the SIPLACE Data Maintenance Tool
The SIPLACE Data Maintenance Tool can be used to quickly import the process requirements and pro-
cess capabilities.
Board process requirements
To avoid having to edit the process requirements separately for each individual board, use the SIPLACE
Data Maintenance Tool.

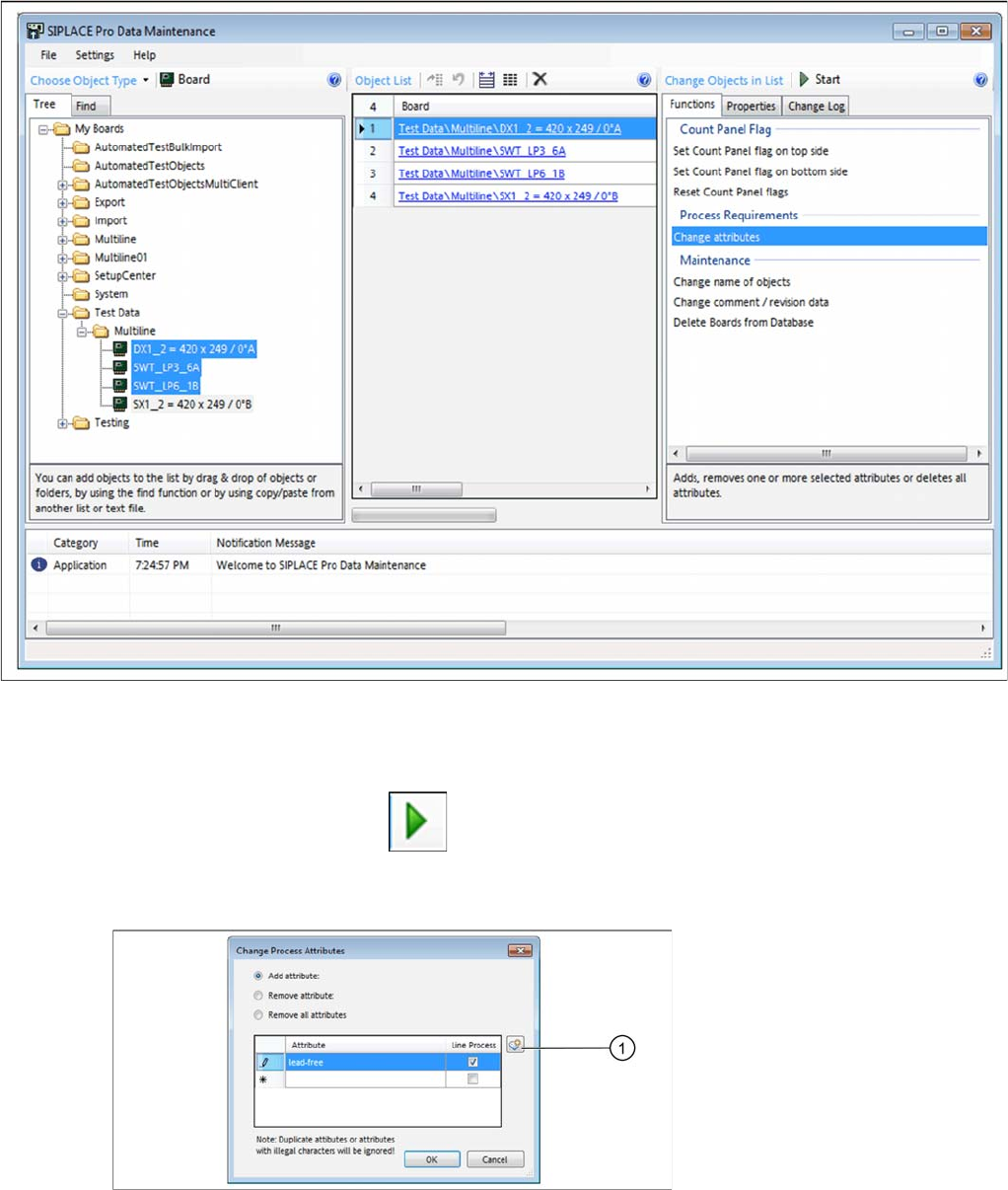

SIPLACE Data Maintenance Tool – boards selected
► Select the boards and add these to the list of objects.
► Go to Process Requirements and select the function Edit Attributes.
► Start the process with Start .
► A dialog box will open and you need to select whether to process the top, bottom or both board sides.
⇨ The Change Process Attributes dialog box will open.
Dialog box: change process attributes
