Safety instructions
3.3 Label positions
The following warning/caution labels are attached to the YAMAHA products to ensure safe and correct use.
Check that the information on each label is clearly legible and comply with the instructions.
n
NOTE
Basically, labels are attached to the positions shown below, although they may differ slightly depending on the
machine model.
Warning/caution labels

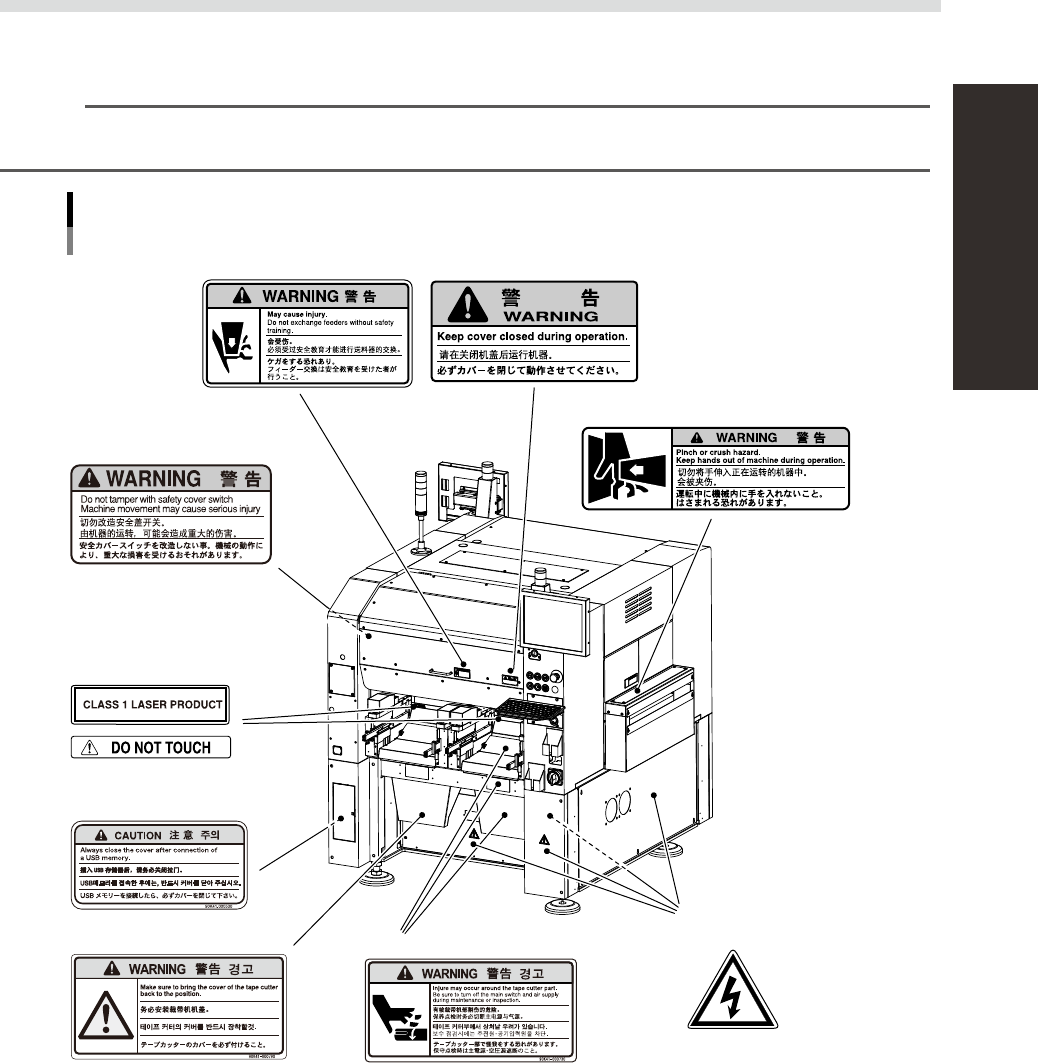

YS12 front side
N Open/close cover
N Open/close cover
N Conveyor opening (right and left sides)
N Open/close cover (safety cover)
inner side
N Feeder setup section
N Panel inner side
N Cutter duct section
N Cutter section
N Lower panels and
panel inner side
93201-L5-00
xx
Safety instructions
n
Label positions
Warning/caution labels

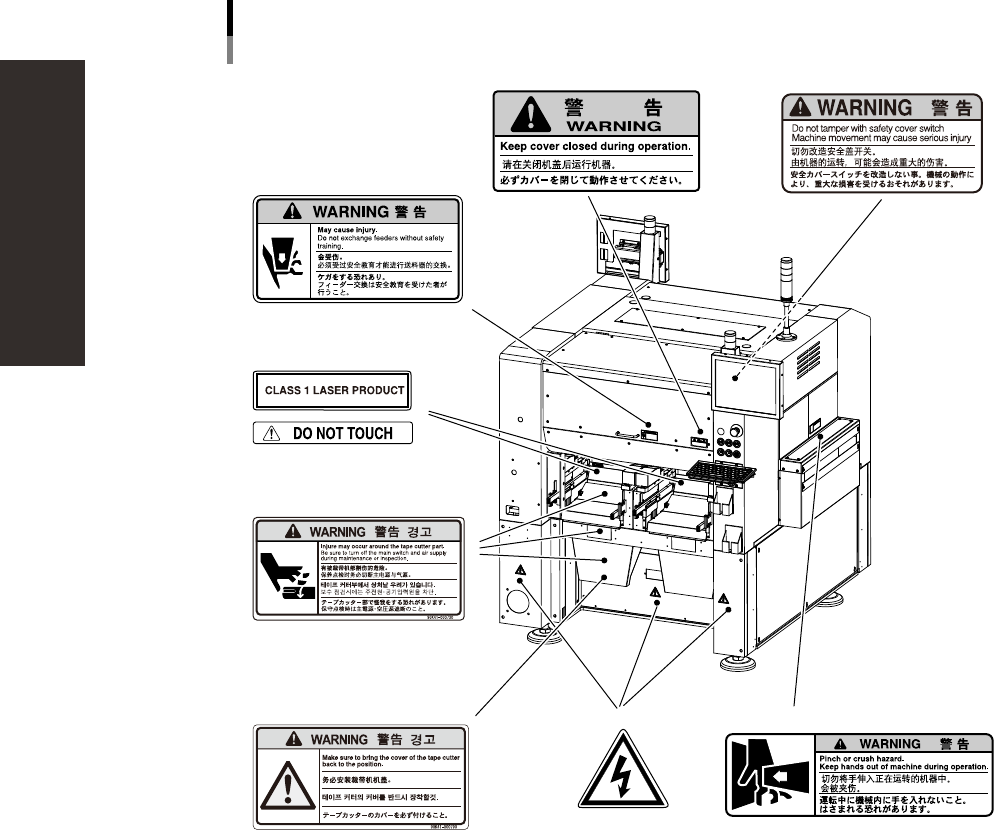

YS12 rear side
N Open/close cover
N Open/close cover
N Open/close cover (safety cover)
N Feeder setup section
N Lower panels
N Conveyor opening
N Cutter section
N Cutter duct section
93202-L5-00
xxi
Safety instructions
n
Label positions
Warning/caution labels

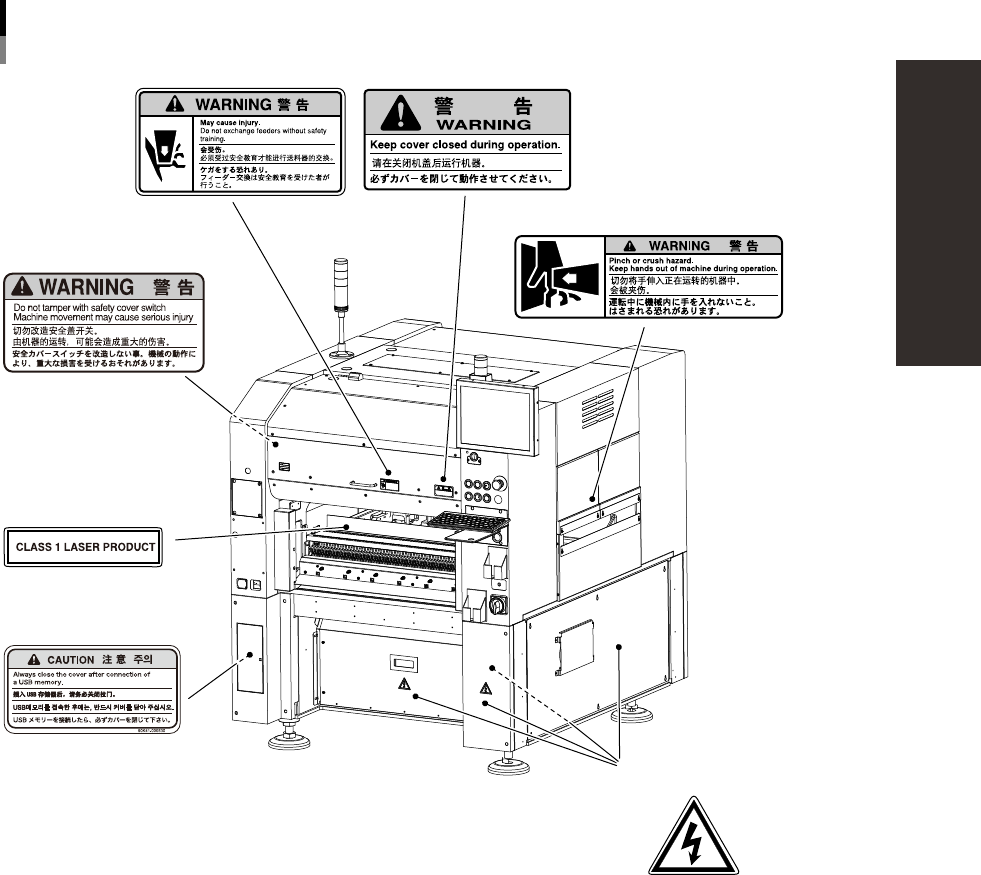

YG12 front side
N Open/close cover
N Open/close cover
N Conveyor opening (right and left sides)
N Open/close cover (safety cover)
inner side
N Feeder setup section
N Panel inner side
N Lower panels and
panel inner side
93201-M5-00
